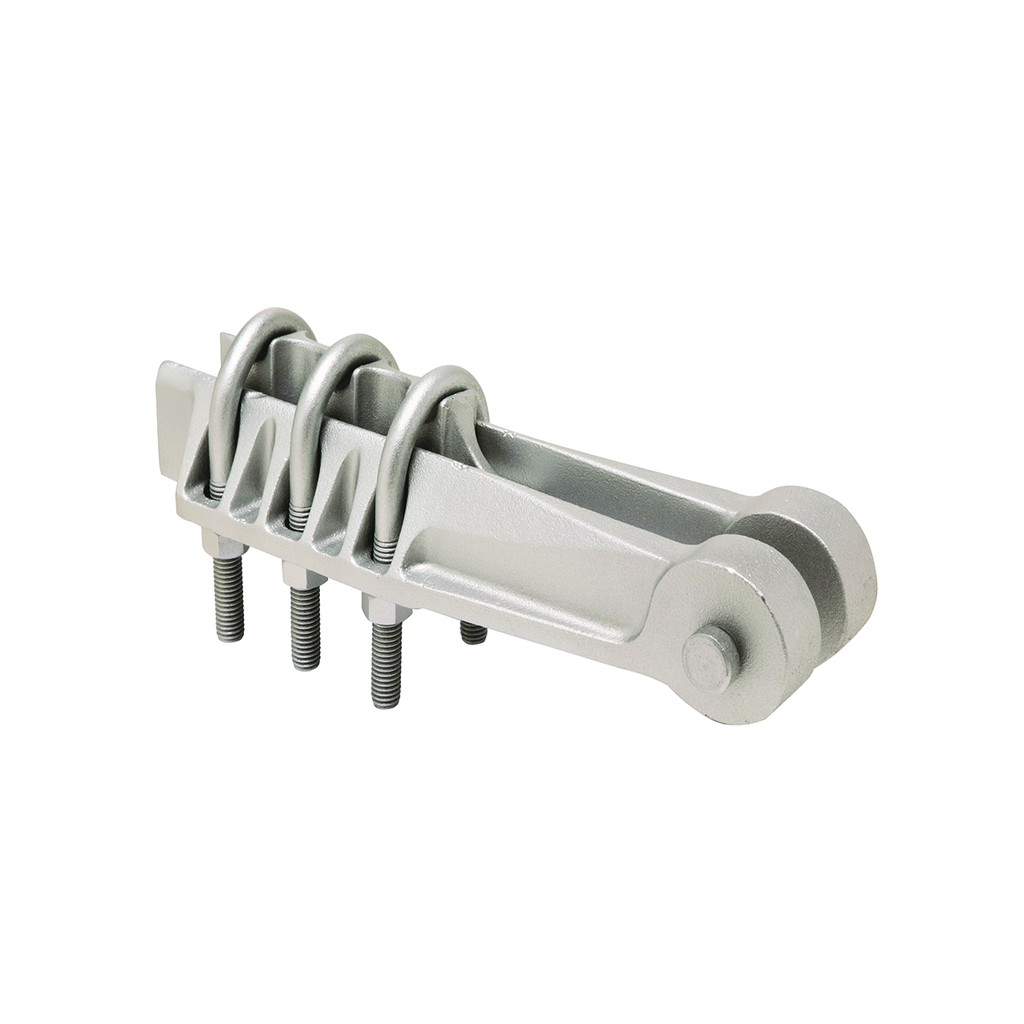

Burndy DUW46 Copper Deadend Clamp
Product image thumbnail 0
Product image thumbnail 1
$711.39/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # DUW46
North Coast Part # 752444

Specifications

General

  • Connector Type: Deadend
  • Material: Copper Alloy
  • Material - Hardware: Galvanized Steel
  • Plated: Y
  • Plating Type: Bright Dipped
  • UPC: 781810013410

Dimensions

  • Dimension - B Length fraction: 5-14/25 in
  • Dimension - B Length inch: 5.56 in
  • Dimension - Height fraction: 3-33/50 in
  • Dimension - Height inch: 3.66 in
  • Dimension - L Length Overall mm: 294 mm
  • Dimension - Length Overall inch: 11.59 in
  • Dimension - Width fraction: 3-81/89 in
  • Dimension - Width inch: 3.91 in
  • Dimension - Width mm: 99 mm

Conductor Related

  • Conductor - Copper Str Size: 1000 kcmil;1250 kcmil;1300 kcmil;1500 kcmil
  • Conductor - Copper Str Size Range: 1000 kcmil-1500 kcmil

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: CM
  • UL Listed: No

Logistics

  • Minimum Pack Quantity: 1

Overview

UPC 78181001341
GTiN 00781810013410
Family Brand Name Hubbell
Length 11.59 in
Width 3.91 in
Material Copper Alloy
Conductor Size 1000 MCM
Height 3.66 in
Connection Type Deadend
Plating Type Bright Dipped
Plated? Yes
CSA No
