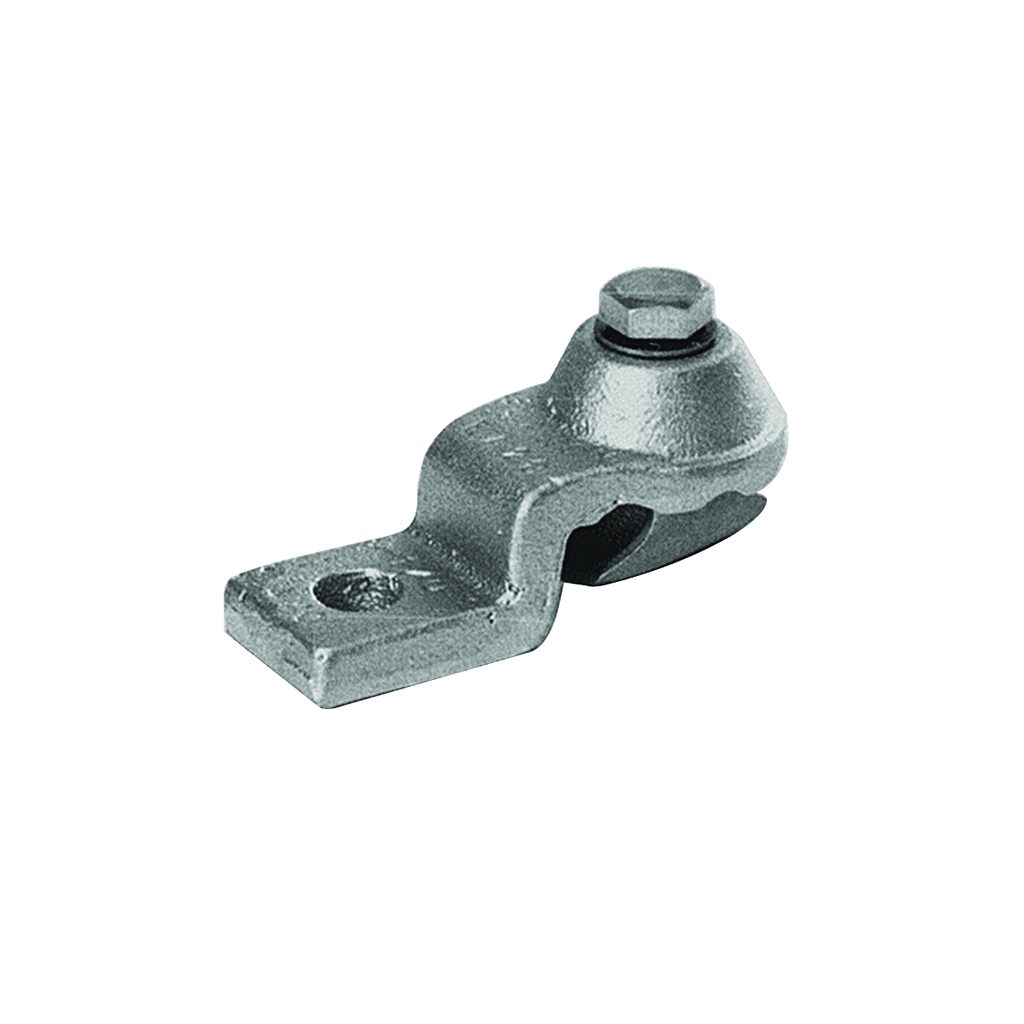

BUR EA282N 1/0STR -4/0 STR CU COND
Product image thumbnail 0
Product image thumbnail 1
$175.14/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # EA282N
North Coast Part # 423060

Specifications

General

  • Connector Type: Terminal
  • Installation Torque Recommended in-lb: 250 LBS/in
  • Material: Copper
  • Physical Attribute - Number of Clamping Elements: 1
  • Physical Attribute - Number of Holes: 2
  • Physical Attribute - Number of Screws: 1
  • Physical Attribute - Screw Type: Hexagonal Bolt
  • Plated: N
  • Plating Type: Unplated
  • Temperature Rating: 194
  • Trade Name: VERSILUG™
  • Type: Bolted Lugs & Terminals
  • UPC: 781810326558
  • UPC 12 Digit: 7818103265588

Dimensions

  • Dimension - B Length fraction: 1-11/25 in
  • Dimension - B Length inch: 1.44 in
  • Dimension - Height fraction: 1-3/4
  • Dimension - Height inch: 1.75 in
  • Dimension - Hole Size fraction: 9/16
  • Dimension - Hole Size inch: 0.56 in
  • Dimension - Hole Size mm: 14 mm
  • Dimension - L Length Overall mm: 130 mm
  • Dimension - Length Overall inch: 5.13 in
  • Dimension - N inch: 0.63 in
  • Dimension - Pad Width fraction: 1-1/16 in
  • Dimension - Pad Width inch: 1.06 in
  • Dimension - Stud Size inch: 1/2

Electrical Ratings

  • Rating - Minimum Voltage: 600

Conductor Related

  • Conductor - Copper Str Size: 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
  • Conductor - Copper Str Size Range: 1/0 -4/0 AWG
  • Conductor Type: CU C Str-Size
  • Number Of Conductors: 1

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Industry Standard(s): UL468A-468B
  • Standards - Industry Standards Met: UL468A-468B
  • Standards - RoHS Compliance Status: EX
  • UL Listed: Yes

Logistics

  • Packaging Type: Box

Overview

UPC 78181032655
GTiN 00781810326558
Family Brand Name Hubbell
Length 5.13 in
Hole Size 14 mm
Material Copper
Conductor Size 2/0 AWG
Height 1.75 in
Connection Type Terminal
Plating Type Unplated
Conductor Type CU C Str-Size
Plated? No
CSA No
