BUR EA2C 8SOL-2STR CU COND
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$75.05/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # EA2C
North Coast Part # 333729

Features

  • Compact, High Copper Alloy Terminal For Joining A Wide Range Of Cable To Equipment Pads Or Bar, Clamping Element Adjustable To Several Angles, One-Wrench Installation, Dimension T: 1/4 IN, Dimension D: 1-1/16 IN, Dimension K: 7/16 IN, Dimension N: 13/32 IN, Tongue Width: 13/16 IN, Installation Torque: 150 IN-LB, Stud Size: 3/8 IN, Height: 1-3/8 IN, Length: 2-1/2 IN

Specifications

  • Buy American Compliant: Yes
  • Conductor - Copper Solid Size: 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
  • Conductor - Copper Solid Size Range: 8 AWG-2 AWG
  • Conductor - Copper Str Size: 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
  • Conductor - Copper Str Size Range: 8 AWG-2 AWG
  • Country of Origin: US
  • Dimension - B Length fraction: 1-10/77 in
  • Dimension - B Length inch: 1.13 in
  • Dimension - Height fraction: 1-3/8
  • Dimension - Height inch: 1.38 in
  • Dimension - Hole Size fraction: 7/16
  • Dimension - Hole Size inch: 0.44 in
  • Dimension - Hole Size mm: 11 mm
  • Dimension - L Length Overall mm: 64 mm
  • Dimension - Length Overall inch: 2.50 in
  • Dimension - N inch: 0.41 in
  • Dimension - Pad Width fraction: 13/16 in
  • Dimension - Pad Width inch: 0.81 in
  • Dimension - Stud Size inch: 3/8
  • Each - Height: 1.38 in
  • Each - Length: 2.5 in
  • Each - Width: 0.81 in
  • Industry Standard(s): UL 486A-486B
  • Installation Torque Recommended in-lb: 150 LBS/in
  • Physical Attribute - Number of Clamping Elements: 1
  • Physical Attribute - Number of Holes: 1
  • Physical Attribute - Number of Screws: 1
  • Physical Attribute - Screw Type: Hexagonal Bolt
  • Plated: N
  • Plating Type: Unplated
  • Product Type: Mechanical
  • Rating - Minimum Voltage: 600
  • Show Add To ProjectList: Yes
  • Standards - Industry Standards Met: UL 486A-486B
  • Standards - RoHS Compliance Status: EX
  • Trade Name: VERSILUG™
  • Application: For Joining A Wide Range Of Copper Cable To Equipment Pads Or Bars
  • Number of Conductors: 1
  • Number of Conductors/Ports (Main/Primary): 1
  • Special Features: Features: Compact, High Copper Alloy Terminal For Joining A Wide Range Of Cable To Equipment Pads Or Bar, Clamping Element Adjustable To Several Angles, One-Wrench Installation, Dimension T: 1/4 IN, Dimension D: 1-1/16 IN, Dimension K: 7/16 IN, Dimension N: 13/32 IN, Tongue Width: 13/16 IN, Installation Torque: 150 IN-LB, Stud Size: 3/8 IN, Height: 1-3/8 IN, Length: 2-1/2 IN
  • Standard: UL 486A-486B
  • Sub Brand: VERSILUG
  • Temperature Rating: 194
  • Type: Bolted Lugs & Terminals

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181032620

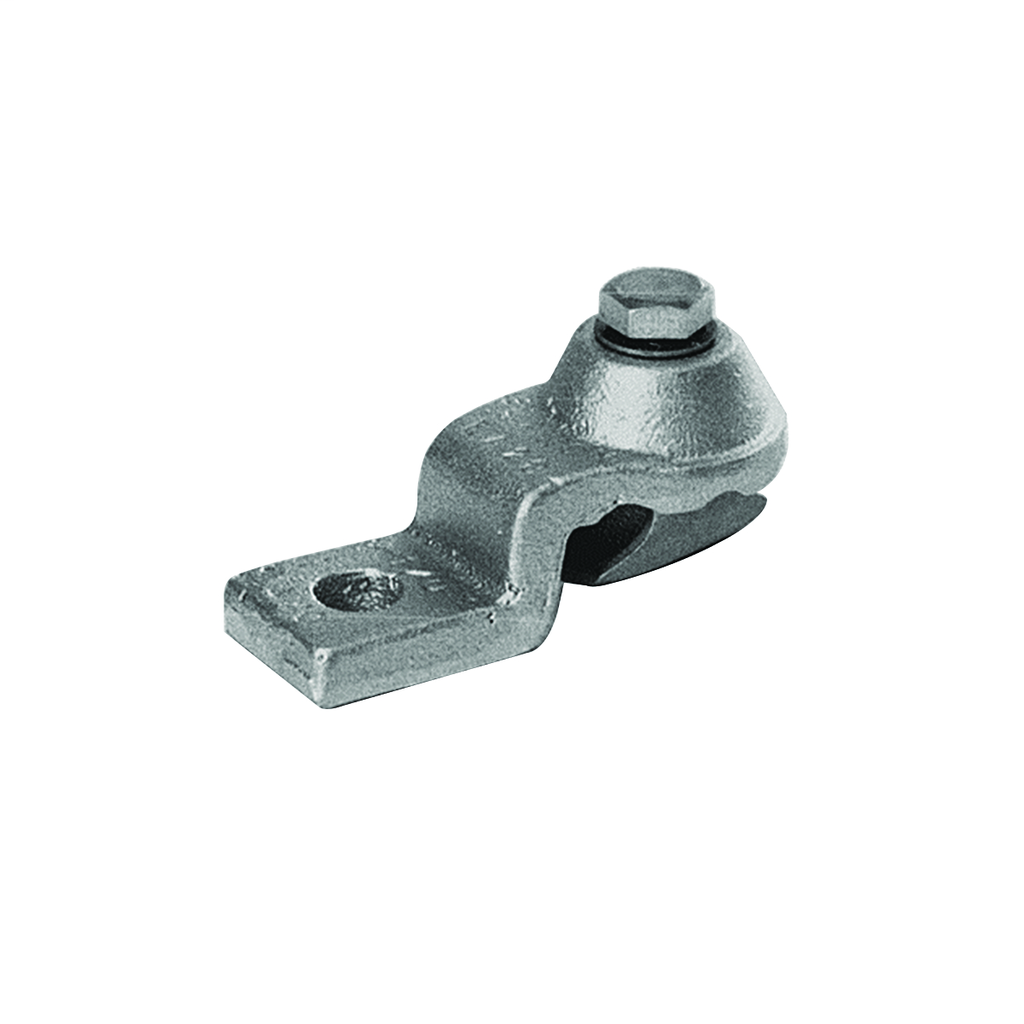

Item Long Description VERSILUG for Copper Cable; Adjustable Clamping Element to Allow a Variety of Angles; Accommodates: #8 Sol - #2 Str; 13/16" Width; 2-1/2" Length.
GTiN 00781810326206
Type Bolted Lugs & Terminals
Material Copper
Number of Conductors 1
Applications For Joining A Wide Range Of Copper Cable To Equipment Pads Or Bars
Temperature Rating 194
Family Brand Name Burndy
Sub Brand VERSILUG
Length 2.50 in
Hole Size 11 mm
Conductor Size 2 AWG
Height 1.38 in
Connection Type Terminal
Plating Type Unplated
Conductor Type CU C Str-Size
Plated? No
CSA No
