BUR EQC632C 8-2 CU XFMR CONN
$19.76/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # EQC632C
North Coast Part # 63247

Overview

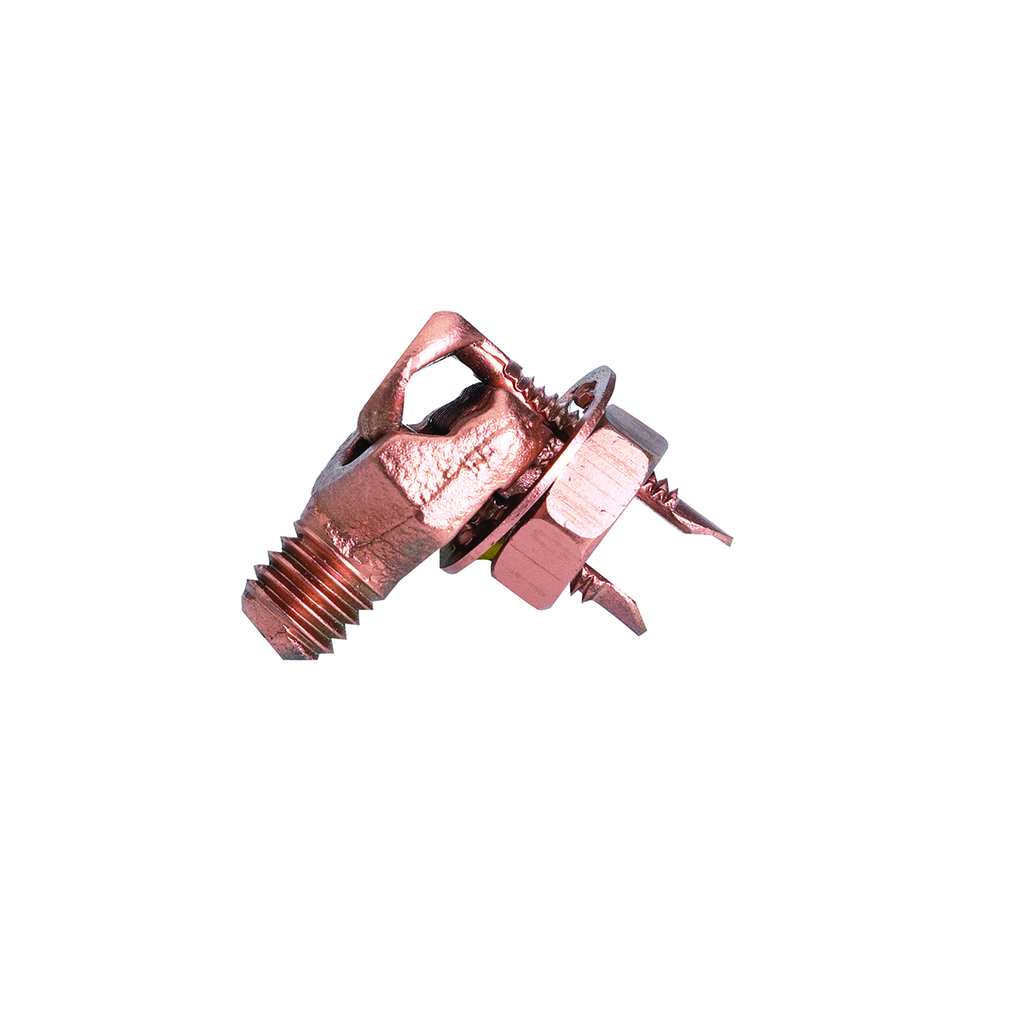

Copper transformer ground connector. Fits all standard EEI-NEMA distribution transformers as tank grounding terminal.

Specifications

General

  • Installation Torque Recommended in-lb: 275 LBS/in
  • Material: Copper Alloy
  • Material - Hardware: DURIUMâ„¢ Silicon Bronze
  • Physical Attribute - Screw Type: Hexagonal Bolt
  • Plating Type: Tin - Bright
  • UPC: 781810256350
  • UPC 12 Digit: 7818102563500

Dimensions

  • Dimension - Bolt Size fraction: 1/2
  • Dimension - Height inch: 1.51 in
  • Dimension - L Length Overall mm: 29 mm
  • Dimension - Length Overall inch: 1.13 in
  • Dimension - Stud Size inch: 21/32
  • Dimension - Threads per inch: 13
  • Dimension - Width inch: 0.38 in
  • Dimension - Width mm: 10 mm

Conductor Related

  • Conductor - Copper Solid Size: 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
  • Conductor - Copper Solid Size Range: 8 AWG-2 AWG
  • Conductor - Copper Str Size: 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
  • Conductor - Copper Str Size Range: 8 AWG-2 AWG

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - UL Listed Direct Burial: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Industry Standard(s): RUS
  • Standards - RoHS Compliance Status: EX
  • UL Listed: No

Overview

UPC 78181025635
GTiN 00781810256350
Type EQC632C
Applications For Used To Fit All Standard EEI-NEMA Distribution Transformers As A Tank Grounding Terminal
Family Brand Name Burndy
Sub Brand MECHANICAL CONNECTOR
Length 1.13 in
Material Copper Alloy
Height 1.51 in
