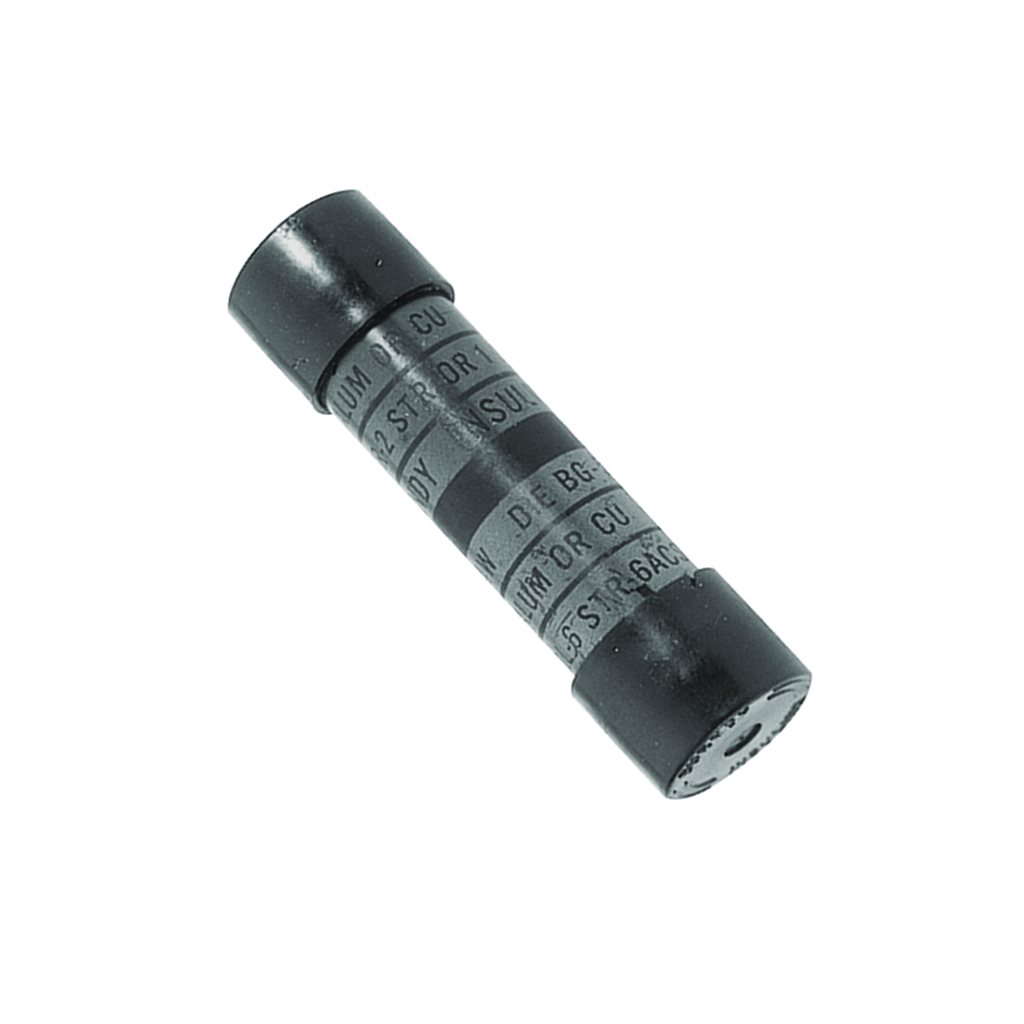

BUR ES6W6W 8-8 AL/CU INS SE CONN
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2.54/ea
Usually ships within 11 to 17 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # ES6W6W
North Coast Part # 266745

Features

  • Pre-Insulated Service Entrance Compression Connector Installed With OH25, OUR840 And MD6 HYTOOL As Well As Y35 And Y750 HYPRESS Tools, Polyethylene Caps Prevent Dirt From Accumulating In Barrel, Grip Cable For Easy Two-Hand Installation, And Seal Out Moisture, Aluminum Connector Is Anchored To Jacket, Assuring The Connector Is Under The Die When Crimping, Nylon Jacket Insulates Connector Electrically And Protects Against Water And Weather, Superior Color Coding, Pre-Filled With PENETROX Joint Compound, Die Index: BG Element A, Conductor Type: Side A And Side B: Aluminum, Copper, Tools, Die Set Catalog Number, And (number Of Crimps): HYTOOL: OH25 Tool, (1), MD6, MD7 Tool, (3), MD6, MD7 Tool, W-BG Die, (1), OUR840 Tool, X-NBG Die, (1), HYPRESS: Y35 Tool, U-BG Die, (1), Y750 Tool, Color Code: Green (Side A And B)

Specifications

  • Buy American Compliant: Yes
  • Color Code - Side A: Green
  • Color Code - Side B: Green
  • Conductor - AL Str Size A Range: 8 AWG-6 AWG
  • Conductor - AL Str Size B Range: 8 AWG-6 AWG
  • Conductor - Copper Solid Size A: 6 AWG
  • Conductor - Copper Solid Size A Range: 6 AWG
  • Conductor - Copper Solid Size B: 8 AWG;7 AWG;6 AWG
  • Conductor - Copper Solid Size B Range: 6 AWG
  • Conductor - Copper Str Size A Range: 8 AWG-6 AWG
  • Conductor - Copper Str Size B Range: 6 AWG
  • Country of Origin: US
  • Dimension - L Length Overall mm: 70 mm
  • Dimension - Length Overall inch: 2.75 in
  • Dimension - Outside Diameter inch: .75 in
  • Each - Height: 0.74 in
  • Each - Length: 2.78 in
  • Each - Width: 0.74 in
  • Insulation Type: Nylon
  • Plated: Y
  • Plating Type: Tin - Hot Dipped
  • Prefilled Oxide Inhibitor: Y
  • Product Type: Compression
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: CM
  • Trade Name: INSULINKā„¢
  • Application: For Insulated Combinations Of Copper, Aluminum, ACSR Compressed Conductors And In Overhead Distribution
  • Insulation: Y
  • Special Features: Features: Pre-Insulated Service Entrance Compression Connector Installed With OH25, OUR840 And MD6 HYTOOL As Well As Y35 And Y750 HYPRESS Tools, Polyethylene Caps Prevent Dirt From Accumulating In Barrel, Grip Cable For Easy Two-Hand Installation, And Seal Out Moisture, Aluminum Connector Is Anchored To Jacket, Assuring The Connector Is Under The Die When Crimping, Nylon Jacket Insulates Connector Electrically And Protects Against Water And Weather, Superior Color Coding, Pre-Filled With PENETROX Joint Compound, Die Index: BG Element A, Conductor Type: Side A And Side B: Aluminum, Copper, Tools, Die Set Catalog Number, And (number Of Crimps): HYTOOL: OH25 Tool, (1), MD6, MD7 Tool, (3), MD6, MD7 Tool, W-BG Die, (1), OUR840 Tool, X-NBG Die, (1), HYPRESS: Y35 Tool, U-BG Die, (1), Y750 Tool, Color Code: Green (Side A And B)
  • Sub Brand: INSULINK
  • Type: Insulated Service Entrance Connectors
  • IGS 3D Model Asset Reference URL 3: https://hubbellcdn.com/igs/ES6W6W_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 1: https://hubbellcdn.com/PDF3DFile/ES6W6W_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 2: https://hubbellcdn.com/step3dfile/ES6W6W_MODEL-STEP.zip

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181014290
Item Long Description Insulated AL service entrance compression sleeve for combinations of insulated CU, AL and ACSR conductors, Color Code: Green (Side A), Green (Side B).
GTiN 00781810142905
Type Insulated Service Entrance Connectors
Material Aluminum
Applications For Insulated Combinations Of Copper, Aluminum, ACSR Compressed Conductors And In Overhead Distribution
Family Brand Name Burndy
Sub Brand INSULINK
Length 2.75 in
Insulation Type Nylon
Plating Type Tin - Hot Dipped
Plated? Yes
CSA No
