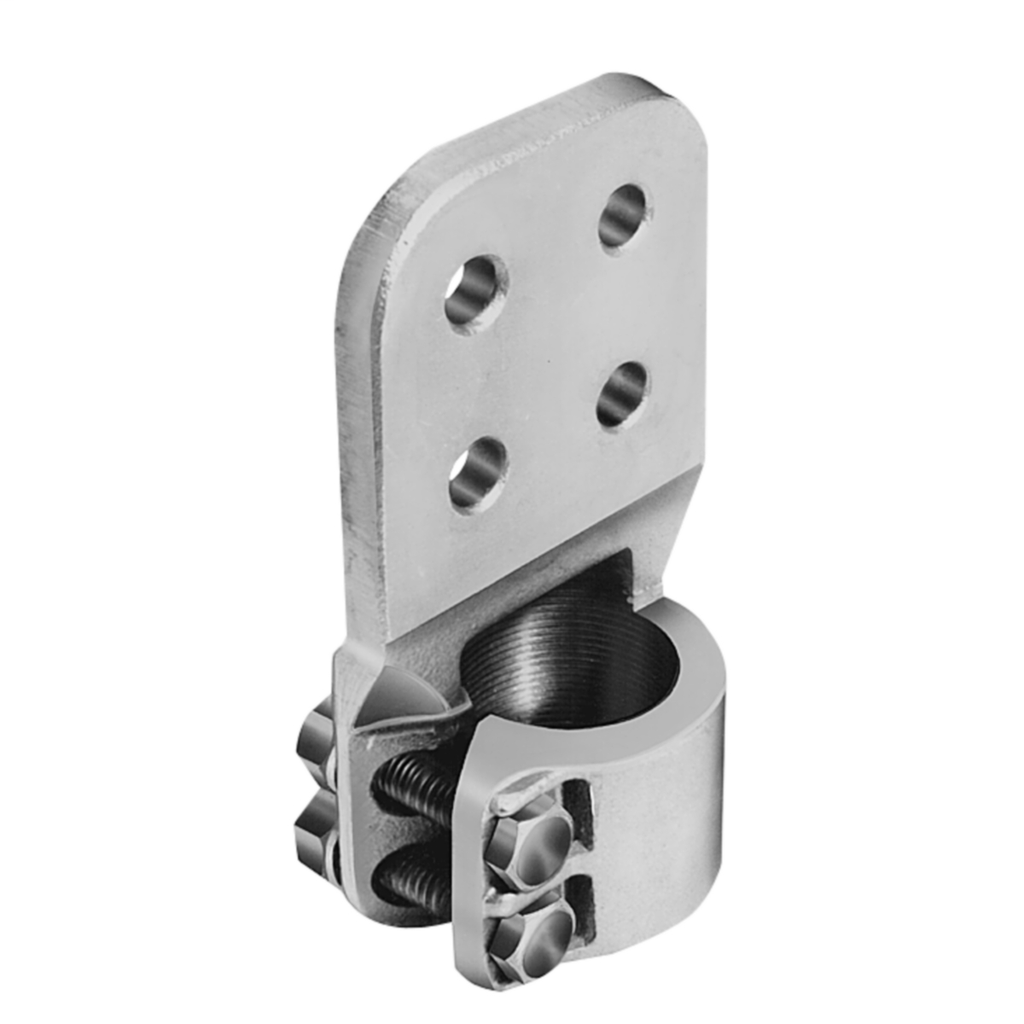

BUR FD655D6 STUD CONNECTOR, 6.86 IN
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$148.22/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # FD655D6
North Coast Part # 67356

Features

  • High Copper Alloy Stud Connector Allows Bolting Cable And Tubing Terminals To Equipment Studs, Hex Head Captured Bolts Provide One-Wrench Installation, One Pad Contact Surface Is On Centerline Of Stud, Pad Is Finished On Both Sides, All Pads Are Four Hole NEMA Drilled, Installation Torque: 240 IN-LB, Pad Configuration: Straight, Stud Size: 1-1/8-12, Stud Clamping Hardware: 3/8-16

Specifications

  • Buy American Compliant: Yes
  • Conductor - Connection Combination: Stud to Pad
  • Country of Origin: US
  • Dimension - B Length fraction: 1-3/4 in
  • Dimension - B Length inch: 1.75 in
  • Dimension - Bolt Size fraction: 3/8
  • Dimension - D inch: 4.00 in
  • Dimension - L Length Overall mm: 174 mm
  • Dimension - Length Overall inch: 6.86 in
  • Dimension - N inch: 1.12 in
  • Dimension - Pad Width inch: 4.00 in
  • Dimension - Pin Diameter fraction: 1-1/8 in
  • Dimension - Pin Diameter inch: 1.125 in
  • Dimension - Thread Size: 3/8-12
  • Dimension - Threads per inch: 12
  • Each - Height: 1.75 in
  • Each - Length: 6.86 in
  • Each - Width: 4.00 in
  • Physical Attribute - Pad Configuration: 4x4 - 4 holes
  • Plated: N
  • Plating Type: Unplated
  • Product Type: Mechanical
  • Rating - KVA: 230 kV
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: EX
  • Amperage Rating: 1300 A
  • Application: Substation
  • Special Features: Features: High Copper Alloy Stud Connector Allows Bolting Cable And Tubing Terminals To Equipment Studs, Hex Head Captured Bolts Provide One-Wrench Installation, One Pad Contact Surface Is On Centerline Of Stud, Pad Is Finished On Both Sides, All Pads Are Four Hole NEMA Drilled, Installation Torque: 240 IN-LB, Pad Configuration: Straight, Stud Size: 1-1/8-12, Stud Clamping Hardware: 3/8-16
  • Sub Brand: STUD CONNECTOR
  • Type: Studs
  • IGS 3D Model Asset Reference URL 3: https://hubbellcdn.com/igs/FD655D6_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 1: https://hubbellcdn.com/PDF3DFile/FD655D6_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 2: https://hubbellcdn.com/step3dfile/FD655D6_MODEL-STEP.zip

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181000360
Item Long Description Cast Cu Alloy Stud Connector, 1300 Amps Indoor Nom, 0.56" Hole Size, 1.75" Spacing, Bolted, Stud to Flat Bar, 1-1/8"- 12 Stud Dia, 4 NEMA Pad Holes.
GTiN 00781810003602
Size 6.86 IN Overall Length X 4 IN Pad Length X 4 IN Pad Width X 3/8 IN Pad Thickness X 1.75 IN Dimension B X 1.12 IN Dimension N
Type Studs
Material Copper Alloy
Applications Substation
Family Brand Name Burndy
Sub Brand STUD CONNECTOR
Length 6.86 in
Connection Type Stud Connector
Plating Type Unplated
Plated? No
Amperage 1300 Amp
CSA No
