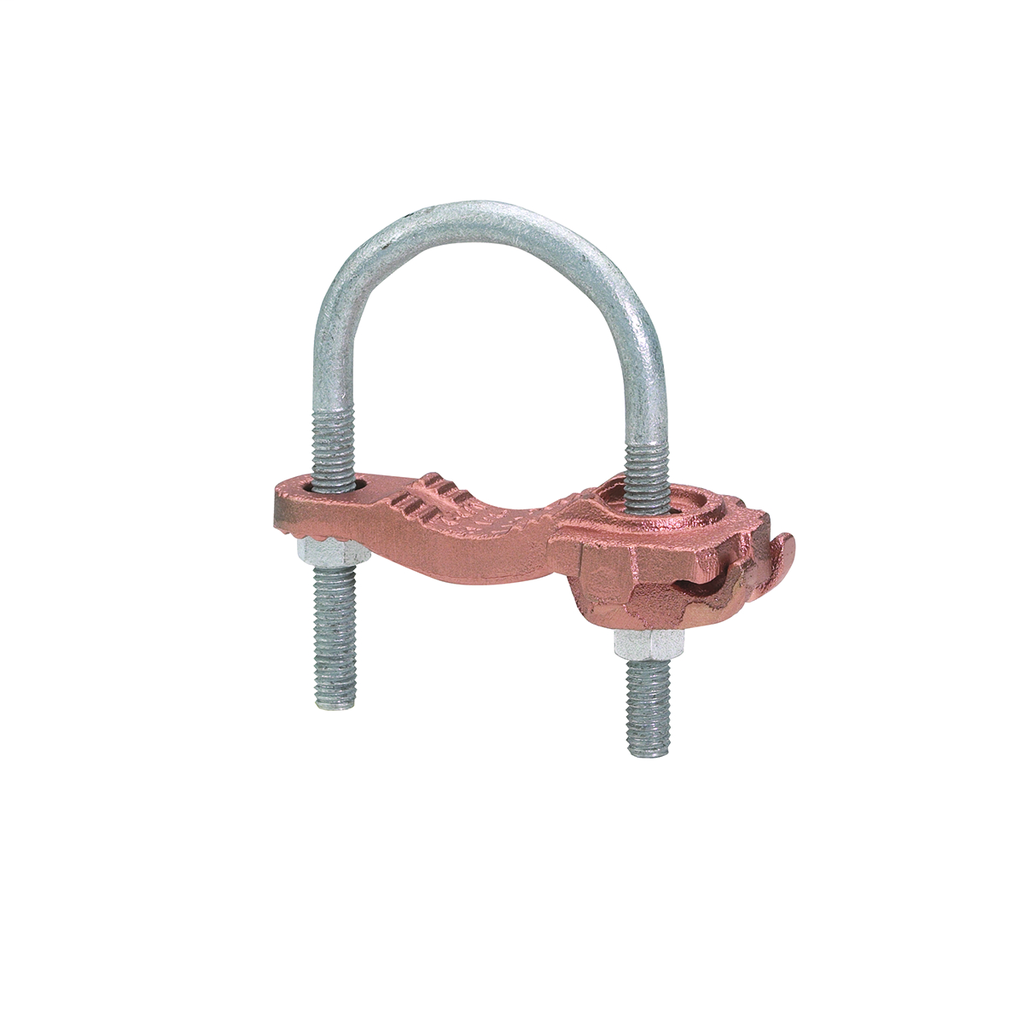

BUR GAR3902 4-4/0, 1/2-1 IPS
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # GAR3902
North Coast Part # 67482


  • High-Conductivity Copper Ground Connector For Connecting A Small To Medium Range Copper Ground Conductor To Water Pipe As Well As Structural And Reinforcing Rod Shapes, Cable Clamp Swivels At 90 DEG, Permits Parallel Grounding Of One Pipe Or A 90 DEG Cable Run For Grounding Several Parallel Pipes, One-Wrench Installation, Simplified Installation, Long Lasting Corrosion Resistance And Acceptable For Direct Burial In Earth Or Concrete, UL467 Listed, Provides Quality Assurance To Recognized Industry NEC Standards From An Independent Party, Ground Rod Size: 1/2 - 1 IN, Tube (ips) Size: 1/2 - 1 IN, Width: 3-1/4 IN, Installation Torque: 240 IN-LB, Height: 3.5 IN


  • Conductor - Copper Solid Size Range: 4 AWG - 4/0 AWG
  • Conductor - Copper Str Size: 4;3;2;1;1/0;2/0;3/0;4/0
  • Conductor - Copper Str Size Range: 4-4/0
  • Conductor - Copper Tube Std Size: 1/2;1
  • Conductor - Copper Tube Std Size Range: 1/2-1
  • Conductor - Pipe or Round Tube Size: 0.5 - 1 in
  • Country of Origin: US
  • Dimension - B Length inch: 1.75 in
  • Dimension - Height inch: 3.50 in
  • Dimension - Length Overall inch: 1.75 in
  • Dimension - Outside Diameter inch: 1.32 in
  • Dimension - Width inch: 3.25 in
  • Dimension - Width mm: 83 mm
  • Each - Height: 3.5 in
  • Each - Length: 3.5 in
  • Each - Width: 3.25 in
  • Industry Standard(s): UL467
  • Installation Torque Recommended in-lb: 200 LBS/in
  • Plated: N
  • Plating Type: Unplated
  • Product Type: Mechanical
  • Show Add To ProjectList: Yes
  • Standards - Industry Standards Met: UL467
  • Standards - RoHS Compliance Status: CM
  • U Bolt Type: 1031G


  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Listed Direct Burial: Yes
  • UL Recognized: No
  • EU RoHS Indicator: Yes


UPC 78181023401
Item Long Description Mechanical Grounding Connector, Conductor to Water Pipe, 4-4/0 AWG, 1/2"-1" Pipe, 3/8" Stud.
GTiN 00781810234013
Finish Galvanized
Type GAR3902
Material Copper Alloy
Applications For Connecting A Small To Medium Range Copper Ground Conductor To Water Pipe As Well As Structural And Reinforcing Rod Shapes, Direct Burial Cables
Bolt Size 3/8-16
Family Brand Name Burndy
Length 1.75 in
Width 3.25 in
Height 3.50 in
Plating Type Unplated
Plated? No
