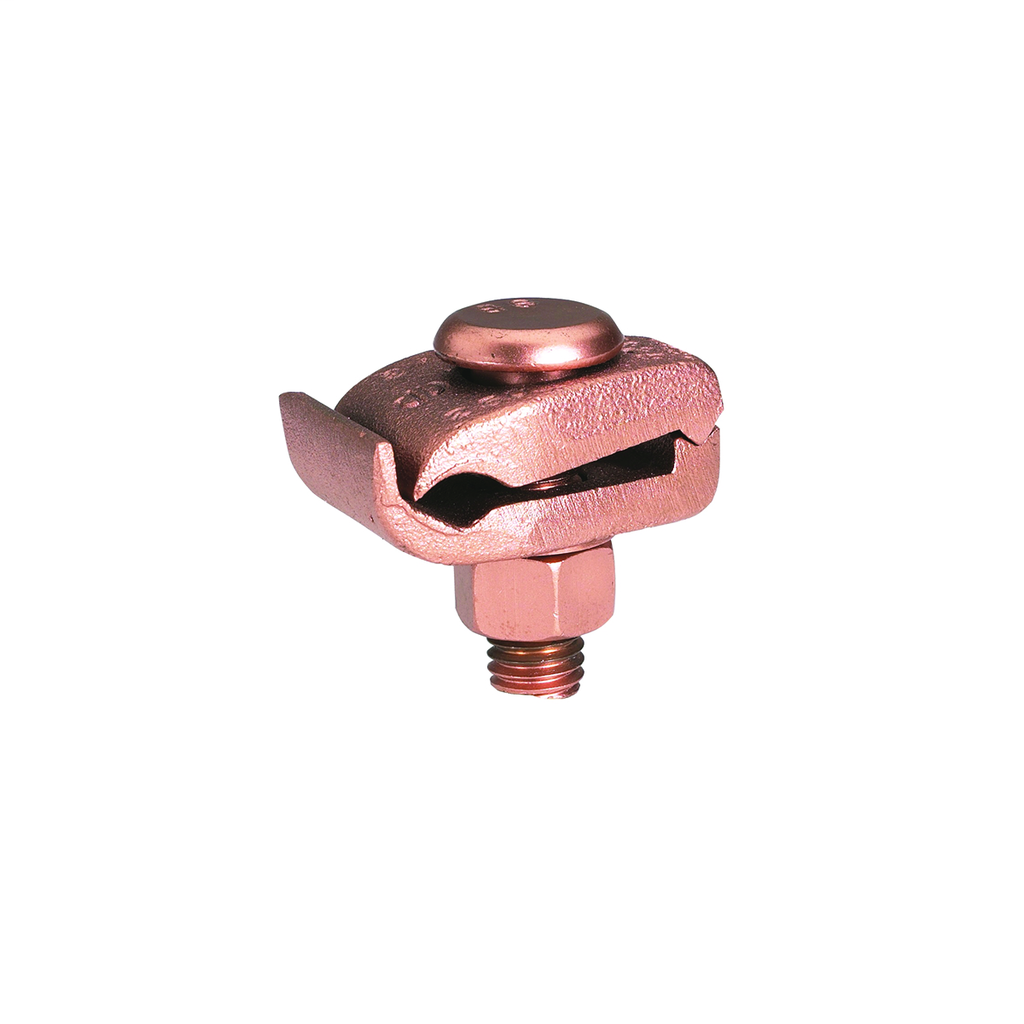

BUR GB29 2/0-250 CU-BAR 1 PC GRD
Product image thumbnail 0
Product image thumbnail 1
$51.95/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # GB29
North Coast Part # 69223

Specifications

General

  • Application: For Copper Cable To Bar, Direct Burial Cable
  • Installation Torque Recommended in-lb: 480 lb-in
  • Material: Copper Alloy
  • Material Type - Screw: DURIUMâ„¢ Silicon Bronze
  • Physical Attribute - Screw Type: Hexagonal Bolt
  • Plated: N
  • Plating Type: Unplated
  • Sub Brand: MECHANICAL CONNECTOR
  • Type: GB
  • UPC: 781810231272
  • UPC 12 Digit: 7818102312722

Dimensions

  • Dimension - B Length inch: 1.25 in
  • Dimension - Height inch: 2.32 in
  • Dimension - L Length Overall mm: 32 mm
  • Dimension - Length Overall inch: 1.25 in
  • Dimension - Width fraction: 1-7/8 in
  • Dimension - Width inch: 1.88 in

Conductor Related

  • Conductor - Copper Solid Size: 2/0 AWG;3/0 AWG;4/0 AWG
  • Conductor - Copper Solid Size Range: 2/0 AWG - 250 kcmil
  • Conductor - Copper Str Size: 2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
  • Conductor - Copper Str Size Range: 2/0 AWG-250 kcmil

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Listed Direct Burial: Yes
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Industry Standard(s): UL467
  • Standards - Industry Standards Met: UL467
  • Standards - RoHS Compliance Status: EX
  • UL Listed: Yes

Logistics

  • Minimum Pack Quantity: 1

Overview

UPC 78181023127
GTiN 00781810231272
Finish Untreated
Type Mechanical
Material High Copper Alloy
Conductor Size 2/0 AWG Solid - 250 kcmil
Applications For Copper Cable to Bar, Direct Burial Cable
Mounting Type 1/2 in
Bolt Size 1/2 IN
Family Brand Name Burndy
Blade Dimensions 2 in W x 2 in H
Sub Brand MECHANICAL CONNECTOR
Length 1.25 in
Width 1.88 in
Height 2.32 in
Plating Type Unplated
Plated? No
CSA No
