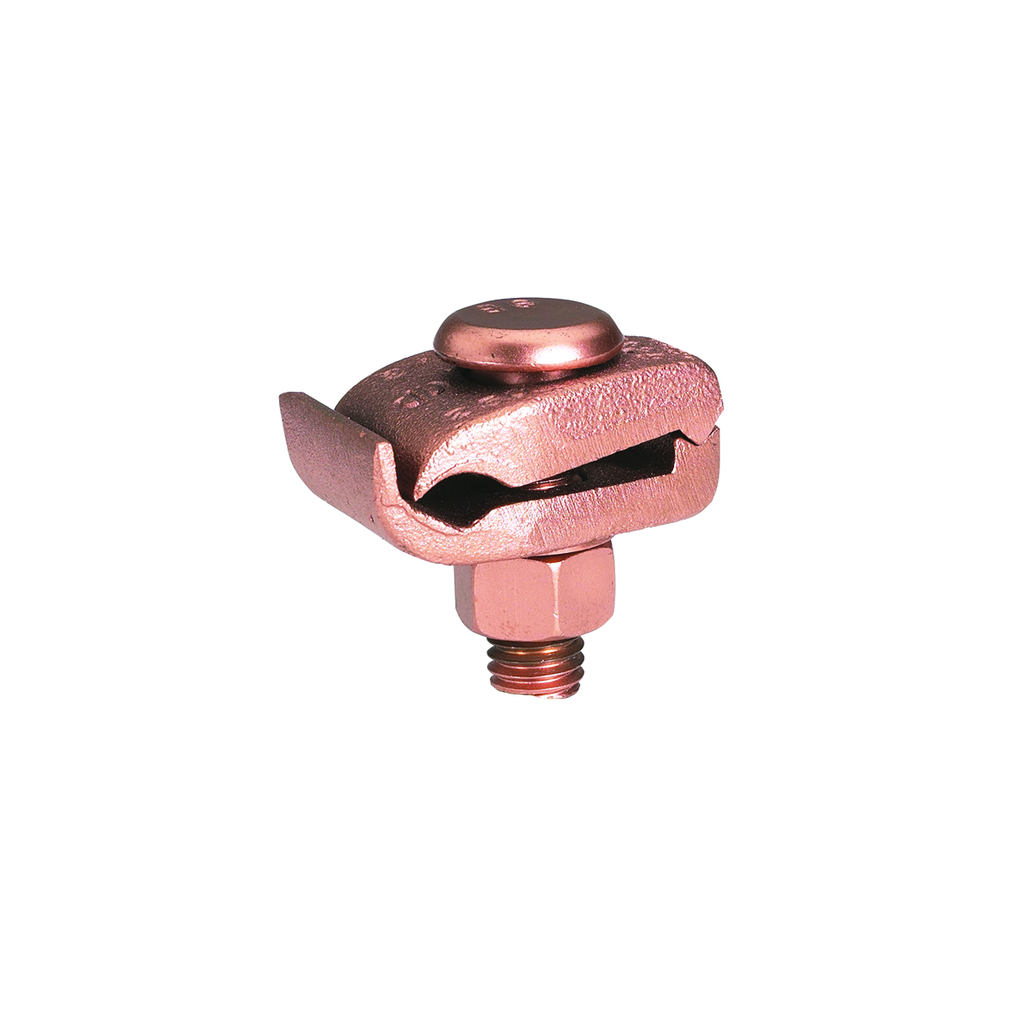

BUR GB39 GROUND CONN CABLE TO BAR S
Product image thumbnail 0
Product image thumbnail 1
$115.94/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # GB39
North Coast Part # 69338

Specifications

General

  • Installation Torque Recommended in-lb: 660 lb-in
  • Material: Copper Alloy
  • Material Type - Screw: DURIUMâ„¢ Silicon Bronze
  • Physical Attribute - Screw Type: Oval Shank Bolt
  • Plated: N
  • Plating Type: Unplated
  • UPC: 781810231357
  • UPC 12 Digit: 7818102313577

Dimensions

  • Dimension - B Length inch: 1.75 in
  • Dimension - Height inch: 3.28 in
  • Dimension - L Length Overall mm: 45 mm
  • Dimension - Length Overall inch: 1.75 in
  • Dimension - Width fraction: 2-3/4 in
  • Dimension - Width inch: 2.75 in

Conductor Related

  • Conductor - Copper Solid Size Range: 550 KCMIL - 750 KCMIL
  • Conductor - Copper Str Size: 550 kcmil;600 kcmil;700 kcmil;750 kcmil
  • Conductor - Copper Str Size Range: 550 kcmil-750 kcmil

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Listed Direct Burial: Yes
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Industry Standard(s): UL467
  • Standards - Industry Standards Met: UL467
  • Standards - RoHS Compliance Status: EX
  • UL Listed: Yes

Overview

UPC 78181023135
GTiN 00781810231357
Family Brand Name Hubbell
Length 1.75 in
Width 2.75 in
Material Copper Alloy
Conductor Size 550 MCM
Height 3.28 in
Plating Type Unplated
Plated? No
CSA No
