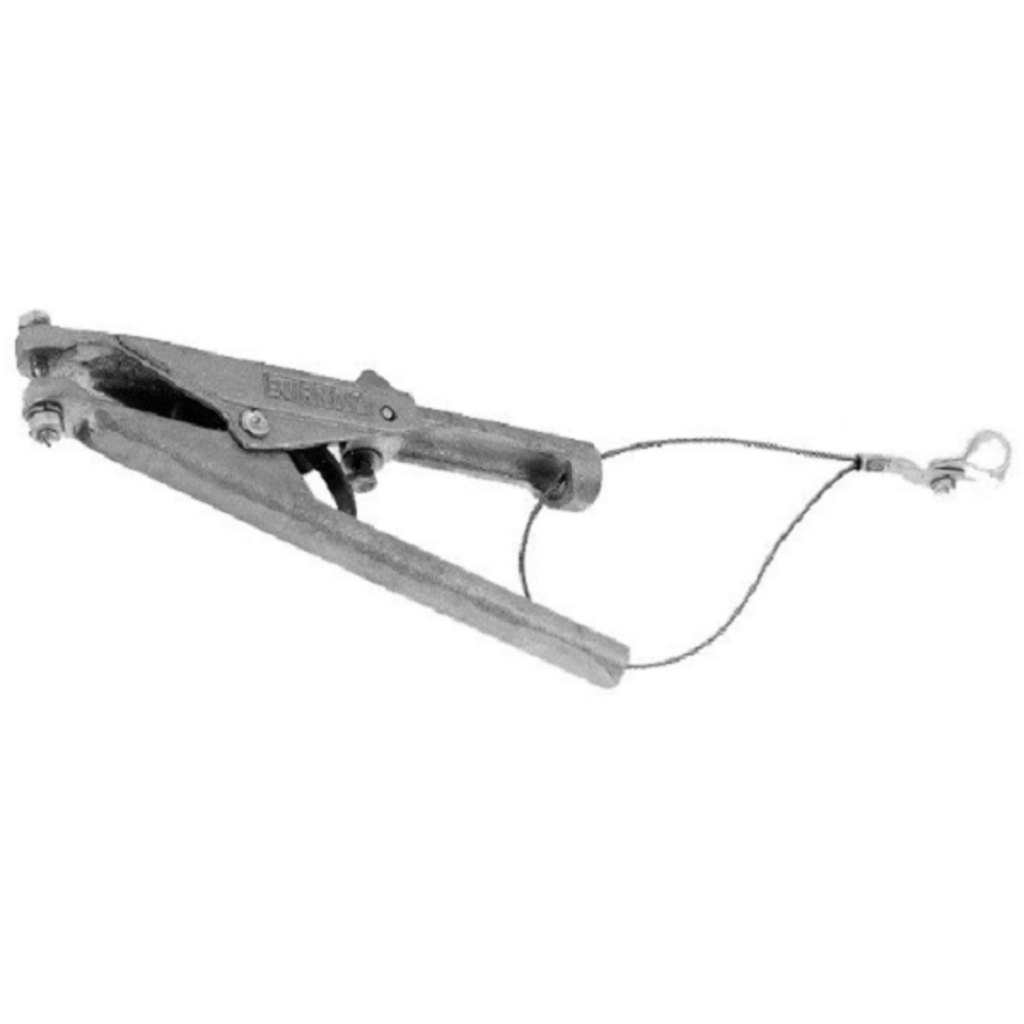

BUR GIE4CG3 SD GRN CLAMP BERYLLIUM
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$487.66/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # GIE4CG3
North Coast Part # 153906

Features

  • High-Strength Copper Alloy Ground Clamps For Grounding Gasoline Trucks, Tank Cars, Aircraft And Other Vehicles Where Danger Of Explosion Due To Static Electricity Exists, Corrosion Resistant And Supplied With Nonsparking, Adjustable, Replaceable Contact Grip Screws, Automatic Safety Release Disconnects Should A Vehicle Unexpectedly Move From The Grounded Area, Accommodates 4 Stranded Flexible Copper Cable, Length: 8-1/8 IN

Specifications

  • Buy American Compliant: Yes
  • Contact Point Material: Beryllium Copper
  • Country of Origin: MX
  • Each - Height: 1 in
  • Each - Length: 8.88 in
  • Each - Width: 6.13 in
  • Plated: N
  • Plating Type: Unplated
  • Product Type: Mechanical
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: EX
  • Application: For Grounding Gasoline Trucks, Tank Cars, Aircraft And Other Vehicles Where Danger Of Explosion Due To Static Electricity Exists
  • Special Features: Features: High-Strength Copper Alloy Ground Clamps For Grounding Gasoline Trucks, Tank Cars, Aircraft And Other Vehicles Where Danger Of Explosion Due To Static Electricity Exists, Corrosion Resistant And Supplied With Nonsparking, Adjustable, Replaceable Contact Grip Screws, Automatic Safety Release Disconnects Should A Vehicle Unexpectedly Move From The Grounded Area, Accommodates 4 Stranded Flexible Copper Cable, Length: 8-1/8 IN
  • Sub Brand: MECHANICAL CONNECTOR
  • Type: GIE-G, Heavy Duty
  • IGS 3D Model Asset Reference URL 2: https://hubbellcdn.com/igs/GIE4CG3_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 3: https://hubbellcdn.com/PDF3DFile/GIE4CG3_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 1: https://hubbellcdn.com/step3dfile/GIE4CG3_MODEL-STEP.zip

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181023150
Item Long Description Beryllium Copper Grounding Connector, Heavy Duty, For Vehicle Grounding.
GTiN 00781810231500
Type GIE-G, Heavy Duty
Material Beryllium,Copper
Applications For Grounding Gasoline Trucks, Tank Cars, Aircraft And Other Vehicles Where Danger Of Explosion Due To Static Electricity Exists
Family Brand Name Burndy
Sub Brand MECHANICAL CONNECTOR
Plating Type Unplated
Plated? No
CSA No
