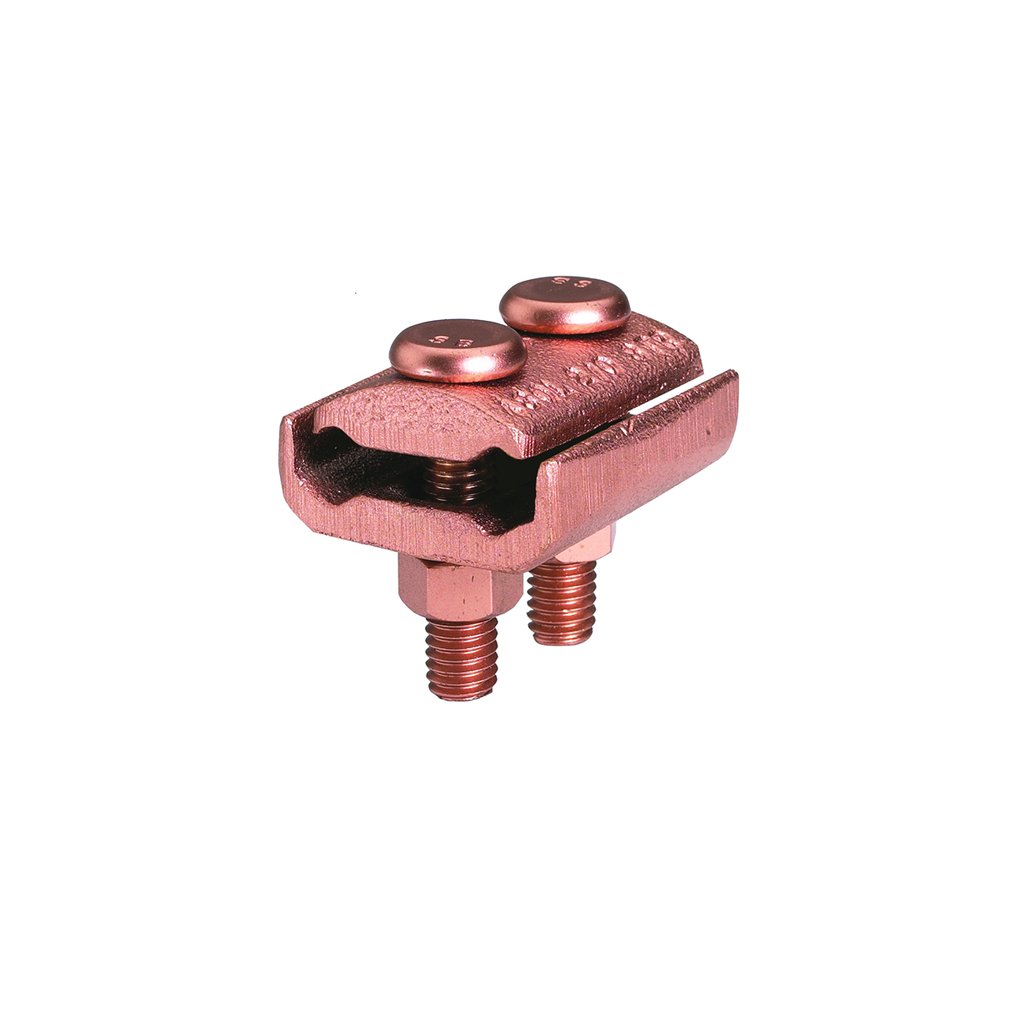

Burndy GL4C4C 8 - 4 AWG 2 Copper Cable to Bar Connector
Product image thumbnail 0
Product image thumbnail 1
$148.06/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # GL4C4C
North Coast Part # 216073

Specifications

General

  • Installation Torque Recommended in-lb: 240 LBS/in
  • Material: Copper Alloy
  • Material Type - Screw: DURIUMâ„¢ Silicon Bronze
  • Physical Attribute - Screw Type: Hexagonal Bolt
  • Plated: N
  • Plating Type: Unplated
  • UPC: 781810260005
  • UPC 12 Digit: 7818102600055

Dimensions

  • Dimension - B Length inch: 1.25 in
  • Dimension - D inch: 1.44 in
  • Dimension - F Width Center to Center inch: 0.94 in
  • Dimension - Height fraction: 1-1/2 in
  • Dimension - Height inch: 1.50 in
  • Dimension - Length Side B inch: 1.88 in
  • Dimension - Pad Width inch: 0.75 in
  • Dimension - Width fraction: 1-3/8 in
  • Dimension - Width inch: 1.38 in
  • Dimension - Width mm: 35 mm

Conductor Related

  • Conductor - Copper Solid Size: 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
  • Conductor - Copper Solid Size Range: 8 AWG-4 AWG
  • Conductor - Copper Str Size: 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
  • Conductor - Copper Str Size Range: 8 AWG-4 AWG

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Listed Direct Burial: Yes
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Industry Standard(s): UL467
  • Standards - Industry Standards Met: UL467
  • Standards - RoHS Compliance Status: EX
  • UL Listed: Yes

Logistics

  • Minimum Pack Quantity: 3

Overview

UPC 78181026000
GTiN 00781810260005
Family Brand Name Hubbell
Width 1.38 in
Material Copper Alloy
Conductor Size 4 AWG
Height 1.50 in
Plating Type Unplated
Plated? No
CSA No
