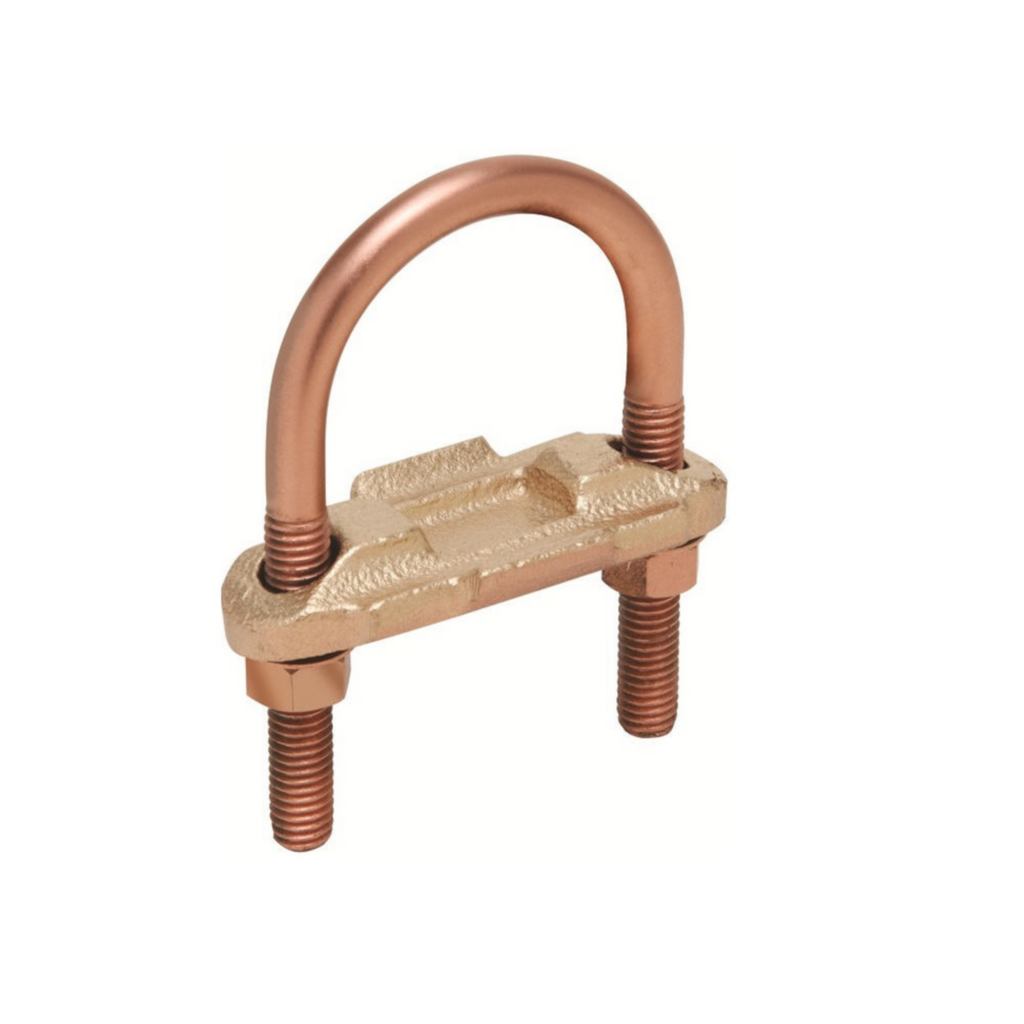

BUR GP654CG1 8SOL-4 STR, 1-2 COND
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$54.59/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # GP654CG1
North Coast Part # 66060

Features

  • Accepts 1 Or 2 Ground Conductors, Requires Less Connectors To Install Signal Reference Grid, Made Of Copper Alloy, DURIUM U-Bolts, Nuts And Lockwashers, Provides A Low Impedance Ground Path For Maximum Performance, Grounds All Pedestals (Round Or Square), Will Handle From 3/4 IN To 1 IN Round Or Square, Ease Of Installation, Serves 3 Needs, 1. Signal Reference Grid, 2. Static Ground, 3. Fault Current Ground, Connectors Solves All Possible Grounding Problems Found In Computer Applications Today, UL467 Listed, Dimension B: 1.5 IN, Raised Floor: Yes, Pedestal Type: Round, Square, Ground Rod Size: 3/4 - 7/8 IN, Tube (ips) Size: 3/4 - 1 IN, Installation Torque: 240 IN-LB, Width: 2.38 IN, Length: 1.31 IN

Specifications

  • Bolt Size: 3/8 in
  • Buy American Compliant: Yes
  • Conductor - Copper Solid Size Range: 8 AWG
  • Conductor - Copper Str Size Range: 4 AWG
  • Country of Origin: MX
  • Dimension - B Length inch: 1.50 in
  • Dimension - L Length Overall mm: 33 mm
  • Dimension - Length Overall inch: 1.31 in
  • Dimension - Width inch: 2.38 in
  • Dimension - Width mm: 60 mm
  • Each - Height: 2.69 in
  • Each - Length: 2.38 in
  • Each - Width: 1.31 in
  • Industry Standard(s): UL467
  • Installation Torque Recommended in-lb: 240 LBS/in
  • Pedestal Type: Round;Square
  • Plated: N
  • Plating Type: Unplated
  • Product Type: Mechanical
  • Show Add To ProjectList: Yes
  • Standards - Industry Standards Met: UL467
  • Standards - RoHS Compliance Status: EX
  • U Bolt Type: UB222
  • Application: For Raised Floor Computer Grounding Applications
  • Number of Conductors: 1;2
  • Number of Conductors/Ports (Main/Primary): 1;2
  • Special Features: Features: Accepts 1 Or 2 Ground Conductors, Requires Less Connectors To Install Signal Reference Grid, Made Of Copper Alloy, DURIUM U-Bolts, Nuts And Lockwashers, Provides A Low Impedance Ground Path For Maximum Performance, Grounds All Pedestals (Round Or Square), Will Handle From 3/4 IN To 1 IN Round Or Square, Ease Of Installation, Serves 3 Needs, 1. Signal Reference Grid, 2. Static Ground, 3. Fault Current Ground, Connectors Solves All Possible Grounding Problems Found In Computer Applications Today, UL467 Listed, Dimension B: 1.5 IN, Raised Floor: Yes, Pedestal Type: Round, Square, Ground Rod Size: 3/4 - 7/8 IN, Tube (ips) Size: 3/4 - 1 IN, Installation Torque: 240 IN-LB, Width: 2.38 IN, Length: 1.31 IN
  • Standard: UL467
  • Sub Brand: MECHANICAL CONNECTOR
  • Type: GP-G1
  • IGS 3D Model Asset Reference URL 3: https://hubbellcdn.com/igs/GP654CG1_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 1: https://hubbellcdn.com/PDF3DFile/GP654CG1_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 2: https://hubbellcdn.com/step3dfile/GP654CG1_MODEL-STEP.zip

Certifications

  • CSA Approved: No
  • UL Listed Direct Burial: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181082800
Item Long Description Raised Floor Grounding Clamp, #8 Sol. - 4 Str., 1.31 in L, 2.38 in.
GTiN 00781810828007
Type GP-G1
Material Cast,Copper Alloy
Number of Conductors 1;2
Applications For Raised Floor Computer Grounding Applications
Bolt Size 3/8 IN
Family Brand Name Burndy
Sub Brand MECHANICAL CONNECTOR
Length 1.31 in
Width 2.38 in
Plating Type Unplated
Plated? No
CSA No
