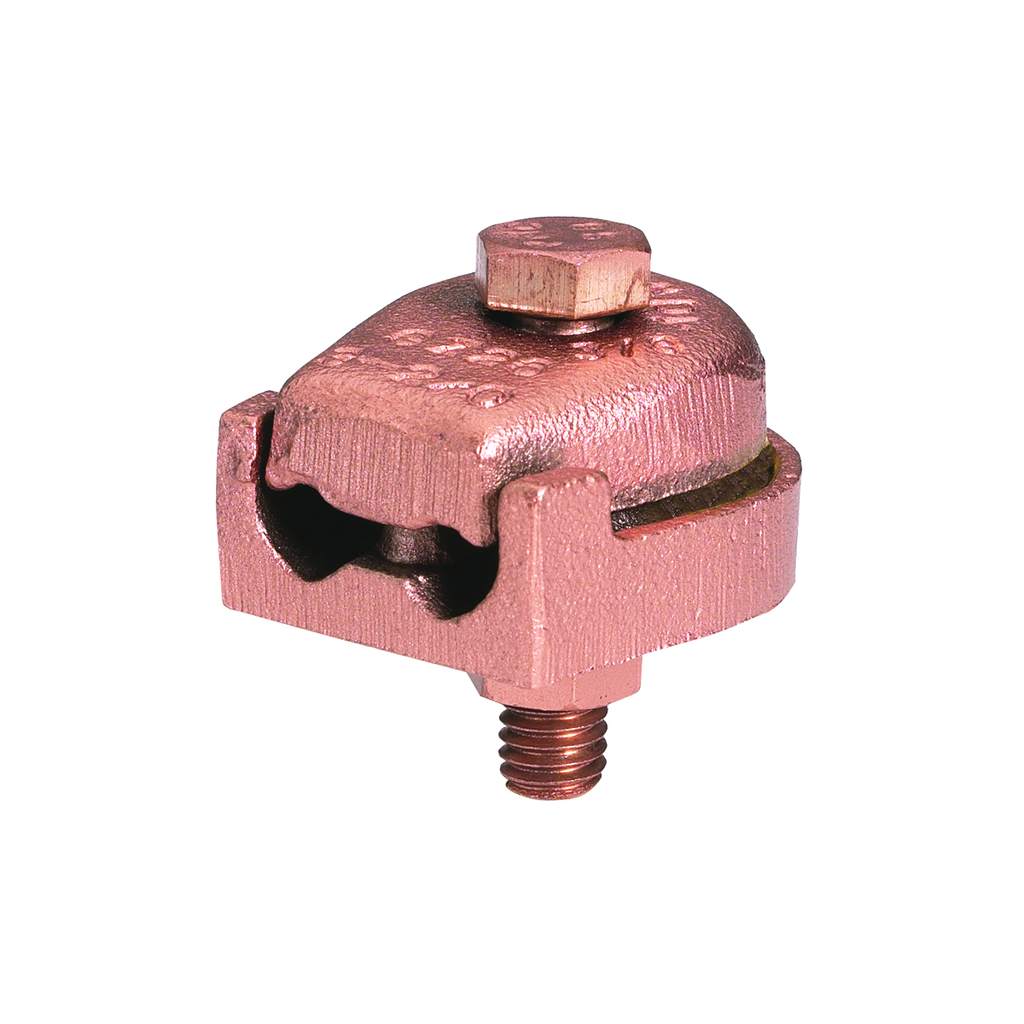

Burndy GZ2638 3/8 Inch 3 to 2/0 AWG Copper Cable to Bar Grounding Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$73.27/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # GZ2638
North Coast Part # 161290

Specifications

  • Conductor - Copper Str Size: 3;2;1;1/0;2/0
  • Conductor - Copper Str Size Range: 3-2/0
  • Country of Origin: US
  • Dimension - Height fraction: 2
  • Dimension - Height inch: 2.00 in
  • Dimension - L Length Overall mm: 48 mm
  • Dimension - Length Overall inch: 1.88 in
  • Dimension - Width fraction: 1-5/8 in
  • Dimension - Width inch: 1.59 in
  • Dimension - Width mm: 40 mm
  • Each - Height: 0.000 in
  • Each - Length: 0.000 in
  • Each - Width: 0.000 in
  • Industry Standard(s): UL467
  • Installation Torque Recommended in-lb: 240 LBS/in
  • Material Type - Screw: DURIUMâ„¢ Silicon Bronze
  • Plated: N
  • Plating Type: Unplated
  • Product Type: Mechanical
  • Show Add To ProjectList: Yes
  • Standards - Industry Standards Met: UL467
  • Standards - RoHS Compliance Status: EX

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Listed Direct Burial: Yes
  • UL Recognized: No

Overview

UPC 78181023210
GTiN 00781810232101
Family Brand Name Hubbell
Item Long Description Mechanical Grounding Connector, For Copper Cable to Bar, 3 AWG (Str) - 2/0 (Str), 3/8" Stud.
Length 1.88 in
Width 1.59 in
Material Copper
Height 2.00 in
Plating Type Unplated
Plated? No
CSA No
