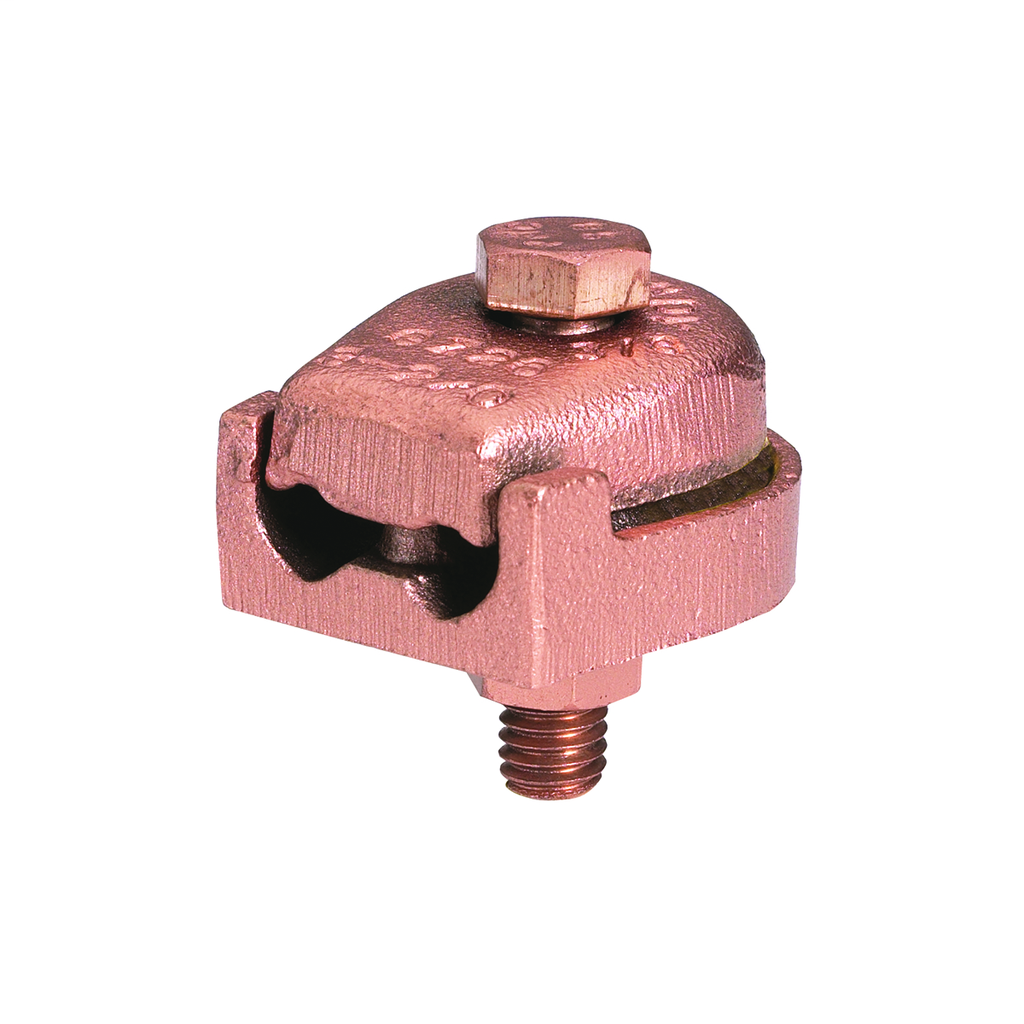

BUR GZ2658 3STR - 2/0 STR, CU COND
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$82.39/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # GZ2658
North Coast Part # 161417

Features

  • High Copper Alloy Ground Connector For Joining A Wide Range Of Cable To 1/4 IN Thick Bar, Cable Is Gripped By Curving It Around The Clamping Bolt In Connector Groove, UL467 Listed, The High Copper Alloy Cast Body And DURIUM Bolts, Nuts, And Lockwashers Make Them Suitable For Direct Burial In Concrete Or Ground, Width: 1-3/4 IN, Installation Torque: 660 IN-LB, Bar Thickness: 1/4 IN, Height: 2-1/4 IN

Specifications

  • Buy American Compliant: Contact Manufacturer
  • Conductor - Copper Str Size: 3;2;1;1/0;2/0
  • Conductor - Copper Str Size Range: 3 AWG - 2/0 AWG
  • Country of Origin: MX
  • Dimension - Height fraction: 2-1/4
  • Dimension - Height inch: 2.25 in
  • Dimension - L Length Overall mm: 48 mm
  • Dimension - Length Overall inch: 1.88 in
  • Dimension - Width fraction: 1-3/4 in
  • Dimension - Width inch: 1.75 in
  • Dimension - Width mm: 44 mm
  • Each - Height: 2.25 in
  • Each - Length: 2.25 in
  • Each - Width: 1.75 in
  • Industry Standard(s): UL467
  • Installation Torque Recommended in-lb: 660 LBS/in
  • Material Type - Screw: DURIUMâ„¢ Silicon Bronze
  • Plated: N
  • Plating Type: Unplated
  • Product Type: Mechanical
  • Standards - Industry Standards Met: UL467
  • Standards - RoHS Compliance Status: EX
  • Application: For Joining A Wide Range Of Copper Cable To Bar, Direct Burial In Concrete Or Ground
  • Material: Copper
  • Special Features: High Copper Alloy Ground Connector For Joining A Wide Range Of Cable To 1/4 IN Thick Bar, Cable Is Gripped By Curving It Around The Clamping Bolt In Connector Groove, UL467 Listed, The High Copper Alloy Cast Body And DURIUM Bolts, Nuts, And Lockwashers Make Them Suitable For Direct Burial In Concrete Or Ground, Width: 1-3/4 IN, Installation Torque: 660 IN-LB, Bar Thickness: 1/4 IN, Height: 2-1/4 IN
  • Standard: UL467
  • Sub Brand: MECHANICAL CONNECTOR
  • Type: GZ

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Listed Direct Burial: Yes
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

GTiN 00781810990148
Family Brand Name Burndy
Product UPC 78181099014
Length 2.25 Inch
Width 1.75 in
Type GZ
Material Copper
Applications For Joining A Wide Range Of Copper Cable To Bar, Direct Burial In Concrete Or Ground
Height 2.25 Inch
Plating Type Unplated
Plated? No
CSA No
Sub Brand MECHANICAL CONNECTOR
Country of Origin Mexico
Overall Length 1.88 in
