BUR HSC100FR100 100FT RL CLR PVC HE
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$601.83/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # HSC100FR100
North Coast Part # 65061

Features

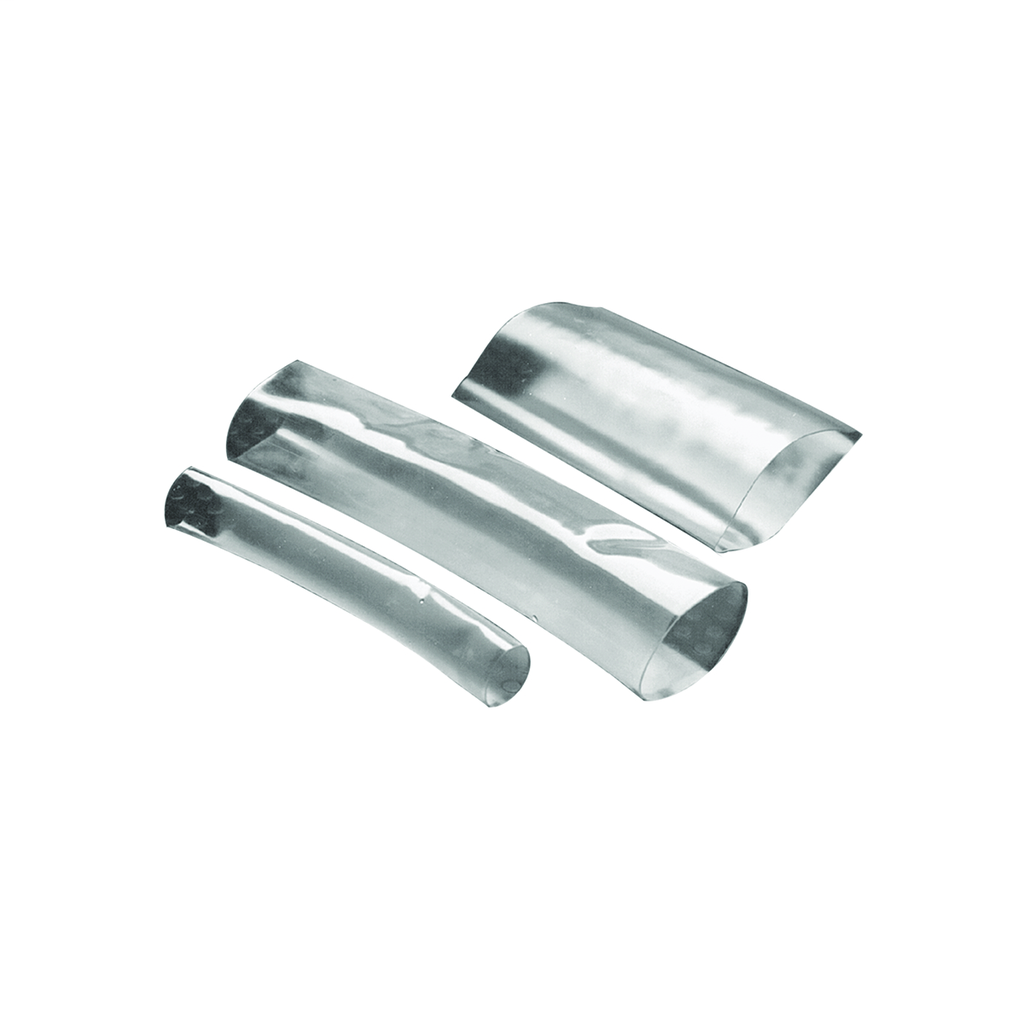

  • UL 224, VW-1 Rated: Self-Extinguishing Flame Retardant Properties, Clear Tubing: Allows Inspection Of Die Index Embossed And Shiner After Installation Is Complete, Should Any Corrosion Occur It Will Be Visible During Inspection, Low Shrink Temperature: Only Requires Common Hot Air Guns To Apply, Meets Mil-M-23053/Z-206C, Type HSC-FR Is A Flexible Polyvinyl Chloride Clear Heat-Shrink Tubing, Excellent Flame Retardant Properties And A 2:1 Shrink Ratio, The VISI-SHRINK Tubing Enables Inspectors To Read Die Index Embossments On Installed Connectors Easily, UL Recognized, 105 DEG C, 600V, The Operating Temperature From 20 DEG C To 105 DEG C With A Shrink Temperature Of 135 DEG C, Inner Diameter After Recovery: 0.5 IN, Inner Diameter Expanded: 1 IN, Conductor Range: 4/0 AWG - 300 KCMIL Code, 1/0 - 4/0 AWG Flex

Specifications

  • Color: Clear
  • Country of Origin: US
  • Each - Height: 0.000 in
  • Each - Length: 0.000 in
  • Each - Width: 0.000 in
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: CM
  • Trade Name: VISI-SHRINK™
  • Sub Brand: VISISHRINK

Certifications

  • CSA Approved: Yes
  • ETL: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181026613
Item Long Description PVC Clear Heat Shrink Tubing, 4/0-300 Code, 1/0-4/0 Flex, 600 V, Fire Retardant.
GTiN 00781810266137
Length 100 ft
Color Clear
Type HSC-FR, Fire Retardant
Thickness 035 IN
Shrink Ratio 2 : 1
Applications Used on UL Recognized TO 600V
Family Brand Name Burndy
Sub Brand VISISHRINK
Material PVC
CSA Yes
