BUR K11A39U2 TWO: 1/0 STR-750 DUAL
$129.60/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # K11A39U2
North Coast Part # 209843

Specifications

Dimensional

  • Length (in): 4.91
  • Thickness: 0.75
  • Height (in): 3.02
  • N (in): 0.38
  • D - in: 2.31
  • E - in: 1.38
  • Width (in): 1.69
  • Stud Size (Fraction): 3/8

General

  • Number of Conductors: 2

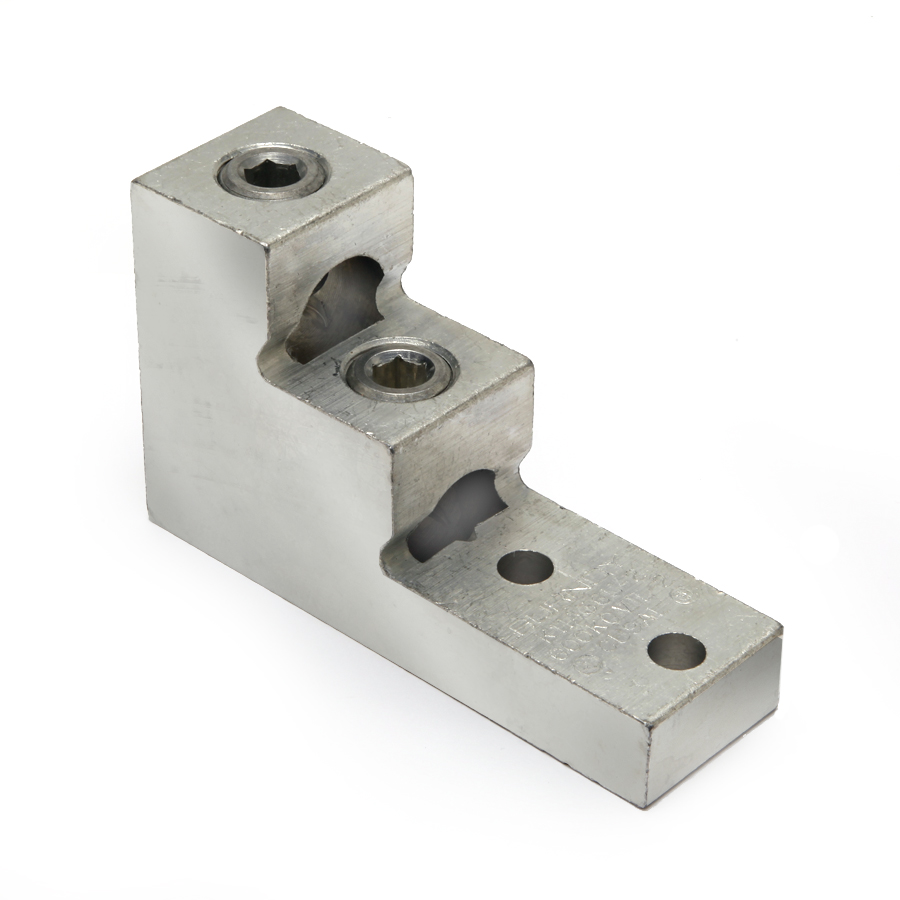

  • Product Description: Aluminum Universal Terminal, 2 Hole, Two: 1/0 AWG (Str)-750 kcmil, 3/8" Stud, 1.38" Stud Hole Spacing, 2 Screws, Al/Cu Rated, Tin Plated
  • Number of Holes: 2

Conductor(s)

  • Copper Solid Size (Range): 1/0 AWG-4/0 AWG
  • Copper Stranded (Range): 1/0 -750 kcmil
  • Aluminum Size (Range): 1/0 AWG-750 kcmil

Approvals / Certifications

  • Rated for Direct Burial: N
  • CSA Certified: Y
  • UL Recognized: N
  • CULUS: N
  • ROHS Compatible: Non-Compliant
  • Industry Standards: UL468A-468B
  • UL Listed: Y

Physical

  • Product Material: Aluminum
  • Installation Torque: 375
  • Plated (Yes or No): Y
  • Type of Plating: Tin
  • Connector Type: Terminal

Other Features

  • UPC: 781810370292

Documents

Overview

UPC 78181037029
GTiN 00781810370292
Type Bolted Lugs & Terminals
Material Aluminum
Number of Conductors 2
Applications For Aluminum and Copper Conductors
Temperature Rating 194
Family Brand Name Burndy
Sub Brand UNIVERSAL TERM
Length 4.91 in
Width 1.69 in
Conductor Size 750 MCM
Number of Holes 2 Hole
Height 3.02 in
Connection Type Terminal
Plating Type Tin
Plated? Yes
Direct Burial? No
