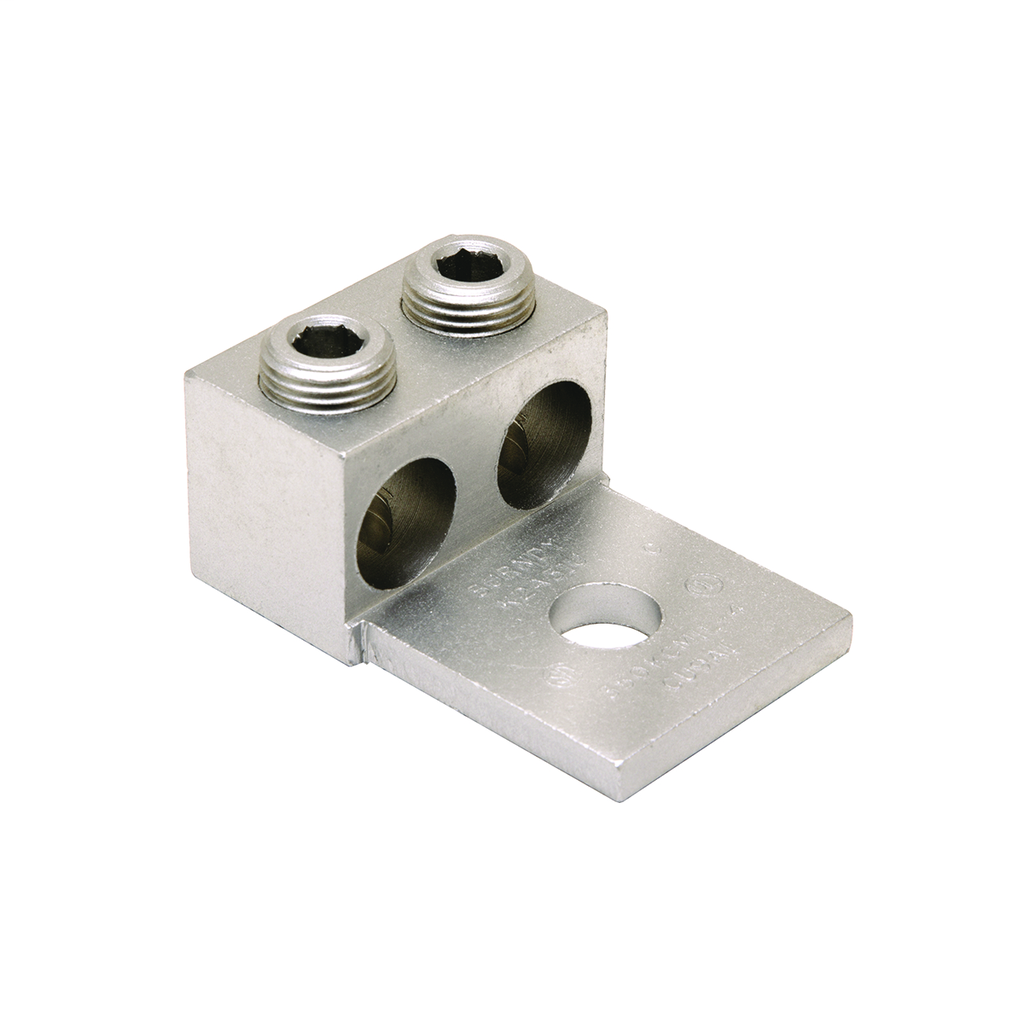

BUR K2A29URK Univ Term POS Qty1=1pc
Product image thumbnail 0
Product image thumbnail 1
$20.90/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # K2A29URK
North Coast Part # 1278256

Features

Features: These Dual-Rated Two-Conductor Lugs Are Constructed From High Strength Aluminum Alloy And Electro Tin-Plated To Provide Low Contact Resistance, Dimension D: 1.5 IN, Length: 2.56 IN, Width: 1.66 IN, Stud Size: 3/8 IN Hole, Thickness: 0.25 IN, Installation Torque: 275 IN-LB, Height: 1.2 IN, Dimension N: 0.5 IN, Package: Clamshell, Dimension T: 0.25 IN

Specifications

General

  • Application: For Aluminum And Copper Conductors
  • Hardware Type: 3/8 UNC Slotted Set Screw
  • Installation Torque Recommended in-lb: 275 LBS/in
  • Insulation: Y
  • Item Type: 3B
  • Material: Aluminum
  • Material - Hardware: Aluminum
  • Physical Attribute - Number of Holes: 1
  • Physical Attribute - Screw Type: Slot
  • Plated: N
  • Plating Type: Unplated
  • Sub Brand: UNIVERSAL TERM
  • Temperature Rating: 194
  • Trade Name: UNIVERSAL TERM
  • Type: Bolted Lugs & Terminals
  • UPC: 781810412121
  • UPC 12 Digit: 7818104121211

Dimensions

  • Dimension - Bolt Hole Size inch: 0.38 in
  • Dimension - D inch: 1.50 in
  • Dimension - Height fraction: 1.2 in
  • Dimension - Height inch: 1.20 in
  • Dimension - Hole Size inch: 0.40 in
  • Dimension - Hole Size mm: 10 mm
  • Dimension - L Length Overall mm: 65 mm
  • Dimension - Length Overall inch: 2.56 in
  • Dimension - N inch: 0.5 in
  • Dimension - Pad Width inch: 1.66 in
  • Dimension - Screw Size inch: 3/8
  • Dimension - Stud Size inch: 3/8
  • Dimension - Width inch: 1.66 in
  • Dimension - Width mm: 42 mm

Electrical Ratings

  • Rating - Minimum Voltage: 600

Conductor Related

  • Conductor - AL Str Size: 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
  • Conductor - AL Str Size Range: 6 AWG-250 kcmil
  • Conductor - Copper Solid Size Range: N/A
  • Conductor - Copper Str Size: 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
  • Conductor - Copper Str Size Range: 6 AWG-250 kcmil

Certifications and Compliance

  • Certification - CSA Approved: Yes
  • Certification - ETL: No
  • Certification - UL Listed Direct Burial: N
  • Industry Standard(s): UL468A-468B
  • Standards - Industry Standards Met: UL468A-468B
  • Standards - RoHS Compliance Status: NC
  • UL Listed: Yes

Logistics

  • Number of Pieces in Package: 1

Overview

UPC 78181041212
GTiN 00781810412121
Finish Tin Plated
Type Bolted Lugs & Terminals
Material Aluminum
Applications For Aluminum And Copper Conductors
Temperature Rating 194
Family Brand Name Burndy
Sub Brand UNIVERSAL TERM
Length 2.56 in
Width 1.66 in
Hole Size 10 mm
Conductor Size 1 AWG
Height 1.20 in
Plating Type Unplated
Plated? No
CSA Yes
