BUR K2C17B1 10-7 STR 7/8 POST 2 CON
Product image thumbnail 0
Product image thumbnail 1
$36.57/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # K2C17B1
North Coast Part # 211734

Specifications

General

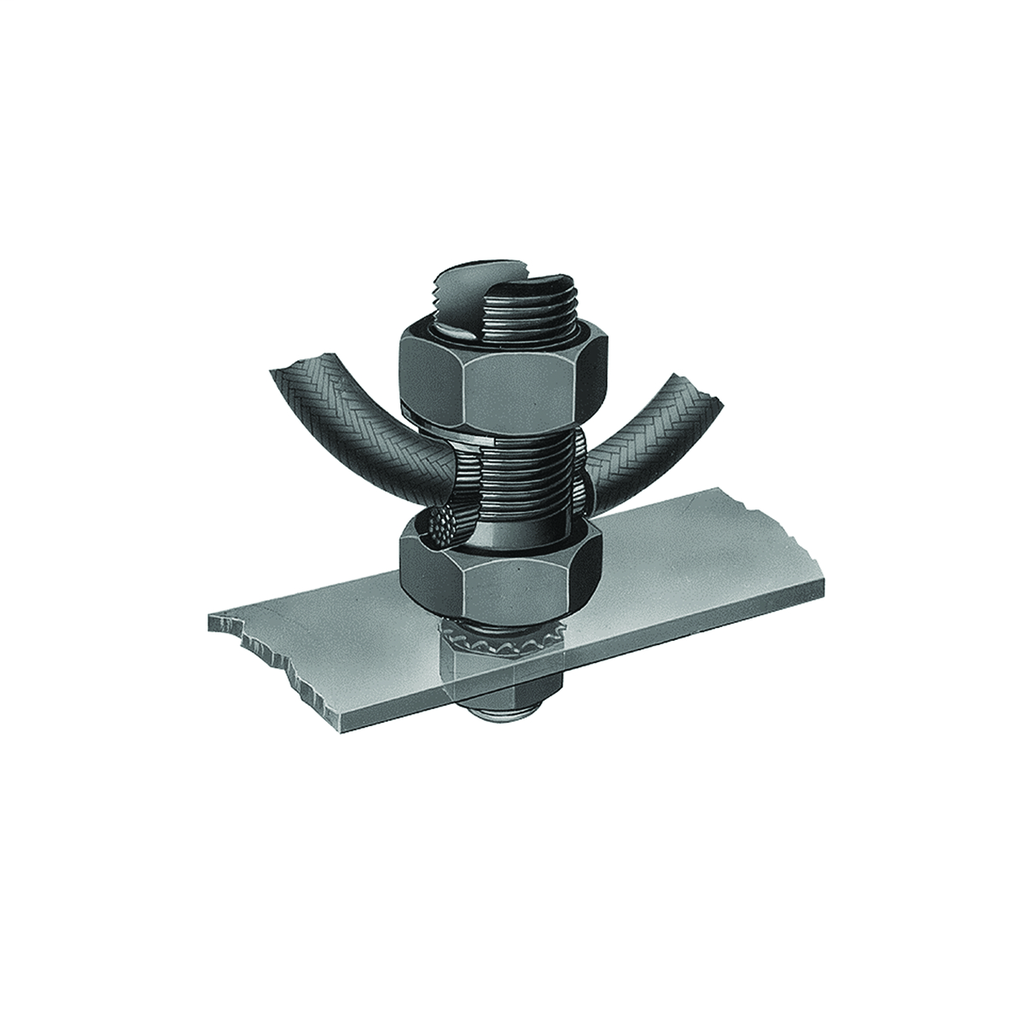

  • Application: For Used To Ground One Or Two Copper Cables To Steel Structures, Fence Posts, Transformers, Tap One Or Two Cables From Bus Bar And Direct Burial
  • Material: Bronze Alloy, Leaded
  • Plated: N
  • Plating Type: Unplated
  • Stud Installation Torque inch pounds: 80 LBS/in
  • Sub Brand: SERVIT POST
  • Trade Name: SERVIT POSTâ„¢
  • Type: KC and K2C Series
  • UPC: 781810256954
  • UPC 12 Digit: 7818102569544

Dimensions

  • Dimension - B Length fraction: 7/8 in
  • Dimension - B Length inch: 0.87 in
  • Dimension - Body Width inch: 0.44 in
  • Dimension - Bolt Size fraction: 1/4
  • Dimension - D inch: 1.00 in
  • Dimension - Height fraction: 7/8
  • Dimension - Height inch: 0.84 in
  • Dimension - L Length Overall mm: 46.7 mm
  • Dimension - Length Overall inch: 1.84 in
  • Dimension - Nut Width inch: 0.62 in
  • Dimension - P inch: 0.17 in
  • Dimension - Threads per inch: 20

Conductor Related

  • Conductor - Copper Solid Size: 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG
  • Conductor - Copper Solid Size Range: 10 AWG-6 AWG
  • Conductor - Copper Str Size: 10 AWG;9 AWG;8 AWG;7 AWG
  • Conductor - Copper Str Size Range: 10 AWG-7 AWG
  • Physical Attribute - Number of Conductors Accommodated Total: 2

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Listed Direct Burial: Yes
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Industry Standard(s): UL467
  • Standards - Industry Standards Met: UL467
  • Standards - RoHS Compliance Status: EX
  • UL Listed: Yes

Logistics

  • Minimum Pack Quantity: 1

Overview

UPC 78181025695
GTiN 00781810256954
Type KC and K2C Series
Applications For Used To Ground One Or Two Copper Cables To Steel Structures, Fence Posts, Transformers, Tap One Or Two Cables From Bus Bar And Direct Burial
Family Brand Name Burndy
Sub Brand SERVIT POST
Length 1.84 in
Material Bronze Alloy,Leaded
Conductor Size 9 AWG
Height 0.84 in
Plating Type Unplated
Plated? No
CSA No
