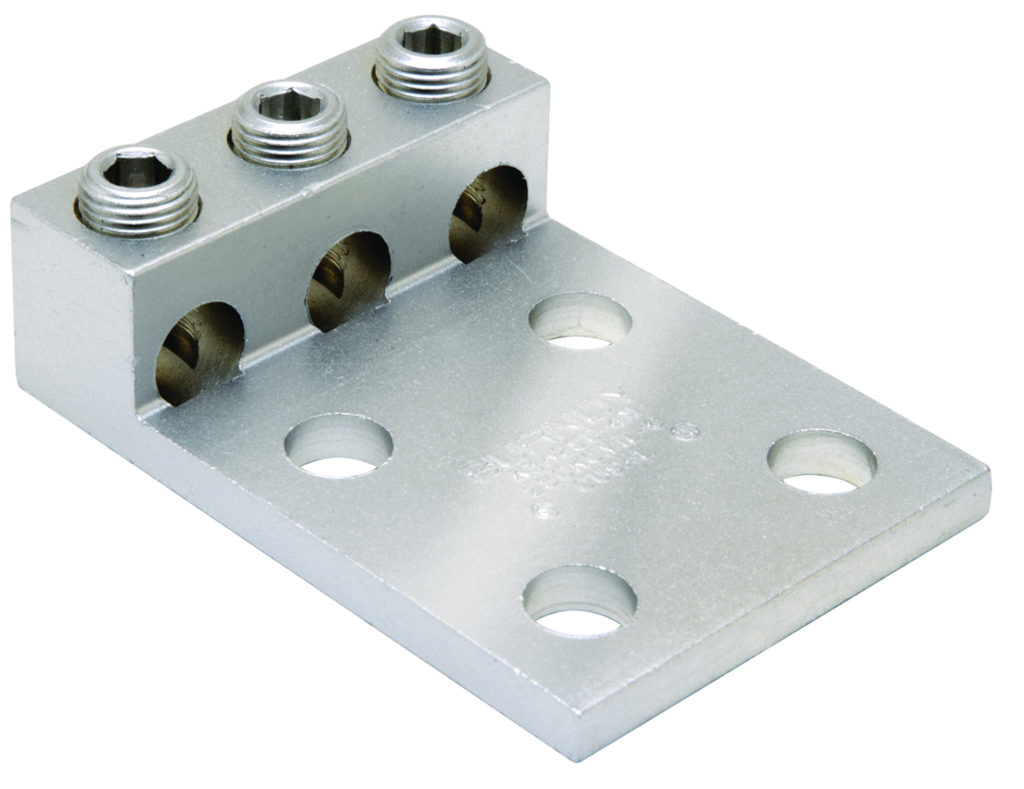

Burndy K3A27U4N 6 to 3/0 AWG Aluminum 4-Hole Dual Rated Universal Terminal Lug
Product image thumbnail 0
Product image thumbnail 1
$73.87/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # K3A27U4N
North Coast Part # 13808

Specifications

  • Connector Type: Terminal
  • Installation Torque Recommended in-lb: 275 LBS/in
  • Item Type: 3C
  • Material: Aluminum
  • Material - Hardware: Aluminum
  • Physical Attribute - Number of Holes: 4
  • Physical Attribute - Number of Screws: 3
  • Physical Attribute - Screw Type: Slot
  • Plated: Y
  • Plating Type: Tin plated
  • Temperature Rating: 194
  • Type: Bolted Lugs & Terminals
  • UPC: 781810370414
  • UPC 12 Digit: 7818103704144
  • Dimension - Bolt Hole Size inch: 0.57 in
  • Dimension - D inch: 3.00 in
  • Dimension - Height fraction: 1.125 in
  • Dimension - Height inch: 1.12 in
  • Dimension - Hole Size fraction: 9/16
  • Dimension - Hole Size inch: 0.56 in
  • Dimension - Hole Size mm: 14 mm
  • Dimension - L Length Overall mm: 108 mm
  • Dimension - Length Overall inch: 4.25 in
  • Dimension - N inch: 0.63 in
  • Dimension - Pad Width inch: 2.83 in
  • Dimension - Stud Size inch: 1/2 in
  • Dimension - Width fraction: 2-81/100 in
  • Dimension - Width inch: 2.83 in
  • Dimension - Width mm: 71 mm
  • Rating - Minimum Voltage: 600
  • Conductor - AL Str Size: 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG
  • Conductor - AL Str Size Range: 6 Str.-3/0 AWG
  • Conductor - Copper Str Size: 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG
  • Conductor - Copper Str Size Range: 6 Str.-3/0 AWG

Conductor Type

  • AL C Str-Size
  • CU C Str-Size
  • Number Of Conductors: 3
  • Certification - CSA Approved: Yes
  • Certification - ETL: No
  • Certification - UL Listed Direct Burial: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Industry Standard(s): UL468A-468B
  • Standards - Industry Standards Met: UL468A-468B
  • Standards - RoHS Compliance Status: NC
  • UL Listed: Yes
  • Pallet Quantity: 60

Overview

UPC 78181037041
GTiN 00781810370414
Family Brand Name Hubbell
Length 4.25 in
Width 2.83 in
Hole Size 14 mm
Material Aluminum
Conductor Size 1 AWG
Height 1.12 in
Connection Type Terminal
Plating Type Tinned
Plated? Yes
CSA Yes
