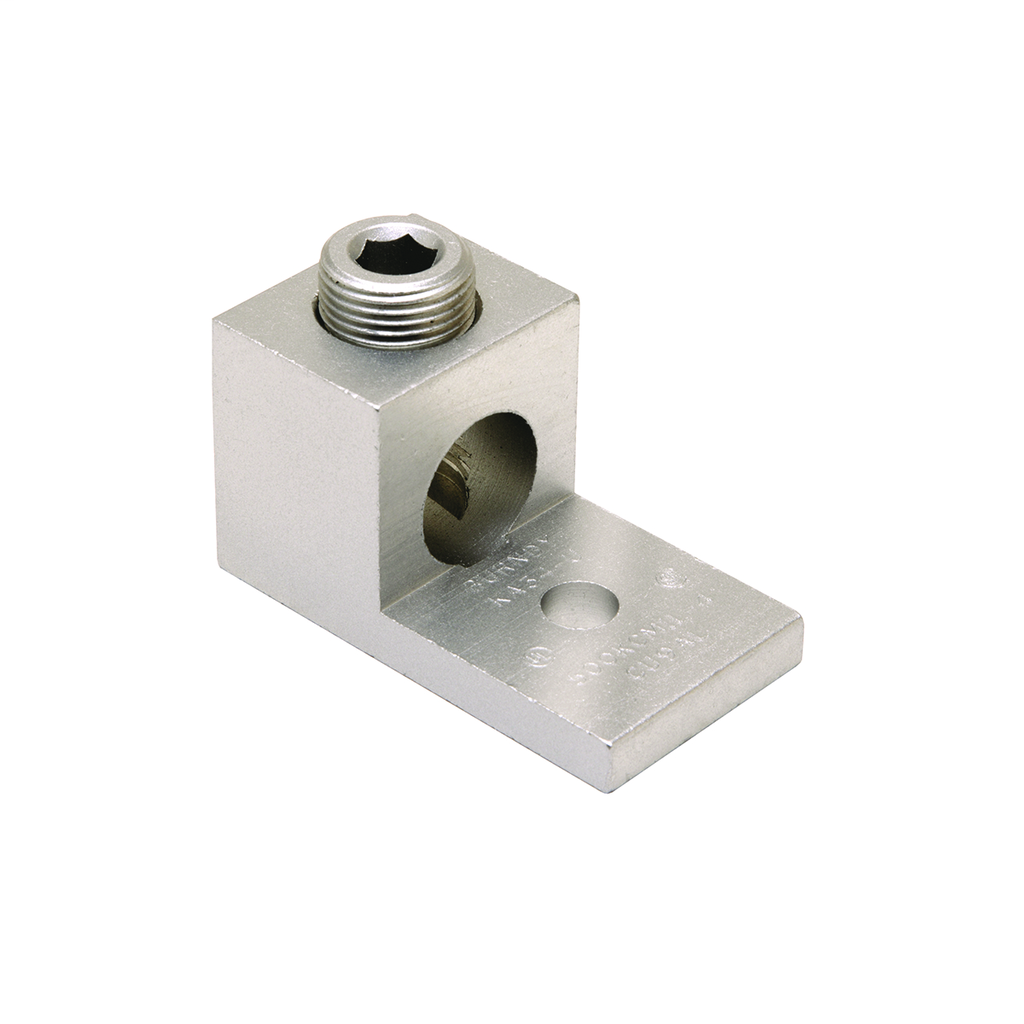

BUR KA26URK Univ Term POS Qty1=2pcs
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$9.06/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # KA26URK
North Coast Part # 1163027

Specifications

Dimensional

  • Pad Width (in): 0.64
  • Bolt Hole Size (in): 0.25
  • D - in: 0.81
  • Width (in): 0.63
  • Thickness: 0.19
  • Length (in): 1.47
  • N (in): 0.45

General

  • Number of Holes: 1

Conductor(s)

  • Copper Solid Size (Range): N/A
  • Copper Stranded (Range): 6 AWG-2/0 AWG
  • Aluminum Size (Range): 6 AWG-2/0 AWG

Approvals / Certifications

  • Rated for Direct Burial: N
  • CSA Certified: N
  • UL Listed: N
  • CULUS: Y
  • UL Recognized: N
  • ROHS Compatible: Non-Compliant
  • Industry Standards: UL468A-468B

Physical

  • Type of Plating: Tin
  • Bolt Hole Size: 1/4
  • Product Material: Aluminum
  • Installation Torque: 120
  • Plated (Yes or No): Y

Other Features

  • UPC: 781810359860

Documents

Overview

UPC 78181035986
Item Long Description Univ Term POS Qty1=2pcs
GTiN 00781810359860
Finish Tin Plated
Type Bolted Lugs & Terminals
Material Aluminum
Applications For Aluminum And Copper Conductors
Bolt Size 1/4 IN
Temperature Rating 194
Family Brand Name Burndy
Sub Brand UNIVERSAL TERM
Length 1.47 in
Width 0.63 in
Hole Size 7 mm
Conductor Size 2/0 AWG
Height 0.80 in
Plating Type Tin
Plated? Yes
CSA Yes
Pad Width 0.64 in
Number of Holes 1 Hole
Direct Burial? No
Bolt Hole Size 0.25 in
