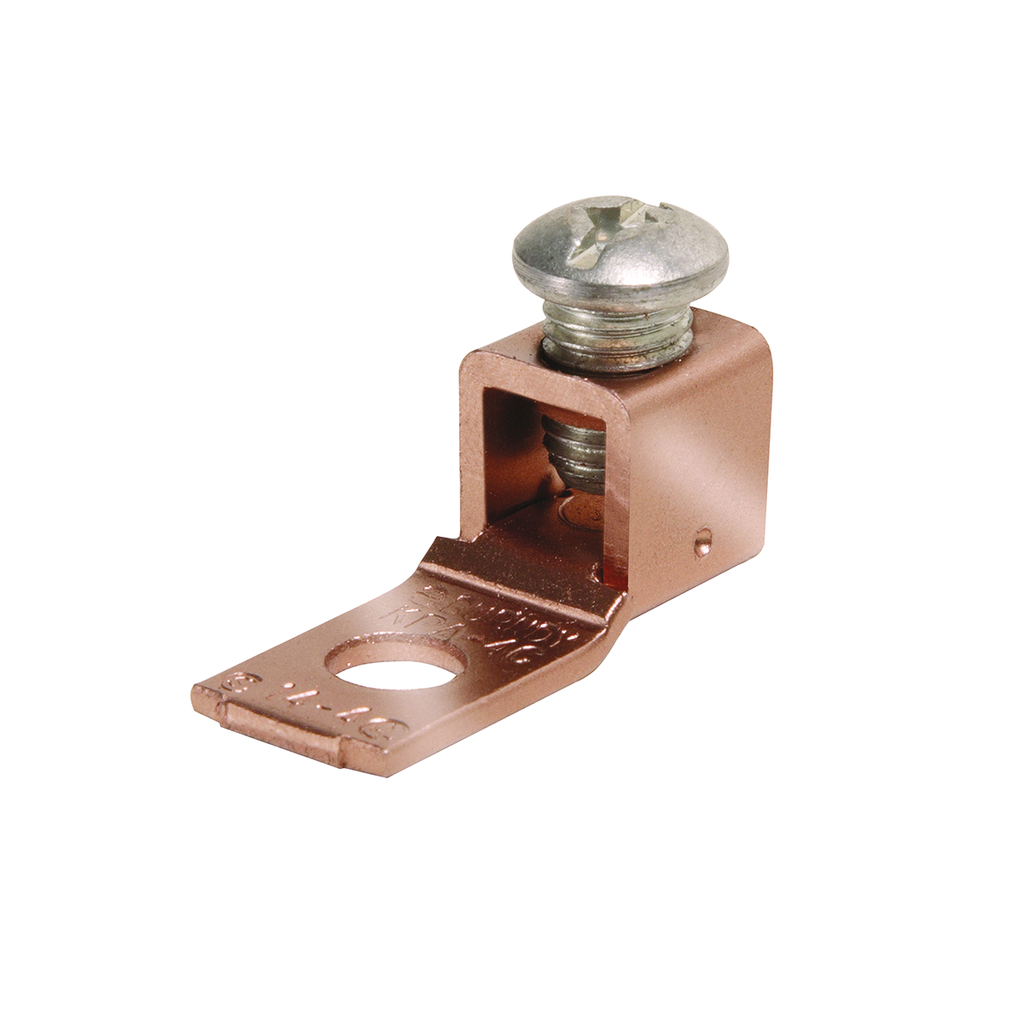

BUR KPA4CUP COPPER ALLOY SCRULUG UN
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2.48/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # KPA4CUP
North Coast Part # 267835

Features

  • High Copper Alloy Terminal For Joining A Wide Range Of Cable To Equipment Pads Or Terminal Blocks, One Piece Design, Superior Torque And Pull Out Performance, Convenient Range Taking Design, Reduces Catalog Numbers, One Catalog Number Accommodates Several Conductor Sizes, High Conductivity Copper Alloy, Long Lasting, Reliable Contact, Compact Design, Easy To Use, Slot Robertson Screw, Hex Head, Hex Socket Bolt, No Special Installation Tools Required, Eliminates Over-Torquing/Potential Conductor Damage, Dimension T: 07 IN, Dimension D: 0.71 IN, Stud/bolt Hole Size: 1/4 IN, Dimension K: 0.28 IN, Dimension N: 0.33 IN, Set Screw Type: Slot Robertson, Tongue Width: 0.5 IN, Length: 1.28 IN, Height: 1 IN, Installation Torque: 45 IN-LB

Specifications

  • Buy American Compliant: No
  • Conductor - Copper Solid Size: 14;13;12;11;10;9;8;7;6;5;4
  • Conductor - Copper Solid Size Range: 14-4
  • Conductor - Copper Str Size: 14;12;10;9;8;7;6;5;4
  • Conductor - Copper Str Size Range: 14-4
  • Country of Origin: MX
  • Dimension - D inch: 0.71 in
  • Dimension - Height fraction: 1 in
  • Dimension - Height inch: 1.00 in
  • Dimension - Hole Size inch: 0.28 in
  • Dimension - Hole Size mm: 7 mm
  • Dimension - L Length Overall mm: 33 mm
  • Dimension - Length Overall inch: 1.28 in
  • Dimension - N inch: 0.33 in
  • Dimension - Pad Width inch: 0.50 in
  • Dimension - Strip Length inch: 9/16
  • Dimension - Stud Size inch: 1/4
  • Each - Height: 1 in
  • Each - Length: 1.28 in
  • Each - Width: 0.5 in
  • Hardware Type: 5/16 DIA.SLOT ROBERTSON
  • Industry Standard(s): UL 486A-486B
  • Installation Torque Recommended in-lb: 45 LBS/in
  • Physical Attribute - Number of Holes: 1
  • Physical Attribute - Number of Screws: 1
  • Physical Attribute - Screw Type: Slot
  • Plated: N
  • Plating Type: Unplated
  • Product Type: Mechanical
  • Show Add To ProjectList: Yes
  • Standards - Industry Standards Met: UL 486A-486B
  • Standards - RoHS Compliance Status: CM
  • Trade Name: SCRULUG™
  • Application: For Joining A Wide Range Of Copper Cable To Equipment Pads Or Terminal Blocks
  • Special Features: Features: High Copper Alloy Terminal For Joining A Wide Range Of Cable To Equipment Pads Or Terminal Blocks, One Piece Design, Superior Torque And Pull Out Performance, Convenient Range Taking Design, Reduces Catalog Numbers, One Catalog Number Accommodates Several Conductor Sizes, High Conductivity Copper Alloy, Long Lasting, Reliable Contact, Compact Design, Easy To Use, Slot Robertson Screw, Hex Head, Hex Socket Bolt, No Special Installation Tools Required, Eliminates Over-Torquing/Potential Conductor Damage, Dimension T: 07 IN, Dimension D: 0.71 IN, Stud/bolt Hole Size: 1/4 IN, Dimension K: 0.28 IN, Dimension N: 0.33 IN, Set Screw Type: Slot Robertson, Tongue Width: 0.5 IN, Length: 1.28 IN, Height: 1 IN, Installation Torque: 45 IN-LB
  • Standard: UL 486A-486B
  • Sub Brand: SCRULUG
  • Type: Bolted Lugs & Terminals
  • IGS 3D Model Asset Reference URL 3: https://hubbellcdn.com/igs/KPA4CUP_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 2: https://hubbellcdn.com/PDF3DFile/KPA4CUP_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 1: https://hubbellcdn.com/step3dfile/KPA4CUP_MODEL-STEP.zip

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181035436
Item Long Description SCRULUG Mechanical Terminal for Copper Cable; 1-Hole; Accommodates: #14 Sol - #4 Str; 1.28" Length; .50" Width.
GTiN 00781810354360
Finish Unplated
Type KPA-UP
Material High Copper Alloy
Conductor Size 14 AWG Solid, 4 AWG
Applications For Joining a Wide Range of Copper Cable to Equipment Pads or Bar
Bolt Size 5/16 in
Family Brand Name Burndy
Blade Dimensions 1.28 in L x 1 in H
Mounting Hole Size 1/4 in
Sub Brand Scrulug
Length 1.28 in
Hole Size 7 mm
Height 1.00 in
Connection Type Terminal
Plating Type Unplated
Plated? No
CSA No
