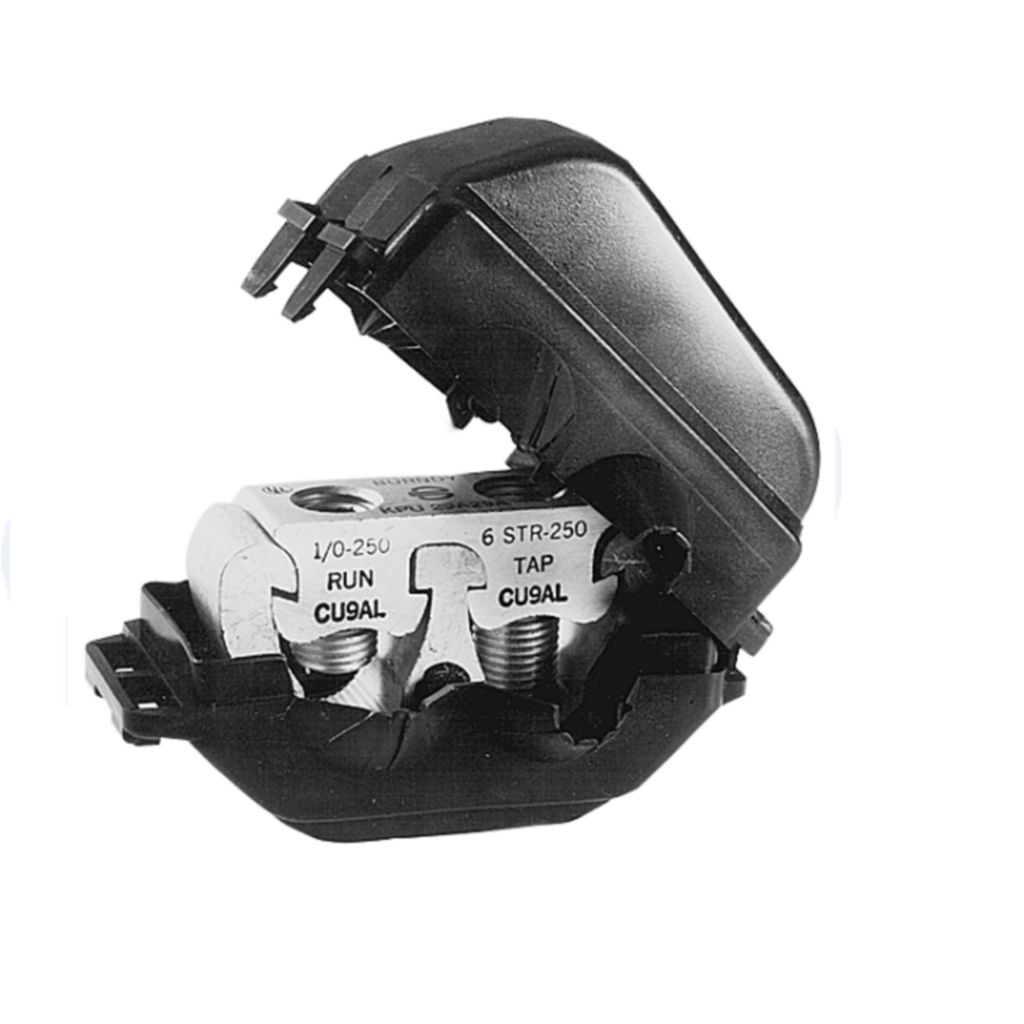

BUR KPU34A34AC INSULATED COVER&TAP
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$54.85/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # KPU34A34AC
North Coast Part # 65783

Features

  • Wide Range-Taking Tin-Plated Aluminum Parallel Clamp And Insulating Cover Assembly For Industrial And Multiple Story Structure Applications, Only Six Connectors Cover The Entire 14 AWG Solid To 750 KCMIL Range, Covers Having Flexible Fingers That Conform To Conductor, Fully Insulating The Connection, UL486B Listed For 600 V Maximum 90 DEG C Service, Cover And Connector Are Packaged Together, No Taping Required, Conductor Size (tap Range): 6 AWG - 500 KCMIL, Conductor Size (run - Range): 4/0 AWG - 500 KCMIL, Torque: 450 IN-LB

Specifications

  • Conductor - AL Str Run: 4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil
  • Conductor - AL Str Run Range: 4/0 AWG-500 kcmil
  • Conductor - AL Str Tap: 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil
  • Conductor - AL Str Tap Range: 6 AWG-500 kcmil
  • Conductor - Copper Str Run: 4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
  • Conductor - Copper Str Run Range: 4/0 AWG-500 kcmil
  • Conductor - Copper Str Tap: 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
  • Conductor - Copper Str Tap Range: 6 AWG-500 kcmil
  • Country of Origin: US
  • Dimension - Height fraction: 3-1/2 in
  • Dimension - Height inch: 3.48 in
  • Dimension - L Length Overall mm: 116 mm
  • Dimension - Length Overall inch: 4.48 in
  • Dimension - Width fraction: 3-1/2 in
  • Dimension - Width inch: 3.50 in
  • Dimension - Width mm: 89 mm
  • Each - Height: 3.48 in
  • Each - Length: 4.58 in
  • Each - Width: 3.5 in
  • Industry Standard(s): UL 486A-486B
  • Installation Torque Recommended in-lb: 450 LBS/in
  • Plated: N
  • Plating Type: Tin
  • Product Type: Mechanical
  • Rating - Minimum Voltage: 110
  • Show Add To ProjectList: Yes
  • Standards - Industry Standards Met: UL 486A-486B
  • Standards - RoHS Compliance Status: EX
  • Trade Name: POLYTAP™
  • Sub Brand: POLYTAP

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Listed Direct Burial: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181062363
Item Long Description Gutter Tap, 4/0 AWG (Str)-500 kcmil (Run), 6 AWG (Str)-500 kcmil (Tap), Al/Cu Rated.
GTiN 00781810623633
Finish Tin Plated
Size 3-1/2 IN Height X 3-1/2 IN Width X 4-5/8 IN Length
Type KPU-AC
Material Aluminum
Conductor Size Run: 4/0 AWG, 250, 300, 350, 400, 500 KCMIL
Applications For All Copper And Aluminum Combinations
Temperature Rating 194
Family Brand Name Burndy
Tap Size 4/0, 2/0, 3/0, 1, 1/0, 2, 4, 6 AWG, 250, 300, 350, 400, 500 KCMIL
Sub Brand POLYTAP
Length 4.48 in
Width 3.50 in
Height 3.48 in
Connection Type Tap
Plating Type Tin
Plated? No
CSA No
Max Voltage 600 V
