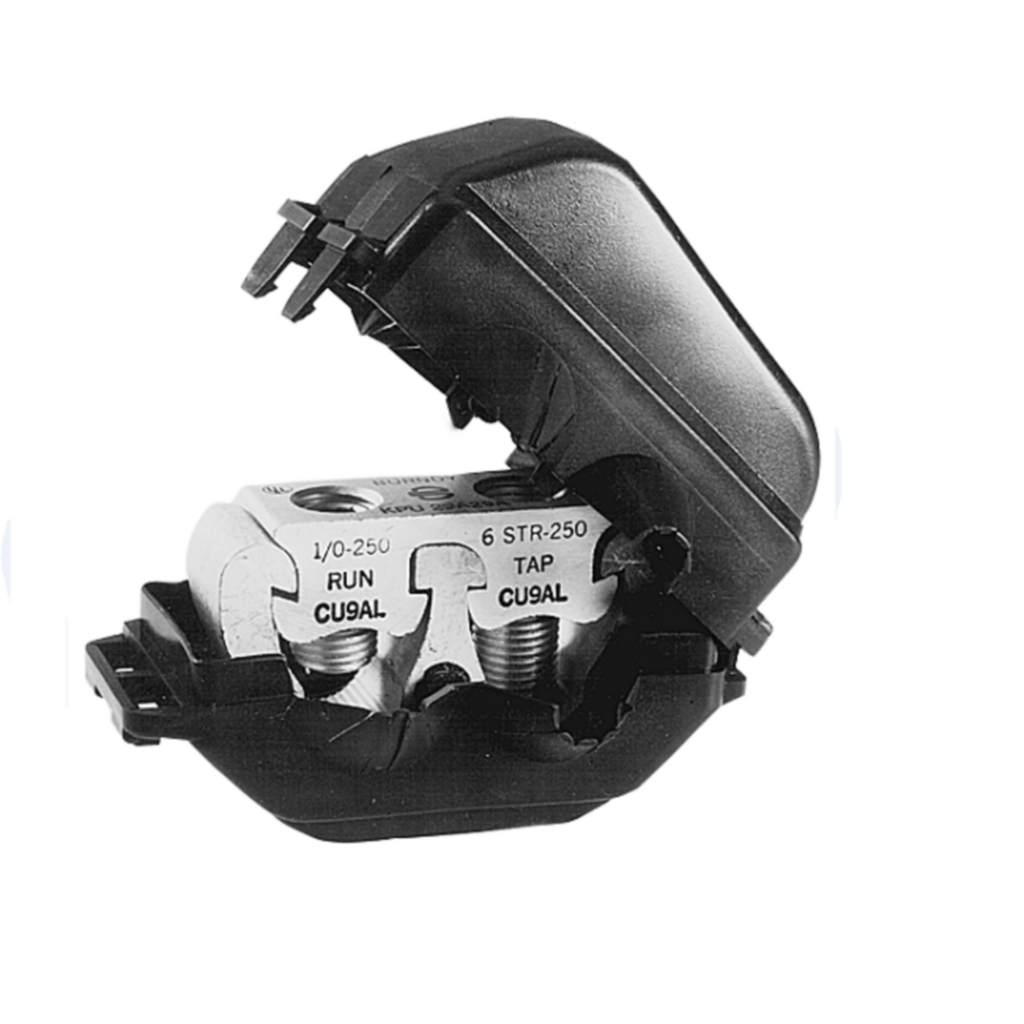

BUR KPU39A39AC INSULATED COVER&TAP
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$75.03/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # KPU39A39AC
North Coast Part # 157784

Features

  • Wide Range-Taking Tin-Plated Aluminum Parallel Clamp And Insulating Cover Assembly For Industrial And Multiple Story Structure Applications, Only Six Connectors Cover The Entire 14 AWG Solid To 750 KCMIL Range, Covers Having Flexible Fingers That Conform To Conductor, Fully Insulating The Connection, UL486B Listed For 600 V Maximum 90 DEG C Service, Cover And Connector Are Packaged Together, No Taping Required, Conductor Size (run - Range): 500 - 750 KCMIL, Conductor Size (tap Range): 1/0 AWG - 750 KCMIL, Torque: 600 IN-LB

Specifications

  • Buy American Compliant: Yes
  • Conductor - AL Str Run: 500 kcmil;550 kcmil;556 kcmil;600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil
  • Conductor - AL Str Run Range: 500 kcmil-750 kcmil
  • Conductor - AL Str Tap: 1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil
  • Conductor - AL Str Tap Range: 1/0 AWG-750 kcmil
  • Conductor - Copper Str Run: 500 kcmil;550 kcmil;600 kcmil;700 kcmil;750 kcmil
  • Conductor - Copper Str Run Range: 500 kcmil-750 kcmil
  • Conductor - Copper Str Tap: 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil;700 kcmil;750 kcmil
  • Conductor - Copper Str Tap Range: 1/0 -750 kcmil
  • Country of Origin: US
  • Dimension - Height fraction: 3-83/100 in
  • Dimension - Height inch: 3.82 in
  • Dimension - L Length Overall mm: 129 mm
  • Dimension - Length Overall inch: 5.06 in
  • Dimension - Width fraction: 3-1/2 in
  • Dimension - Width inch: 3.50 in
  • Dimension - Width mm: 89 mm
  • Each - Height: 3.82 in
  • Each - Length: 5.06 in
  • Each - Width: 3.5 in
  • Industry Standard(s): UL 486A-486B
  • Installation Torque Recommended in-lb: 600 LBS/in
  • Plated: N
  • Plating Type: Tin
  • Product Type: Mechanical
  • Rating - Minimum Voltage: 110
  • Show Add To ProjectList: Yes
  • Standards - Industry Standards Met: UL 486A-486B
  • Standards - RoHS Compliance Status: EX
  • Trade Name: POLYTAP™
  • Application: For All Copper And Aluminum Combinations
  • Special Features: Features: Wide Range-Taking Tin-Plated Aluminum Parallel Clamp And Insulating Cover Assembly For Industrial And Multiple Story Structure Applications, Only Six Connectors Cover The Entire 14 AWG Solid To 750 KCMIL Range, Covers Having Flexible Fingers That Conform To Conductor, Fully Insulating The Connection, UL486B Listed For 600 V Maximum 90 DEG C Service, Cover And Connector Are Packaged Together, No Taping Required, Conductor Size (run - Range): 500 - 750 KCMIL, Conductor Size (tap Range): 1/0 AWG - 750 KCMIL, Torque: 600 IN-LB
  • Standard: UL 486A-486B
  • Sub Brand: POLYTAP
  • Temperature Rating: 194
  • Type: KPU-AC

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Listed Direct Burial: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181062452
Item Long Description Gutter Tap, 500-750 kcmil (Run), 1/0 AWG (Str)-750 kcmil (Tap), Al/Cu Rated.
GTiN 00781810624524
Finish Tin Plated
Size 3-7/8 IN Height X 3-1/2 IN Width X 5-1/16 IN Length
Type KPU-AC
Material Aluminum
Conductor Size Run: 500, 600, 750 KCMIL
Applications For All Copper And Aluminum Combinations
Temperature Rating 194
Family Brand Name Burndy
Tap Size 4/0, 2/0, 3/0, 1, 1/0 AWG, 250, 300, 350, 400, 500, 600, 750 KCMIL
Sub Brand POLYTAP
Length 5.06 in
Width 3.50 in
Height 3.82 in
Connection Type Tap
Plating Type Tin
Plated? No
CSA No
Max Voltage 600 V
