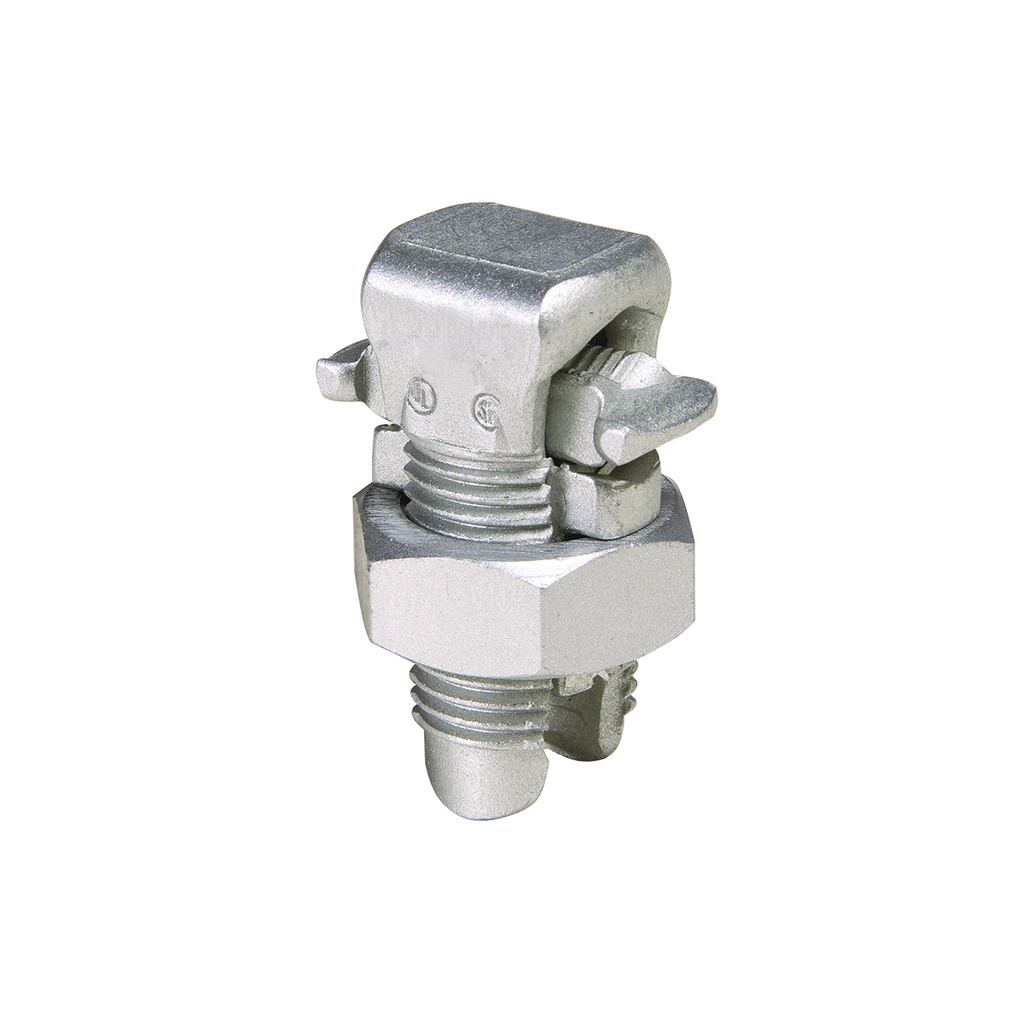

BUR KSA350 TRITAP SERVIT 350-4STR
Product image thumbnail 0
Product image thumbnail 1
$49.01/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # KSA350
North Coast Part # 157614

Specifications

General

  • Application: For All Combinations of Aluminum to Aluminum, Aluminum to Copper and Copper to Copper, Aluminum Alloy Tin Plated
  • Hardware Type: 1 3/8-12 UNF
  • Installation Torque Recommended in-lb: 650 LBS/in
  • Material: Aluminum Alloy
  • Plated: Y
  • Plating Type: Tin
  • Sub Brand: TRITAP, SERVIT
  • Temperature Rating: 194
  • Trade Name: TRITAP™ SERVIT®
  • Type: KSA
  • UPC: 781810183526
  • UPC 12 Digit: 7818101835266

Dimensions

  • Dimension - B Length fraction: 2-1/6 in
  • Dimension - B Length inch: 2.18 in
  • Dimension - Bolt Size inch: 1.38 in
  • Dimension - Cross Flats inch: 1.69 in
  • Dimension - Height fraction: 1-1/2 in
  • Dimension - Height inch: 1.50 in
  • Dimension - L Length Overall mm: 82 mm
  • Dimension - Length Overall inch: 3.24 in
  • Dimension - Width inch: 1.50 in
  • Dimension - Width mm: 38 mm

Electrical Ratings

  • Rating - Minimum Voltage: 600

Conductor Related

  • Conductor - AL Str Run: 1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil
  • Conductor - AL Str Run Range: 1/0 AWG-350 kcmil
  • Conductor - AL Str Tap: 4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil
  • Conductor - AL Str Tap Range: 4 AWG-350 kcmil
  • Conductor - Copper Solid Tap: 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
  • Conductor - Copper Solid Tap Range: 8 AWG-2 AWG
  • Conductor - Copper Str Run: 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil
  • Conductor - Copper Str Run Range: 1/0 -350 kcmil
  • Conductor - Copper Str Tap: 4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil
  • Conductor - Copper Str Tap Range: 4 AWG-350 kcmil

Certifications and Compliance

  • Certification - CSA Approved: Yes
  • Certification - ETL: No
  • Certification - UL Listed Direct Burial: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Industry Standard(s): UL468A-468B
  • Standards - Industry Standards Met: UL468A-468B
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Logistics

  • Minimum Pack Quantity: 1

Conductor Type

  • AL C Str-Run
  • CU C Str-Run
  • CU C Solid-Run
  • AL C Str-Tap
  • CU C Str-Tap
  • CU C Solid-Tap

Overview

UPC 78181018352
GTiN 00781810183526
Finish Tin Plated, Galvanic/Electrolytic Zinc Plated
Type KSA
Material High Strength Aluminum
Applications For All Combinations of Aluminum to Aluminum, Aluminum to Copper and Copper to Copper, Aluminum Alloy Tin Plated
Temperature Rating 90 C
Family Brand Name Burndy
Conductor Type Stranded Aluminum, Stranded and Solid Copper (Run and Tap)
Blade Dimensions 3.62 in L x 1.73 in W
Sub Brand Tritap, Servit
Length 3.24 in
Width 1.50 in
Height 1.50 in
Plating Type Tin
Plated? Yes
CSA Yes
