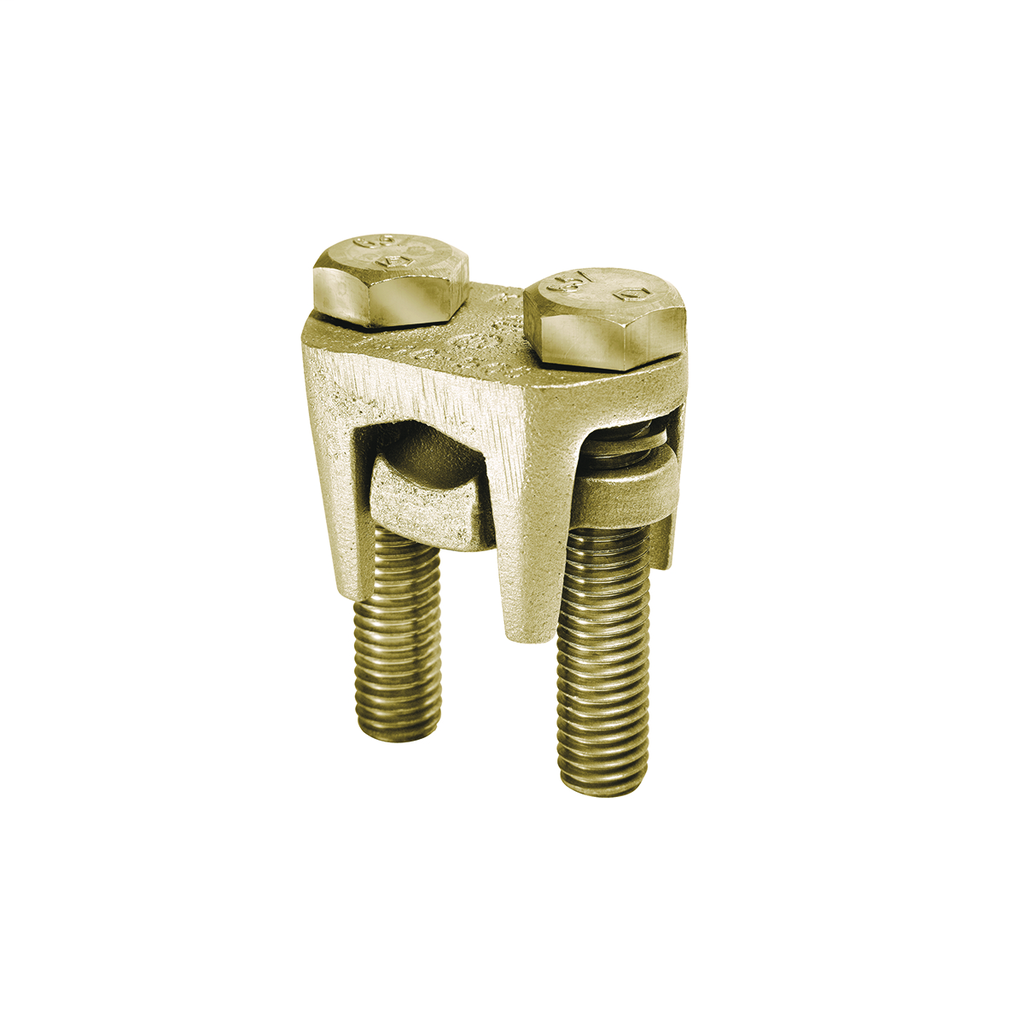

BUR KVS34 500R-500T CU 2BLT CONN

Specifications

General

• Application: For Copper, Copperweld
• Installation Torque Recommended in-lb: 375 LBS/in
• Material: Copper
• Plated: N
• Plating Type: Unplated
• Sub Brand: OKLIP
• Trade Name: OKLIP™
• Type: KVS, Compact
• UPC: 781810063200
• UPC 12 Digit: 7818100632000

Dimensions

• Dimension - Height inch: 2.65 in
• Dimension - Stud Size inch: 1/2 in
• Dimension - Width inch: 2.20 in

Conductor Related

• Conductor - Copper Str Run Range: 400 kcmil - 500 kcmil
• Conductor - Copper Str Tap Range: 10 str. - 500 kcmil

Certifications and Compliance

• Certification - CSA Approved: No
• Certification - ETL: No
• Certification - UL Recognized: No
• Certification - cULus: No
• Industry Standard(s): UL486C
• Standards - Industry Standards Met: UL486C
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes

Logistics

• Minimum Pack Quantity: 1

Conductor Type

• CU C Str-Run
• CU C Str-Tap
• CU Weld C Solid-Run
• CU Weld C Solid-Tap
