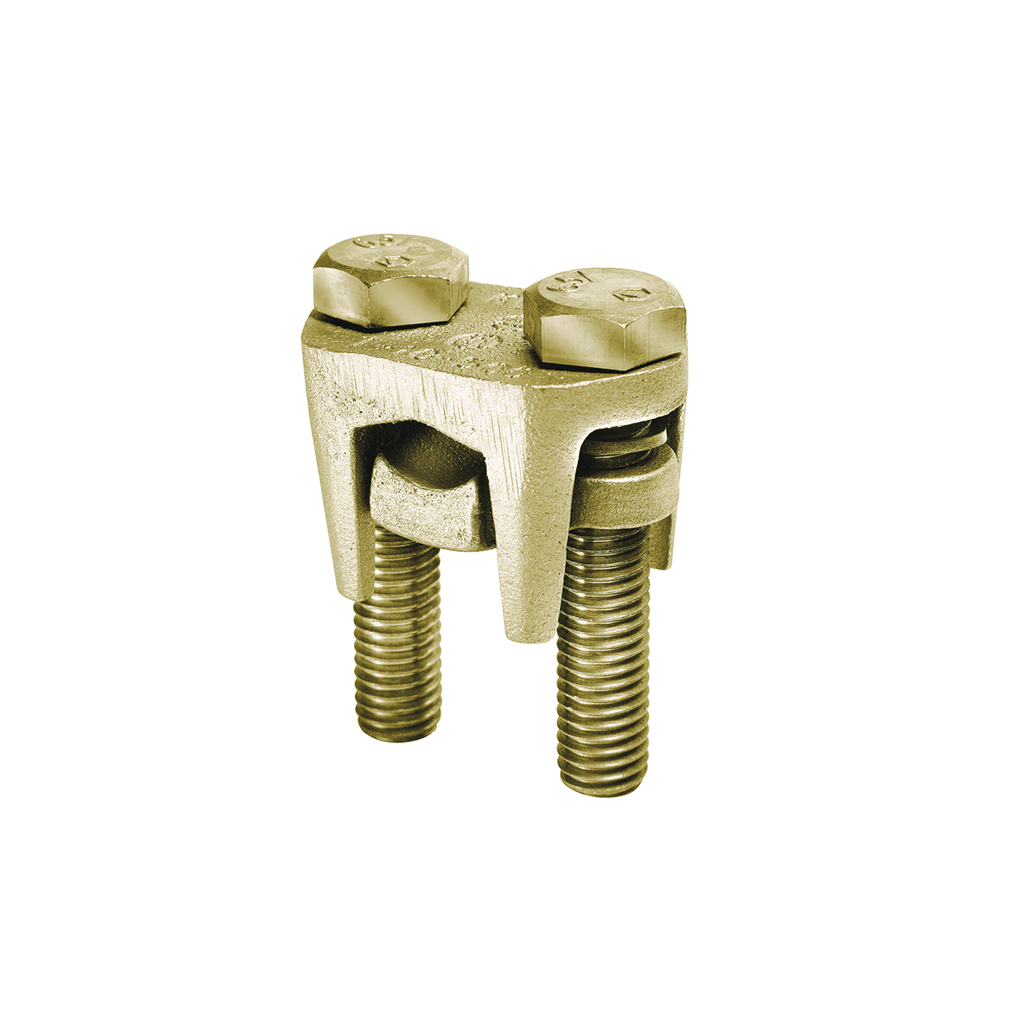

BUR KVS40 80R-800T CU 2BLT CONN
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$74.90/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # KVS40
North Coast Part # 161721

Features

  • Compact, Two-Piece, High Strength, High Copper Alloy BURNDY OKLIP Recommended For Heavy Duty Connections, Neoprene Rings Hold DURIUM Bolts In Place During Installation, Installed With Ordinary Wrench, Installation Torque: 500 IN-LB, Conductor Type: Run: Copperweld, Commercial Stranded Copper, Tap: Copperweld, Commercial Stranded Copper, Conductor Spacer: No

Specifications

  • Conductor - Copper Str Run Range: 400 - 800 kcmil
  • Conductor - Copper Str Tap Range: 3/0 str. - 800 kcmil
  • Country of Origin: US
  • Dimension - Height inch: 3.19 in
  • Dimension - Stud Size inch: 1/2 in
  • Dimension - Width inch: 2.50 in
  • Each - Height: 3.19 in
  • Each - Length: 1.62 in
  • Each - Width: 2.5 in
  • Industry Standard(s): UL486C
  • Installation Torque Recommended in-lb: 500 LBS/in
  • Plated: N
  • Plating Type: Unplated
  • Product Type: Mechanical
  • Show Add To ProjectList: Yes
  • Standards - Industry Standards Met: UL486C
  • Standards - RoHS Compliance Status: CM
  • Trade Name: OKLIP™
  • Sub Brand: OKLIP

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181006390
Item Long Description Compact, two-piece, high strength, high copper alloy BURNDY OKLIP recommended for heavy duty connections. Neoprene rings hold DURIUM bolts in place during installation.Installed with ordinary wrench.Recommended tightening torque:500 in-lb.
GTiN 00781810063903
Finish Copper Plated
Type KVS
Material Copper
Applications For Copper And Copperweld, Heavy Duty Connections
Family Brand Name Burndy
Sub Brand OKLIP
Width 2.50 in
Height 3.19 in
Plating Type Unplated
Plated? No
CSA No
