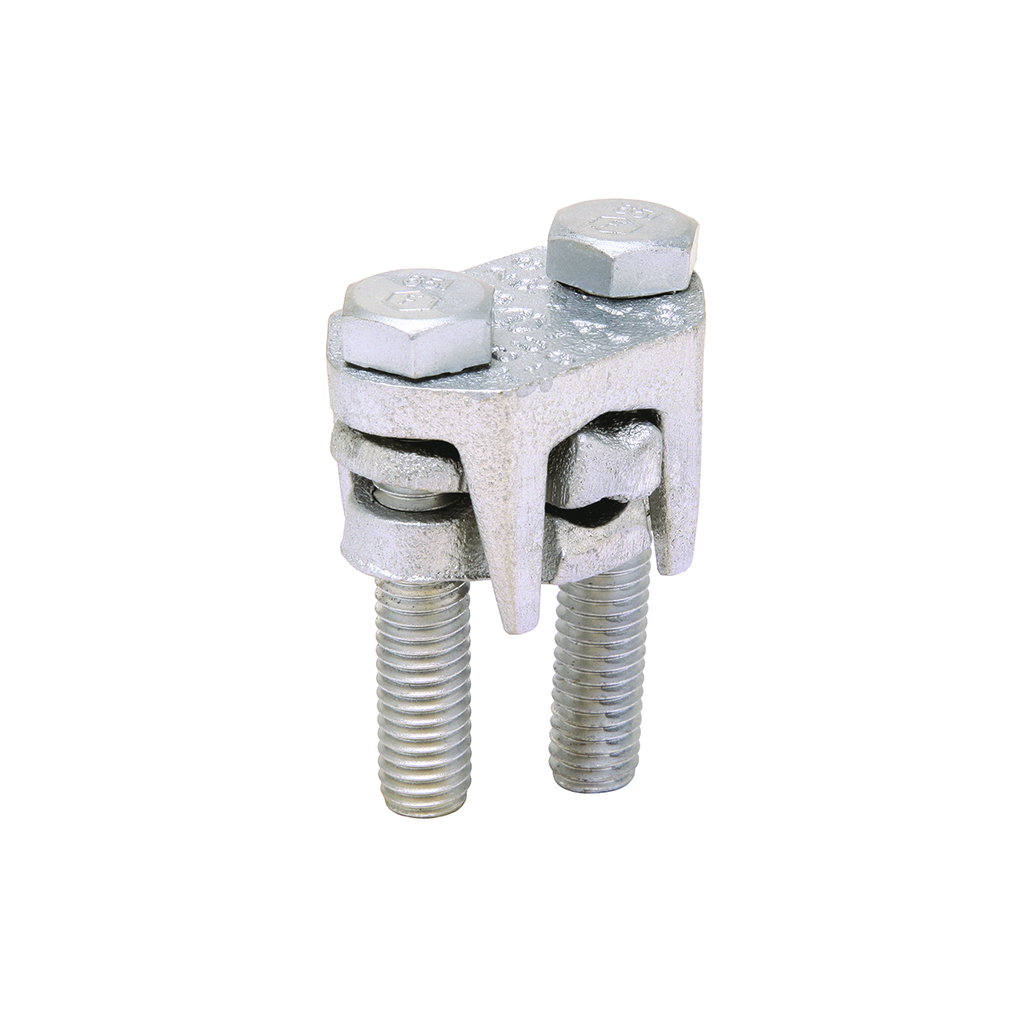

BUR KVSU26 UNIV OKLIP 2-2/0/6-2/0
Product image thumbnail 0
Product image thumbnail 1
$32.40/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # KVSU26
North Coast Part # 825175

Specifications

General

  • Application: For All Combinations of Copper, Aluminum, ACSR, AAAC And 5005, Heavy Duty Connections
  • Installation Torque Recommended in-lb: 180 LBS/in
  • Material: Copper
  • Plated: Y
  • Plating Type: Tin
  • Sub Brand: OKLIP
  • Trade Name: OKLIP™
  • Type: KVSU, Universal
  • UPC: 781810081105
  • UPC 12 Digit: 7818100811055

Dimensions

  • Dimension - Height fraction: 2 in
  • Dimension - Height inch: 2.00 in
  • Dimension - L Length Overall mm: 25 mm
  • Dimension - Length Overall inch: 1.06 in
  • Dimension - Stud Size inch: 5/16 in
  • Dimension - Width fraction: 1-1/2 in
  • Dimension - Width inch: 1.56 in
  • Dimension - Width mm: 38 mm

Conductor Related

  • Conductor - ACSR Str Run Range: 3 ACSR - 2/0 ACSR
  • Conductor - ACSR Str Tap Range: 6 ACSR - 2/0 ACSR
  • Conductor - AL Str Run Range: 2 str. - 2/0 str.
  • Conductor - AL Str Tap Range: 6 str.- 2/0 str.
  • Conductor - Copper Solid Run: 1 AWG;1/0 AWG;2/0 AWG;3/0 AWG
  • Conductor - Copper Solid Run Range: 1 AWG-3/0 AWG
  • Conductor - Copper Solid Tap: 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG
  • Conductor - Copper Solid Tap Range: 6 AWG-3/0 AWG
  • Conductor - Copper Str Run Range: 2 str. - 2/0 str.
  • Conductor - Copper Str Tap Range: 6 str.- 2/0 str.
  • Conductor - CopperWeld Solid Run Range: 1 sol.- 3/0 sol.
  • Conductor - CopperWeld Solid Tap Range: 6 sol.- 3/0 sol.
  • Conductor - Galvanized Steel Str Run Range: 5/16 in-7/16 in
  • Conductor - Galvanized Steel Str Tap Range: 3/16 in-7/16 in

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: EX
  • UL Listed: No

Logistics

  • Minimum Pack Quantity: 1

Conductor Type

  • AL C Str-Run
  • AL C Str-Tap
  • CU C Str-Run
  • CU C Str-Tap
  • AAAC C 5005-Run
  • AAAC C 5005-Tap
  • AAAC C 6201-Run
  • AAAC C 6201-Tap
  • ACSR C Str-Run
  • ACSR C Str-Tap
  • CU C Solid-Run
  • CU C Solid-Tap
  • GAL Steel C Str-Run
  • GAL Steel C Str-Tap
  • Cu Weld Sol.- Run
  • Cu Weld Sol.- Tap

Overview

UPC 78181008110
GTiN 00781810081105
Finish Tin Plated
Type KVSU, Universal
Material Copper
Applications For All Combinations of Copper, Aluminum, ACSR, AAAC And 5005, Heavy Duty Connections
Bolt Size 5/16 IN
Family Brand Name Burndy
Sub Brand OKLIP
Length 1.06 in
Width 1.56 in
Height 2.00 in
Plating Type Tin
Plated? Yes
CSA No
