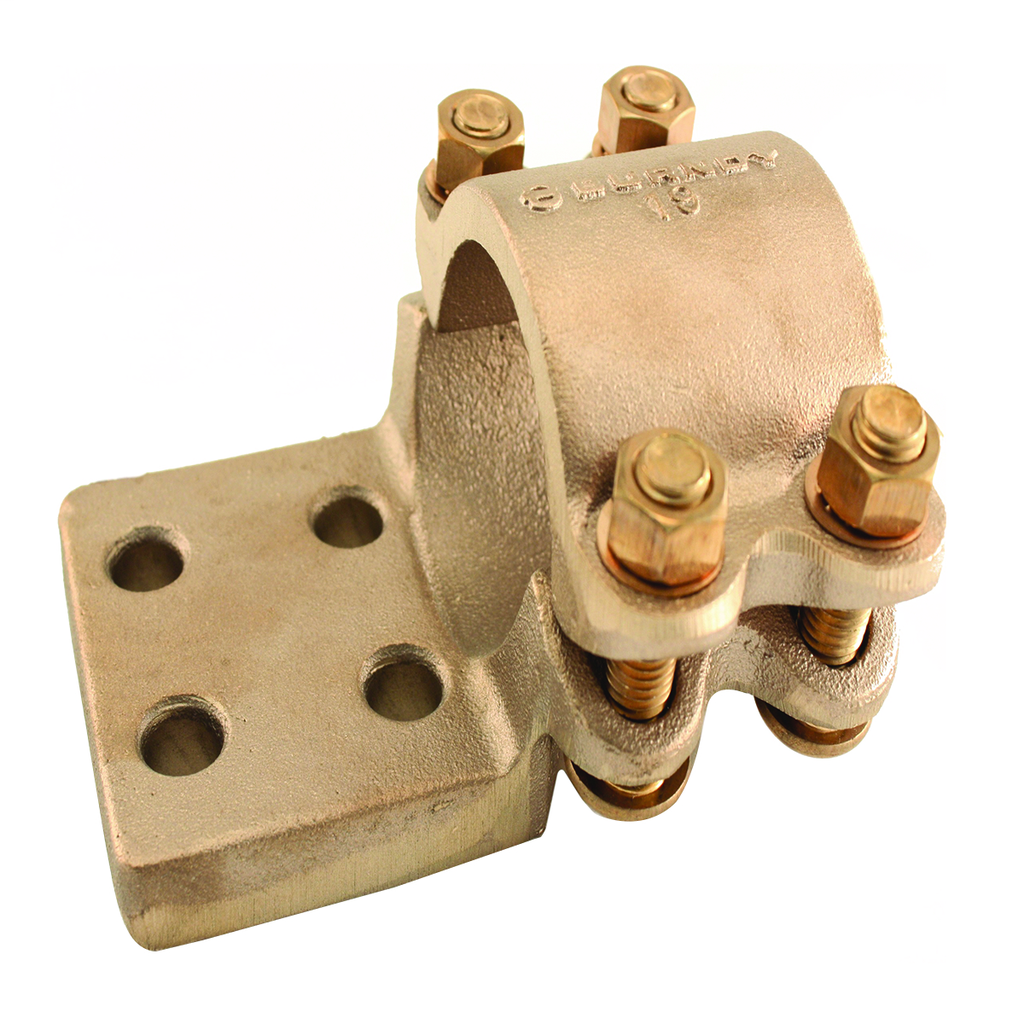

Burndy NA132N Terminal

Specifications

General

• Application: Substation
• Clamping Element Design: Body and Cap
• Connector Type: Terminal
• Material: Copper Alloy
• Material - Hardware: DURIUM™ Silicon Bronze
• One Wrench Installation: Y
• Physical Attribute - Number of Holes: 2
• Physical Attribute - Pad Alignment: Offset
• Physical Attribute - Pad Configuration: 1.5 x 3 - 2 holes
• Plated: N
• Plating Type: Unplated
• UPC: 781810002308
• UPC 12 Digit: 7818100023088

Dimensions

• Dimension - B Length inch: 2.00 in
• Dimension - D inch: 3.00 in
• Dimension - F Width Center to Center inch: 1.75 in
• Dimension - Height fraction: 1-3/4
• Dimension - Height inch: 1.75 in
• Dimension - Hole Size fraction: 9/16
• Dimension - L Length Overall mm: 133 mm
• Dimension - Length Overall inch: 5.25 in
• Dimension - N inch: 0.63 in
• Dimension - Pad Width inch: 1.50 in
• Dimension - Width fraction: 2-1/4 in
• Dimension - Width inch: 2.25 in
• Dimension - Width mm: 57 mm

Electrical Ratings

• Rating - KVA: 230 kV

Conductor Related

• Conductor - Connection Combination: Tube to Flat
• Conductor - Copper Tube EH Size: 1/2 IPS
• Conductor - Copper Tube EH Size Range: 1/2 IPS
• Conductor - Copper Tube Std Size: 1/2 IPS
• Conductor - Copper Tube Std Size Range: 1/2 IPS
• Number Of Conductors: 1

Certifications and Compliance

• Certification - CSA Approved: No
• Standards - RoHS Compliance Status: EX

Logistics

• Minimum Pack Quantity: 3

Conductor Type

• CU Tube Std-Size
• CU Tube EH-Size
