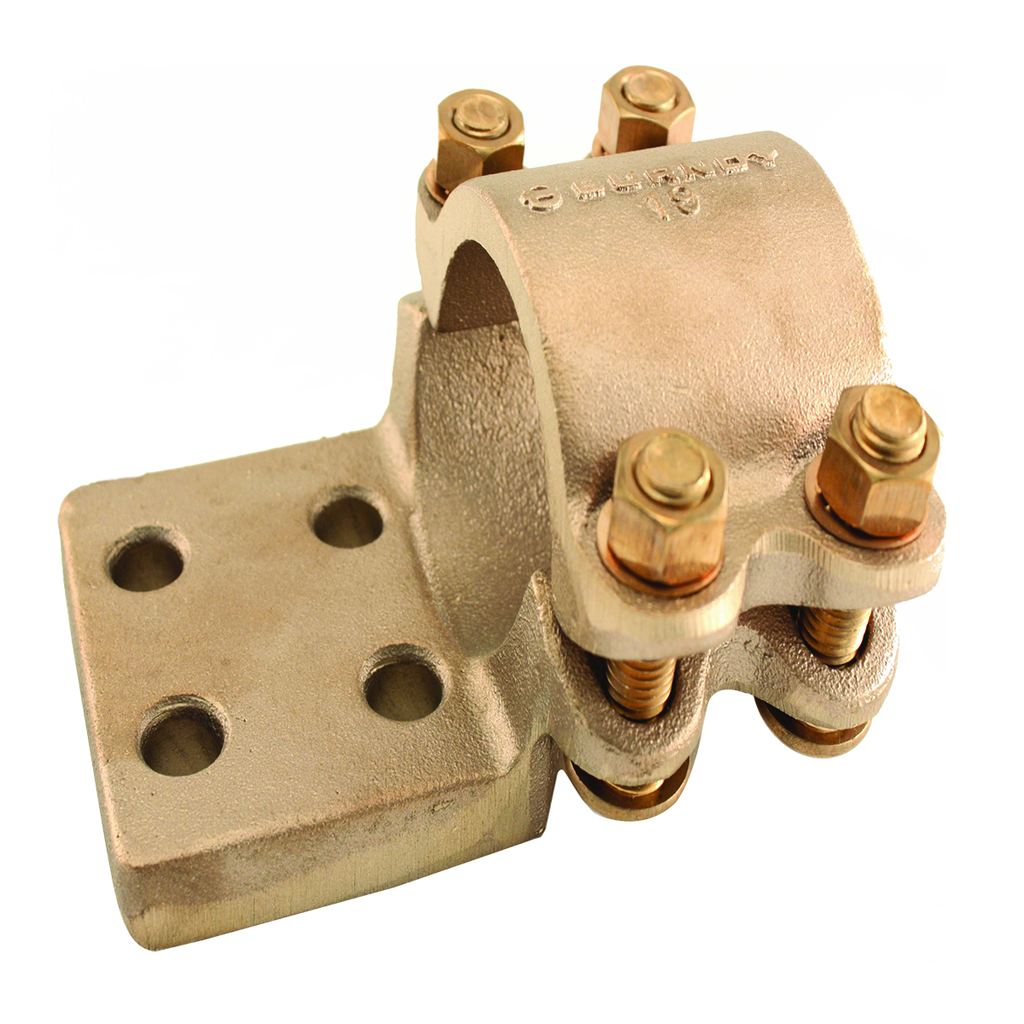

Burndy NA184N 3.13 Inch Height Terminal

Specifications

• Application: Substation
• Clamping Element Design: Body and Cap
• Connector Type: Terminal
• Item Type: 4D
• Material: Copper Alloy
• Material - Hardware: DURIUM™ Silicon Bronze
• One Wrench Installation: Y
• Physical Attribute - Number of Holes: 4
• Physical Attribute - Pad Alignment: Offset
• Physical Attribute - Pad Configuration: 3.13 x 3.13 - 4 holes
• Plated: N
• Plating Type: Unplated
• UPC: 781810002490
• UPC 12 Digit: 7818100024900
• Dimension - B Length inch: 2.69 in
• Dimension - D inch: 3.13 in
• Dimension - F Width Center to Center inch: 1.75 in
• Dimension - Height fraction: 3-1/2
• Dimension - Height inch: 3.13 in
• Dimension - Hole Size fraction: 9/16
• Dimension - L Length Overall mm: 151 mm
• Dimension - Length Overall inch: 5.94 in
• Dimension - N inch: 0.63 in
• Dimension - Pad Width inch: 3.13 in
• Dimension - Width inch: 4.63 in
• Dimension - Width mm: 118 mm
• Rating - KVA: 230 kV
• Conductor - Connection Combination: Tube to Flat
• Conductor - Copper Tube EH Size: 2 IPS
• Conductor - Copper Tube EH Size Range: 2 IPS
• Conductor - Copper Tube Std Size: 2 IPS
• Conductor - Copper Tube Std Size Range: 2 IPS

Conductor Type

• CU Tube Std-Size
• CU Tube EH-Size

• Number Of Conductors: 1
• Certification - CSA Approved: No
• Certification - ETL: No
• Certification - UL Recognized: No
• Certification - cULus: No
• Standards - RoHS Compliance Status: EX
• UL Listed: No
