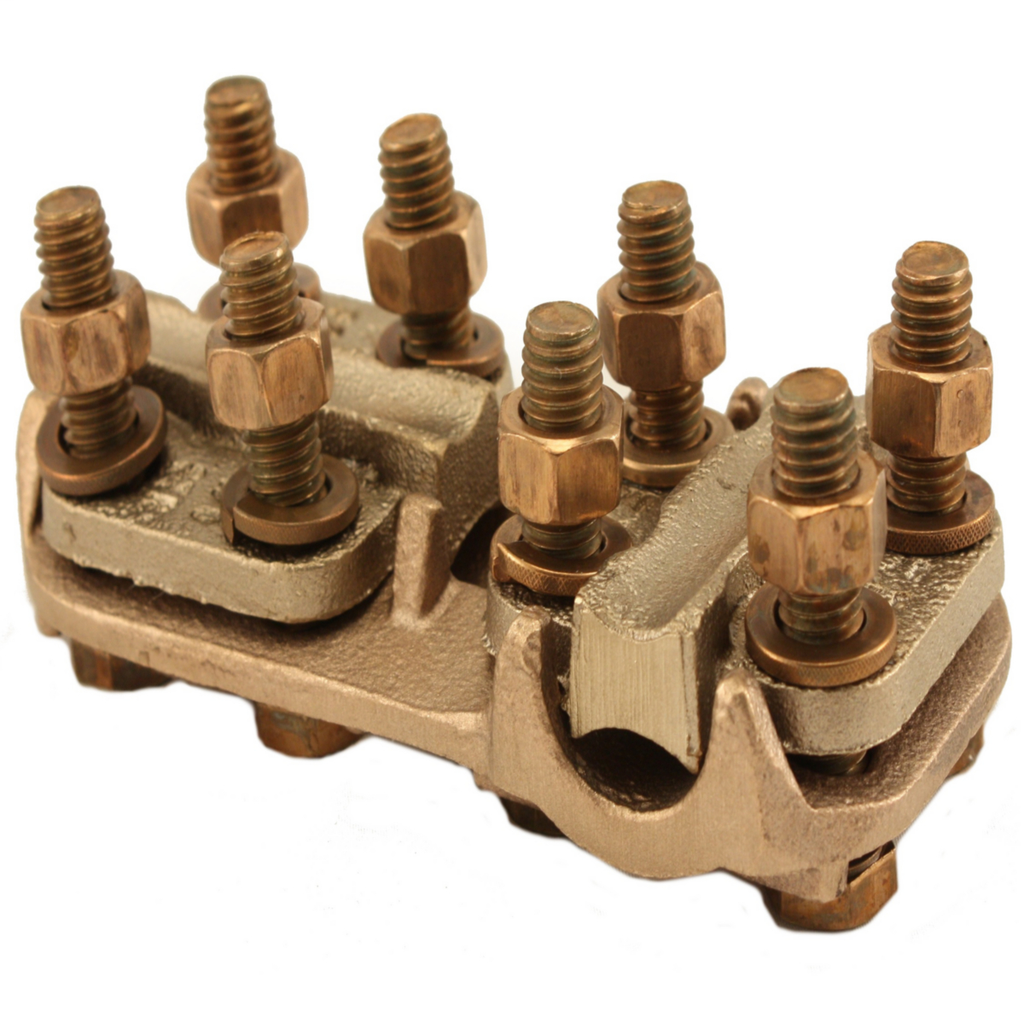

Burndy NSNT3434 3/8 Inch 1/0 AWG to 500 MCM Run 1/0 AWG to 500 MCM Tap Copper Standard Cable to Cable T-Connector

Specifications

General

• Application: Substation
• Connector Type: T-Connector
• Installation Torque Recommended in-lb: 240 LBS/in
• Material: Copper Alloy, Cast
• Material - Hardware: Silicon Bronze
• One Wrench Installation: Y
• Physical Attribute - Number of Run Conductors: 1
• Physical Attribute - Number of Tap Conductors: 1
• Plated: N
• Plating Type: Unplated
• Type: Tube to Cable Couplers
• UPC: 781810002797
• UPC 12 Digit: 7818100027977

Dimensions

• Dimension - B Length fraction: 2-19/50 in
• Dimension - B Length inch: 2.38 in
• Dimension - Height inch: 2.00 in
• Dimension - L Length Overall mm: 123 mm
• Dimension - Length BB inch: 2.38 in
• Dimension - Length Overall inch: 4.84 in
• Dimension - Width fraction: 2-1/5 in
• Dimension - Width inch: 2.20 in
• Dimension - Width mm: 56 mm

Electrical Ratings

• Rating - KVA: 230 kV

Conductor Related

• Conductor - Connection Combination: Cable to Cable
• Conductor - Copper Solid Run: 1/0 AWG;2/0 AWG;3/0 AWG
• Conductor - Copper Solid Run Range: 1/0 AWG-3/0 AWG
• Conductor - Copper Solid Tap: 1/0 AWG;2/0 AWG;3/0 AWG
• Conductor - Copper Solid Tap Range: 1/0 AWG-3/0 AWG
• Conductor - Copper Str Run: 4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
• Conductor - Copper Str Run Range: 4/0 AWG-500 kcmil
• Conductor - Copper Str Tap: 4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
• Conductor - Copper Str Tap Range: 4/0 -500 kcmil

Certifications and Compliance

• Certification - CSA Approved: No
• Certification - ETL: No
• Certification - UL Recognized: No
• Certification - cULus: No
• Standards - RoHS Compliance Status: EX
• UL Listed: No

Logistics

• Minimum Pack Quantity: 3

Conductor Type

• CU C Str-Run
• CU C Solid-Run
• CU C Str-Tap
• CU C Solid-Tap
• CU Tube Std-Run
