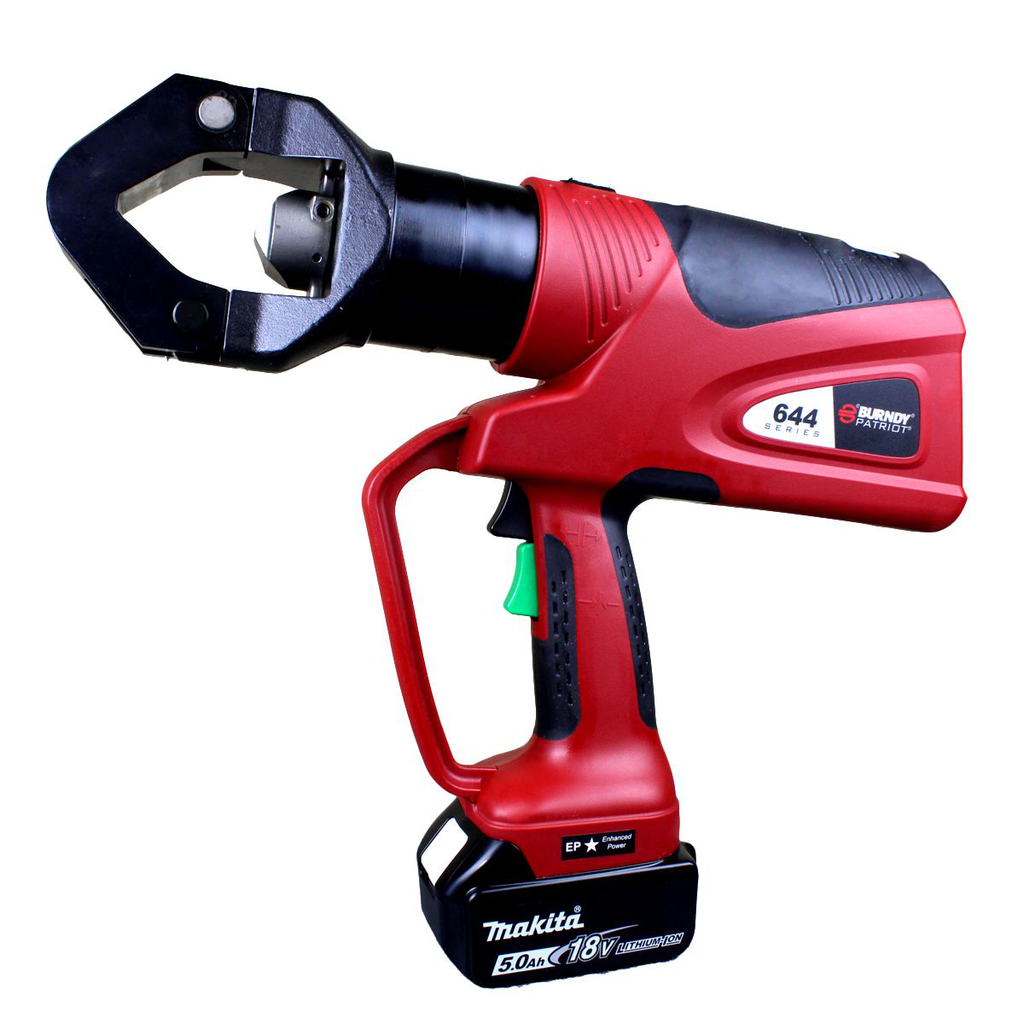

BUR PAT644L5 11-TON ONE-CRIMP CRIMP
Product image thumbnail 0
Product image thumbnail 1
$6,660.10/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # PAT644L5
North Coast Part # 1828983

Features

  • Dieless System with range taking capability
  • #4 AWG -1000 kcmil Copper and Aluminum,#4 AWG - 556.5 kcmil ACSR, AAC, AAAC, ACAR
  • 355° Rotatable latch head
  • Audible pop-off indicates properly completed crimps
  • Ergonomically balanced

Specifications

  • Application - For Use On: Copper, Aluminum, ACSR Terminals and Splices, Cable Pulling Heads
  • Buy American Compliant: No
  • Container Type: Hard Case
  • Country of Origin: US
  • Crimp Force Capacity: 11 ton
  • Die Type: Dieless
  • Dimensions: 15.62 in x 3.25 in x 14.12 in
  • Each - Height: 14.1 in
  • Each - Length: 15.6 in
  • Each - Width: 3.2 in
  • Height: 14.12 in
  • Length: 15.62 in
  • Operating Voltage: 18 VDC
  • Power Source: 120V-AC Charger
  • Product Type: 11-Ton Single Indenter
  • Show Add To ProjectList: Yes
  • Trade Name: PATRIOT®
  • Application: Crimping
  • Battery: 5.0Ah 18V Li-Ion (Accepts 2.0Ah-6.0Ah Makita LI Batteries)
  • Size: 15.62 in x 3.25 in x 14.12 in
  • Sub Brand: PATRIOT® CRIMPER
  • Type: Crimper
  • Warranty: 5 year limited warranty, Lifetime warranty on INFINITY DRIVE®, 3 year warranty on batteries and charger
  • Width: 3.25 in

Certifications

  • EU RoHS Indicator: Under Review

Overview

UPC 62194547097
Item Long Description PATRIOT 11-Ton Dieless Latch Head Battery Actuated Crimper, Hydraulic Self-Contained, (2) 5.0Ah 18V Li-ion Batteries, 120V-AC Charger, Hard Case.
GTiN 00621945470972
Size 15.62 in x 3.25 in x 14.12 in
Type Crimper
Applications Crimping
Family Brand Name Burndy
Sub Brand PATRIOT CRIMPER
Length 15.6 in
Width 3.2 in
Height 14.1 in
Weight 15.9 lb
CSA No
