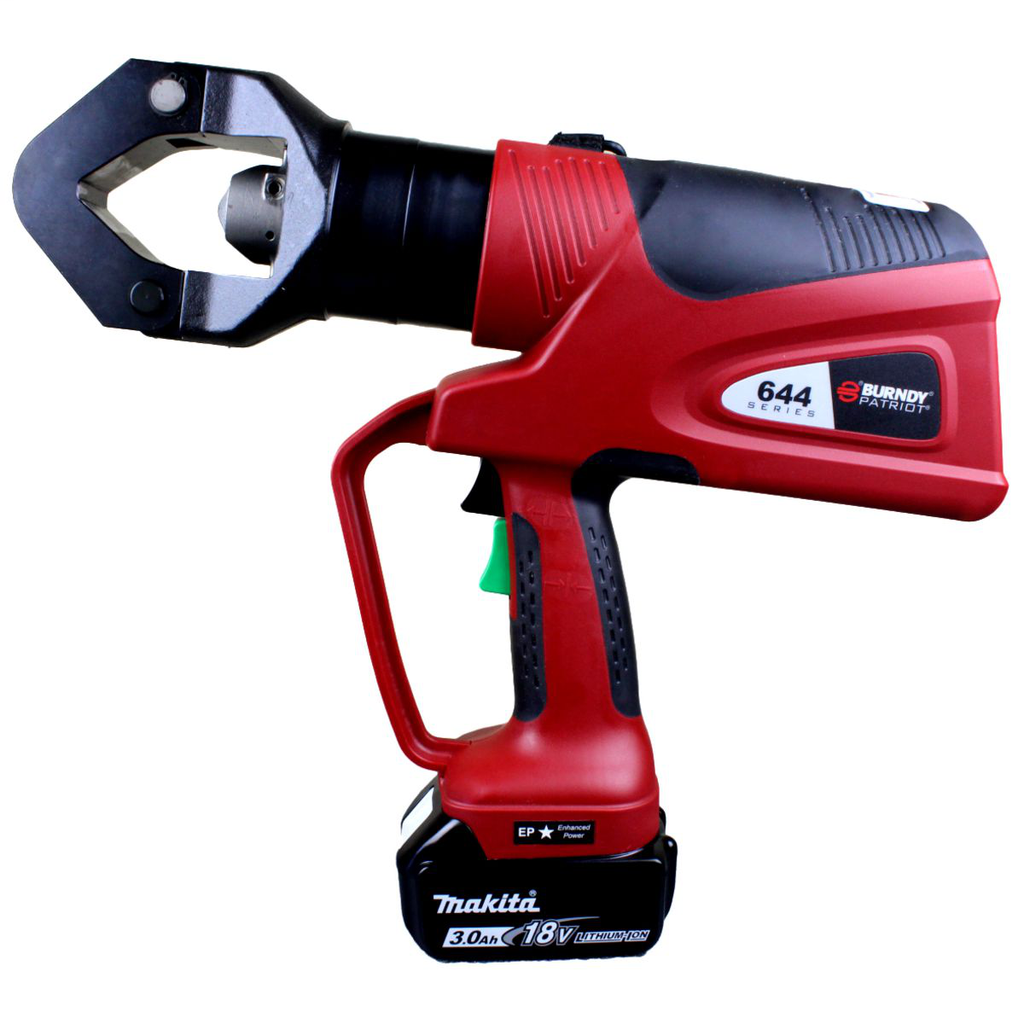

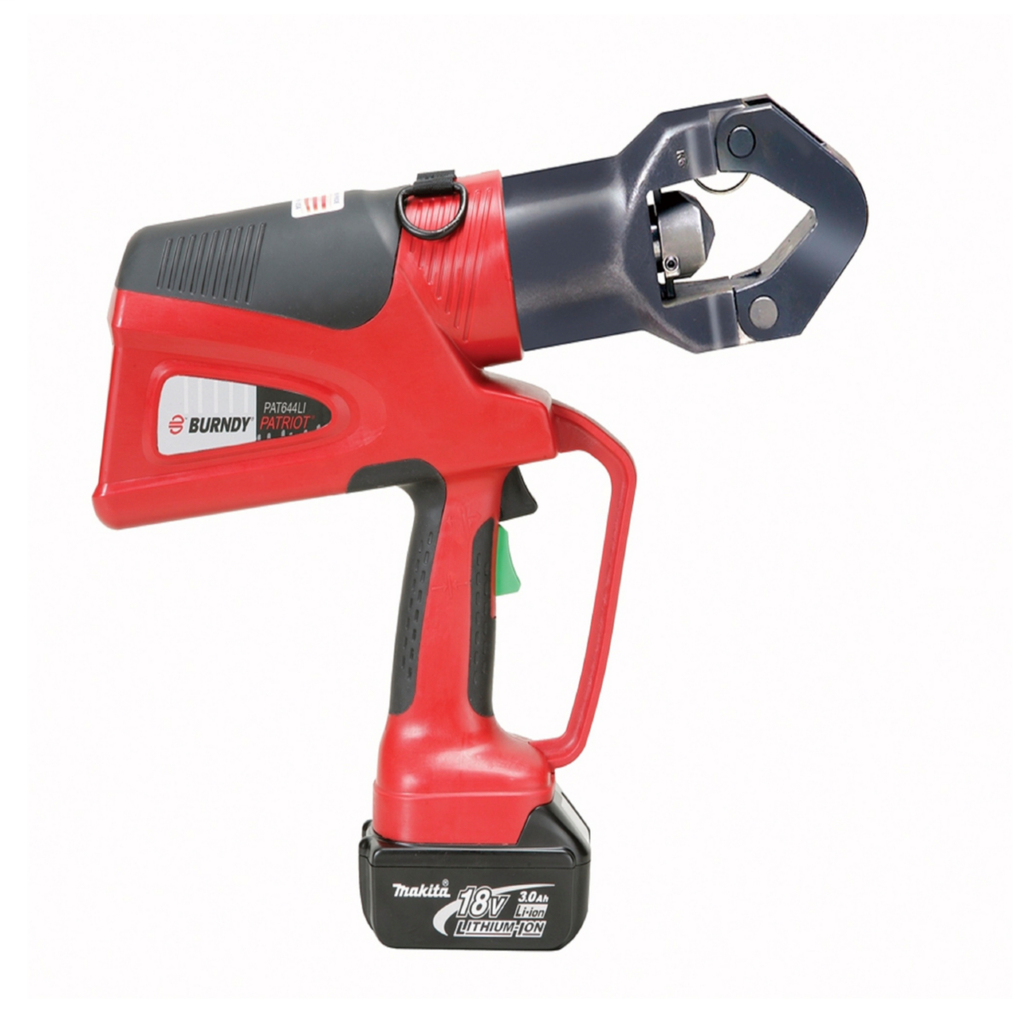

BUR PAT644LI CRIMPER, 11 TON, DIELE
Product image thumbnail 0
Product image thumbnail 1
$5,859.58/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # PAT644LI
North Coast Part # 755355

Features

Dieless system,Range taking capabilities,355° head rotation, Overmolded handle for comfort and improved grip, allows for one-handed operation for advance, retract and hold, 18-volt Lithium-Ion batteries provide 2.5 times more charge/discharge cycles than traditional Ni-Cd batteries and provide 430 percentage more life time work5 year limited warranty, 3 year on batteries and charger, Lifetime warranty on INFINITY DRIVE®, 5 Year Limited Warranty on Tool, 3 Year on Batteries and 1 year warranty on the Charger

  • Dieless system eliminates the need to purchase and maintain dies
  • Dieless system allows connectors and splices to become range taking
  • 355° head rotation
  • Ergonomically balanced

Specifications

Application

  • For use on connectors designed for following conductor: #6 - 1000 kcmil Copper
  • #6 - 900 kcmil Aluminum
  • For Use On: 6 AWG - 1000 KCMIL Copper (YA-L, YA-2LN, YA, YA-2N, YA-L-2TC, YAB-4N, YA-L-TC, YA-2L, YA-4N Terminals And YS-L, YS, YS-T Splices), 6 AWG - 750 KCMIL Aluminum (YA-A, YA-A-TN Terminals And YS-Asplices), 6 AWG - 750 KCMIL Aluminum (HYPLUG AYP, AYPO)
  • Battery Type: 5.0 Ah Li-Ion 3.0 Ah Li-Ion
  • Crimp Force Capacity: 11 ton
  • Die Type: Dieless
  • Recharge Time: 0.75 h 0.5 h
  • Sub Brand: PATRIOT® CRIMPER
  • Tool Type: Battery Actuated Crimper
  • Trade Name: PATRIOT®
  • Type: Crimpers
  • UPC: 621945470972 781810505489
  • UPC 12 Digit: 7818105054899
  • Height: 14.1 in
  • Length: 15.6 in
  • Weight: 15.9 lb
  • Width: 3.2 in
  • Operating Voltage: 18 VDC
  • Crimping Ranges: Copper #6 - 1000 kcmil, Aluminum #6 - 900 kcmil
  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: EX
  • UL Listed: No

Overview

UPC 78181050548
GTiN 00781810505489
Size 15.62 in x 3.25 in x 14.12 in
Type Crimper
Applications Crimping
Crimping Force 11 TON
Family Brand Name Burndy
Sub Brand PATRIOT CRIMPER
Length 15.6 in
Width 3.2 in
Height 14.1 in
Weight 15.9 lb
CSA No
