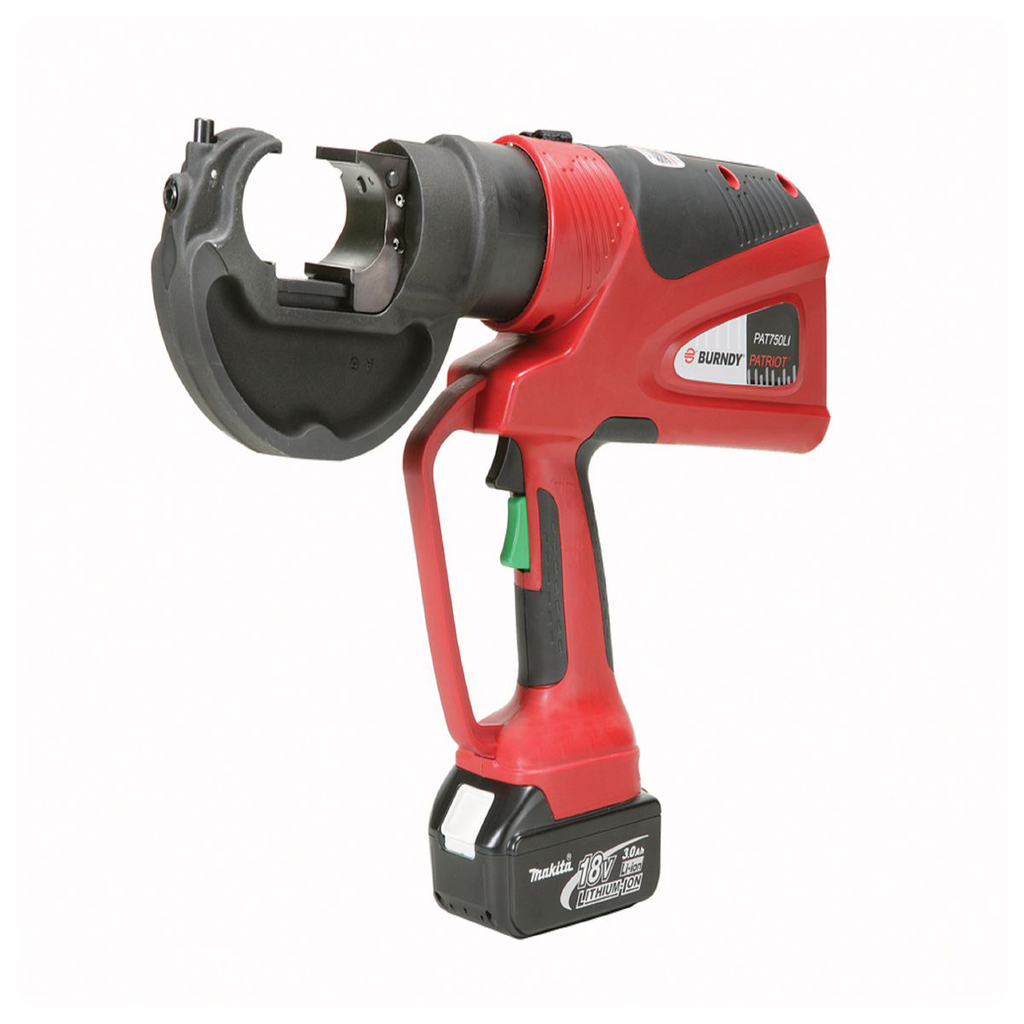

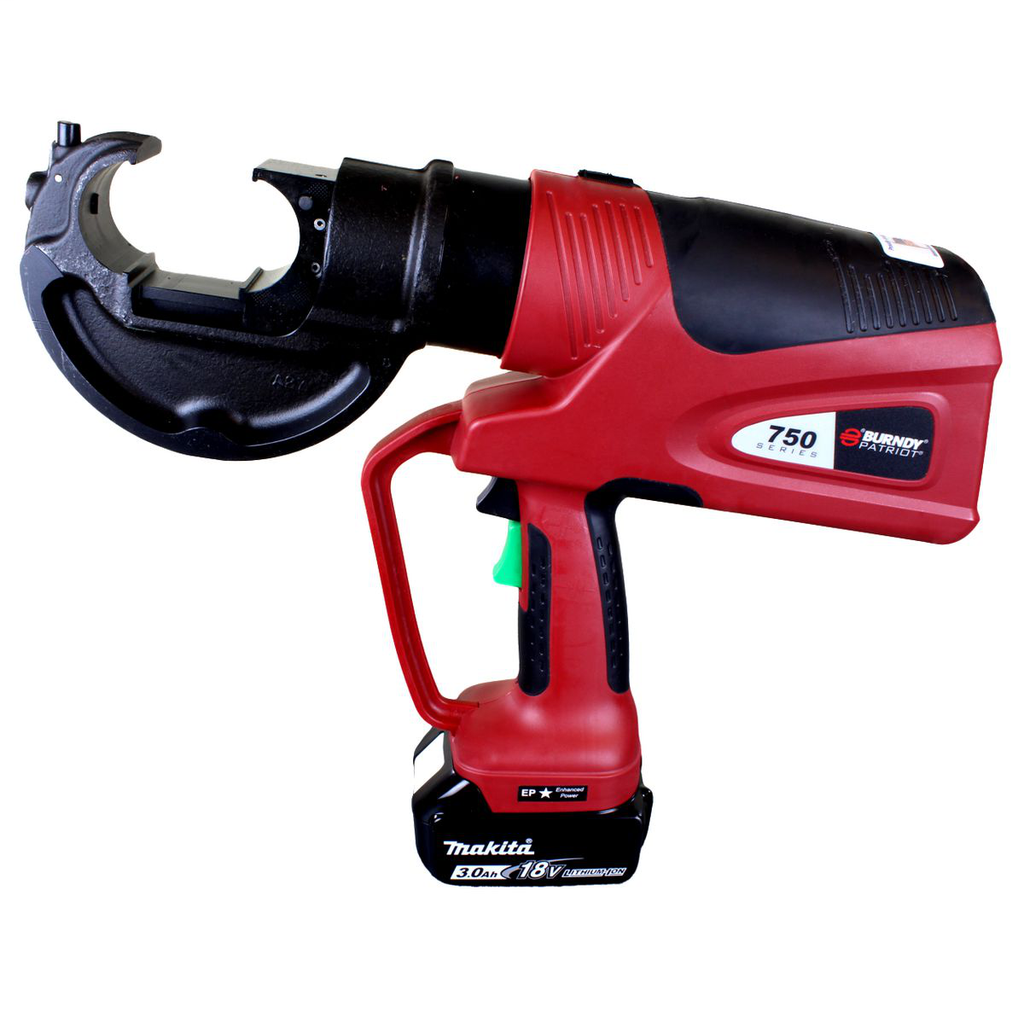

BUR PAT750LI CRIMPER, 12T, 18V LI-I
Product image thumbnail 0
Product image thumbnail 1
$6,204.08/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # PAT750LI
North Coast Part # 675241

Features

Refined hydraulic system for ultra performance,speed and reliability,Field proven electronics for ultimate reliability in the harshest environments5 Year Limited Warranty on Tool, 3 year on batteries/ charger, Lifetime warranty on INFINITY DRIVE®

  • True, one-handed operation for advance, retract, and hold
  • 12 ton output force
  • State of the art crimping head design, 360˚ head rotation
  • Ergonomically balaced tool design
  • Durable High Impact Formed carrying case
  • 5-year limited warranty on tool. 3-year warranty on battery and charger

Specifications

General

  • Application: For Use On: 8 AWG Solid - 500 KCMIL Copper, 8 AWG Solid - 587.2 KCMIL Aluminum, 4 AWG - 556.5 KCMIL ACSR (Tension Sleeves), 14 AWG Solid - 500 KCMIL Copper, 8 AWG - 500 KCMIL Aluminum (Taps), Aerial Cable: 6 AWG - 500 KCMIL, 8 AWG - 750 KCMIL Aluminum And Copper, 4 AWG - 556 KCMIL ACSR (Terminals And Splices), 8 AWG - 500 KCMIL Copper (HYGROUND Cable/Ground Rod)
  • Battery Type: 3.0 Ah Li-Ion
  • Crimp Force Capacity: 12 ton
  • Die Type: U Dies
  • Recharge Time: 0.5 h
  • Sub Brand: PATRIOT® CRIMPER
  • Tool Type: Battery Actuated Crimper
  • Trade Name: PATRIOT®
  • Type: Crimpers
  • UPC: 781810505175
  • UPC 12 Digit: 7818105051755

Dimensions

  • Height: 13.5 in
  • Jaw Width: 1.65 in
  • Length: 15.75 in
  • Weight: 15.7 lb
  • Width: 3.50 in

Electrical Ratings

  • Operating Voltage: 18 VDC

Conductor Related

  • Crimping Ranges: Tension Sleeves: Copper #8 Sol. To 500 kcmil, Aluminum #8 Sol. To 587.2 kcmil, ACSR #4 to 556.5 kcmil; Taps: Copper #14Sol. To 500 kcmil, Aluminum #8 to 500 kcmil; Aerial Cable Copper #6 to 500 kcmil; Terminals & Splices: Copper #8 to 750 kcmil, Aluminum #8 to 750 kcmil, ACSR #4 to 556 kcmil; HYGROUND: Copper #8 to 500 kcmil, Ground Rods 1/2" to 1" Diameter

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: EX
  • UL Listed: No

Overview

UPC 78181050517
GTiN 00781810505175
Size 15.75 in x 3.50 in x 13.50 in
Type Crimper
Connector Type Off-The-Shelf
Applications Crimping
Crimping Force 12 TON
Family Brand Name Burndy
Overall Length 15-3/4 IN
Sub Brand PATRIOT CRIMPER
Length 15.75 in
Width 3.50 in
Height 13.5 in
Weight 15.7 lb
CSA No
