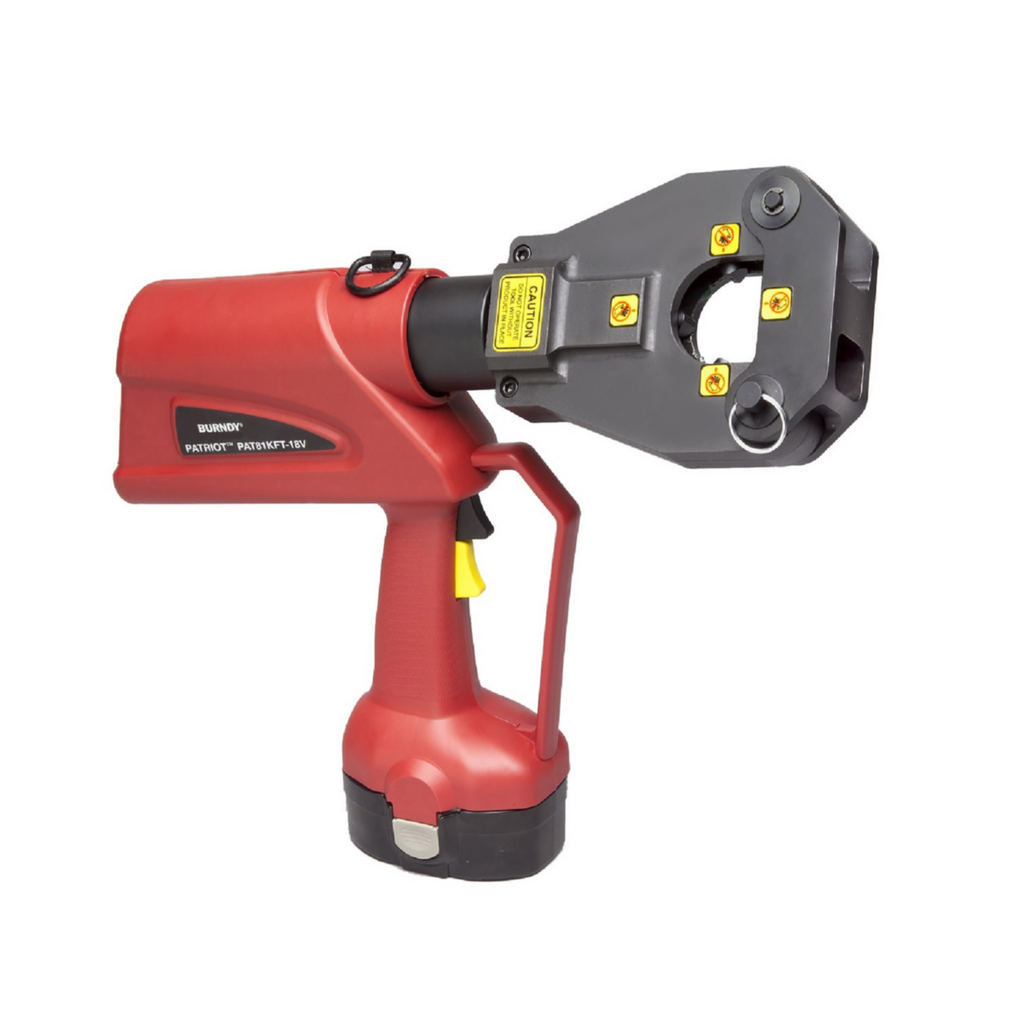

BUR PAT81KFT18V PATRIOT 4-POINT DIE
Product image thumbnail 0
Product image thumbnail 1
$6,054.82/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # PAT81KFT18V
North Coast Part # 332857

Features

Dieless installation system,Advanced high speed pump design5 Year Limited Warranty on Tool, 3 year on batteries/ charger, Lifetime warranty on INFINITY DRIVE®

  • True one handed operation for advance, retract and hold function
  • Rotatable head
  • Long Battery life
  • Ergonomically balanced tool
  • Large handle grip with trigger guard
  • Audible pressure "POP-OFF" valve
  • Durable plastic carry case

Specifications

General

  • Application: For Use On: Copper, Aluminum, Compressed, Compact, Stranded, Solid and Flex Conductors, Installs Splices, Taps and Terminations: #8 - 1000 kcmil Copper(YA, YA-L, YS, YS-L, YS-T, Y-R ), #8 - 777.7 (750 Nominal Flex Wire Size)kcmil Flex (YA-FX, YAV, YA-L-FX, YS, YSV-FXB),#8 - 750 kcmil Aluminum (YA-A, YS-A), #8 - 750 kcmil Aluminum Pin Adapters (AYP, AYPO)
  • Battery Type: 2.6 Ah Ni-MH
  • Crimp Force Capacity: 6 ton
  • Die Type: Dieless
  • Recharge Time: 0.75 h
  • Sub Brand: PATRIOT® CRIMPER
  • Tool Type: Battery Actuated Dieless Crimper
  • Trade Name: PATRIOT®
  • Type: Crimpers
  • UPC: 781810376980
  • UPC 12 Digit: 7818103769800

Dimensions

  • Height: 13.9 in
  • Length: 17.6 in
  • Weight: 14 lb
  • Width: 3.7 in

Electrical Ratings

  • Operating Voltage: 18 VDC

Conductor Related

  • Crimping Ranges: Copper #8 -1000 kcmil, Copper Flex #8 - 777.7 kcmil, Aluminum #8 - 750 kcmil

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: EX
  • UL Listed: No

Overview

UPC 78181037698
GTiN 00781810376980
Family Brand Name Burndy
Length 17.6 in
Width 3.7 in
Size 17.6 in x 3.7 in x 13.9 in
Type Crimper
Applications Crimping
Height 13.9 in
Weight 14 lb
CSA No
Sub Brand PATRIOT CRIMPER
