Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # PATCUT129ACSR18V
North Coast Part # 761375


  • Special latch head design provides interference free closure for mid-span cuts
  • 180° Head rotation
  • Overmolded handle and ergonomic design
  • One-handed operation for advance, retract and hold


  • Application - For Use On: ACSR, Aluminum, Copper Cable; Ground Rod; Rebar; Soft Steel Bolts; Standard Guy; EHS Guy Strand
  • Container Type: Hard Case
  • Country of Origin: US
  • Crimp Force Capacity: 7 ton
  • Dimensions: 14.50 in x 3.70 in x 12.80 in
  • Each - Height: 15.09 in
  • Each - Length: 23 in
  • Each - Width: 4.28 in
  • Height: 12.80 in
  • Length: 14.50 in
  • Operating Voltage: 18 VDC
  • Power Source: 120V-AC Charger
  • Product Type: ACSR Cutter
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: EX
  • Trade Name: PATRIOT®
  • Warranty: 5 year limited warranty (excluding blades), Lifetime warranty on INFINITY DRIVE®, 1 year warranty on batteries and charger
  • Width: 3.70 in
  • IGS 3D Model Asset Reference URL 2: https://hubbellcdn.com/igs/PATCUT129ACSR18V_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 1: https://hubbellcdn.com/PDF3DFile/PATCUT129ACSR18V_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 3: https://hubbellcdn.com/step3dfile/PATCUT129ACSR18V_MODEL-STEP.zip


  • EU RoHS Indicator: Yes


UPC 78181037080

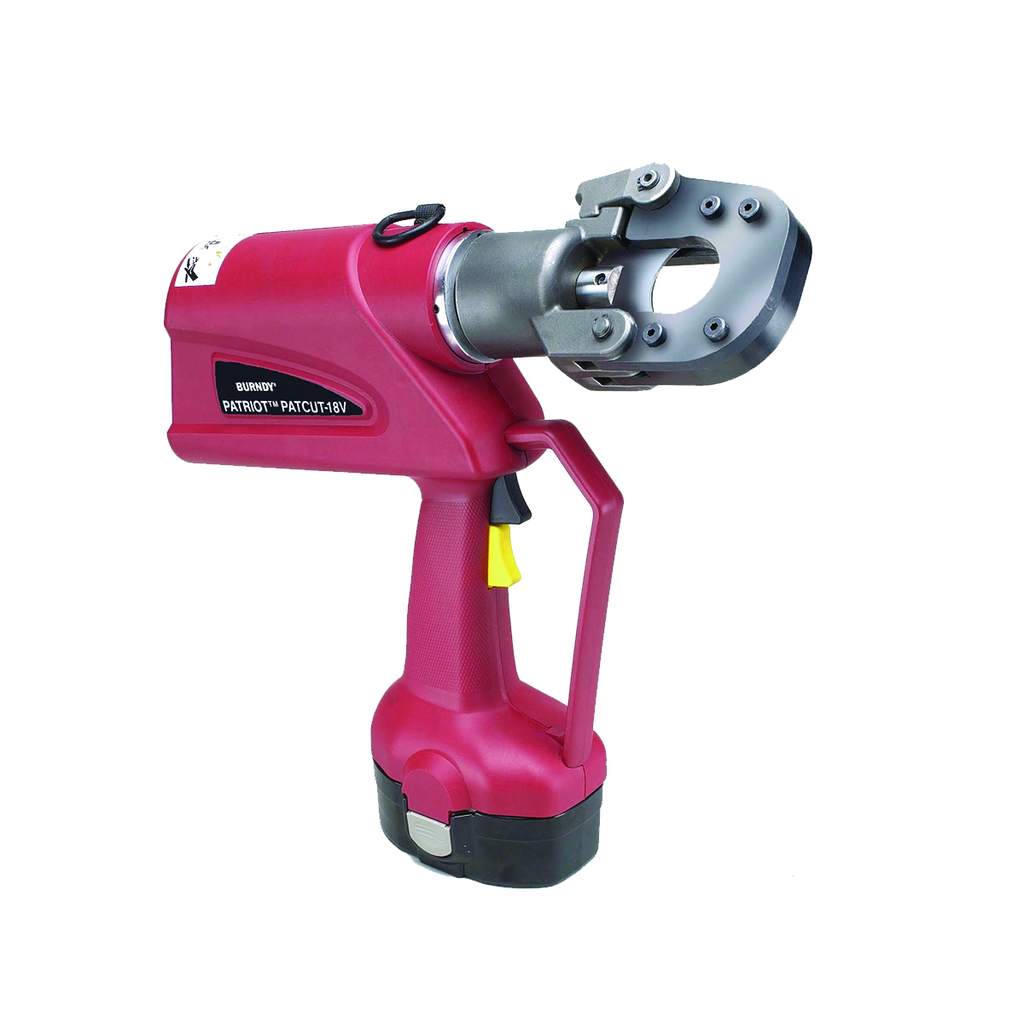

Item Long Description PATRIOT 7-Ton Latch Head, Battery Actuated Cutter, up to 1113 kcmil ACSR & 1.29" CU/AL, (2) 2.6Ah NiMH Batteries, 120V-AC Charger, Hard Case.
GTiN 00781810370803
Type Battery Actuated, Hydraulic Self Contained
Battery Type Nickel-Metal Hydride
Applications For Solid Cores, Steel Wire Braiding
Family Brand Name Burndy
Blade Dimensions 368.44 mm L
Sub Brand Patriot
Length 14.5 in
Width 3.7 in
Size 14.50 in x 3.70 in x 12.80 in
Height 12.80 in
Weight 12.0 lb
