BUR Q14F25X03D FEM DISC-16-14 AWG
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$64.62/c (100 ea)
Usually ships within 11 to 17 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # Q14F25X03D
North Coast Part # 672191

Features

  • Butted Seam, Chamfered Barrel Opening: Assures Quick And Easy Wire Insertion, Dimpled Female Socket Detent: Ensures Firm Grip, Mates with Type Q-M male disconnects, Size: 0.62 IN Overall Length X 0.17 IN Barrel Length X 0.29 IN Width, Installation Tool: MR20, Y10D Tool, Nema Tab Size: 0.25 X 032 IN

Specifications

  • Buy American Compliant: Yes
  • Conductor - Copper Str Size: 16 AWG;14 AWG
  • Conductor - Copper Str Size Range: 16 AWG-14 AWG
  • Country of Origin: TW
  • Dimension - Length Overall inch: 0.66 in
  • Dimension - Strip Length inch: 3/8 in
  • Dimension - Width inch: 0.250 in
  • Dimension - Width mm: 6 mm
  • Each - Height: .20 in
  • Each - Length: 0.66 in
  • Each - Width: 0.25 in
  • Feature - Barrel Style: Chamfered
  • Plated: Y
  • Plating Type: Tin
  • Product Type: Compression
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: CM
  • Trade Name: FINGRIP™
  • Application: For quickly connecting or disconnecting a terminal
  • Special Features: Features: Butted Seam, Chamfered Barrel Opening: Assures Quick And Easy Wire Insertion, Dimpled Female Socket Detent: Ensures Firm Grip, Mates with Type Q-M male disconnects, Size: 0.62 IN Overall Length X 0.17 IN Barrel Length X 0.29 IN Width, Installation Tool: MR20, Y10D Tool, Nema Tab Size: 0.25 X 032 IN
  • Sub Brand: FINGRIP
  • Type: Disconnect Connectors
  • IGS 3D Model Asset Reference URL 3: https://hubbellcdn.com/igs/Q14F25X03D_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 2: https://hubbellcdn.com/PDF3DFile/Q14F25X03D_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 1: https://hubbellcdn.com/step3dfile/Q14F25X03D_MODEL-STEP.zip

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181029336

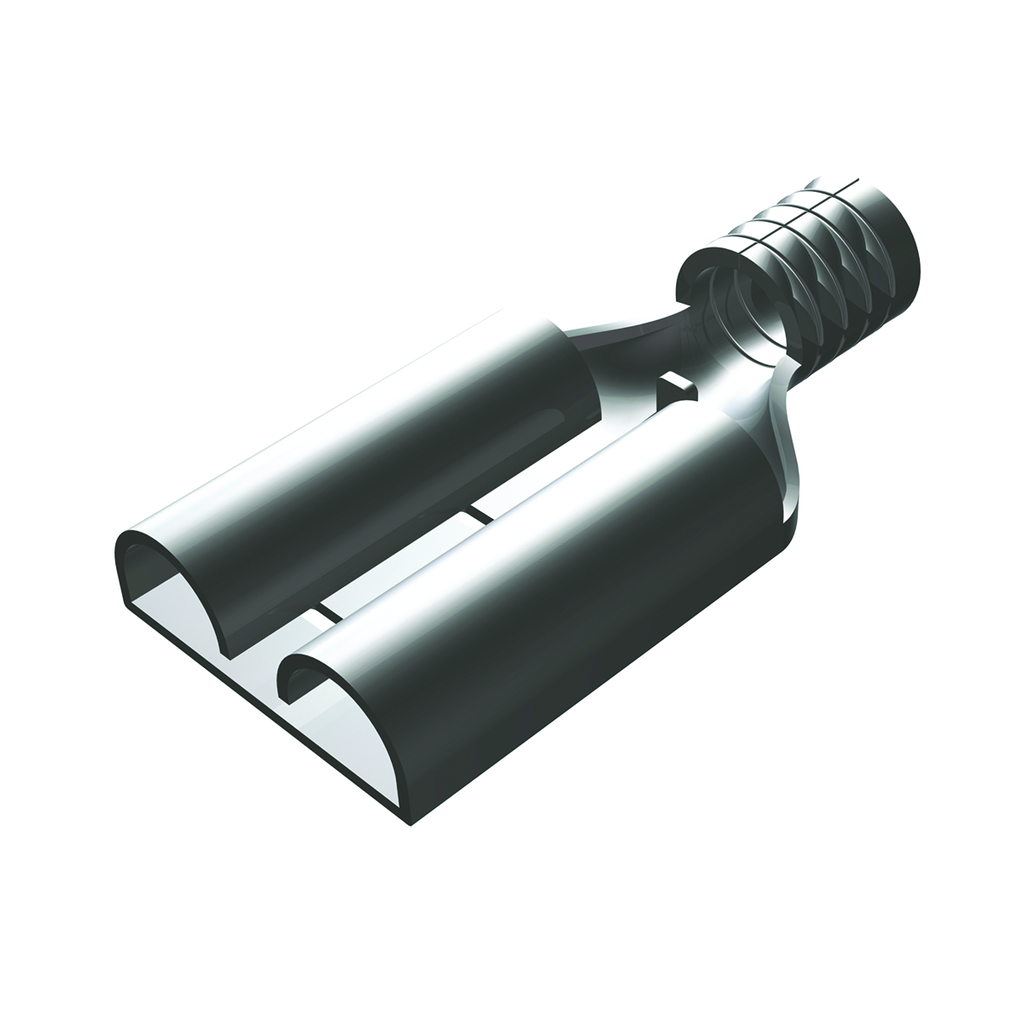

Item Long Description Brass Female Quick Disconnect, 16-14 AWG, Chamfered Barrel Opening, Tin Plated.
GTiN 00781810293362
Finish Tin Plated
Type Disconnect Connectors
Material Brass
Applications For quickly connecting or disconnecting a terminal
Wire Size 16-14 AWG
Family Brand Name Burndy
TC Connection Female
Sub Brand FINGRIP
Length 0.66 in
Width 0.250 in
Conductor Size 14 AWG
Connection Type Female Disconnect
Plating Type Tin
Plated? Yes
CSA No
