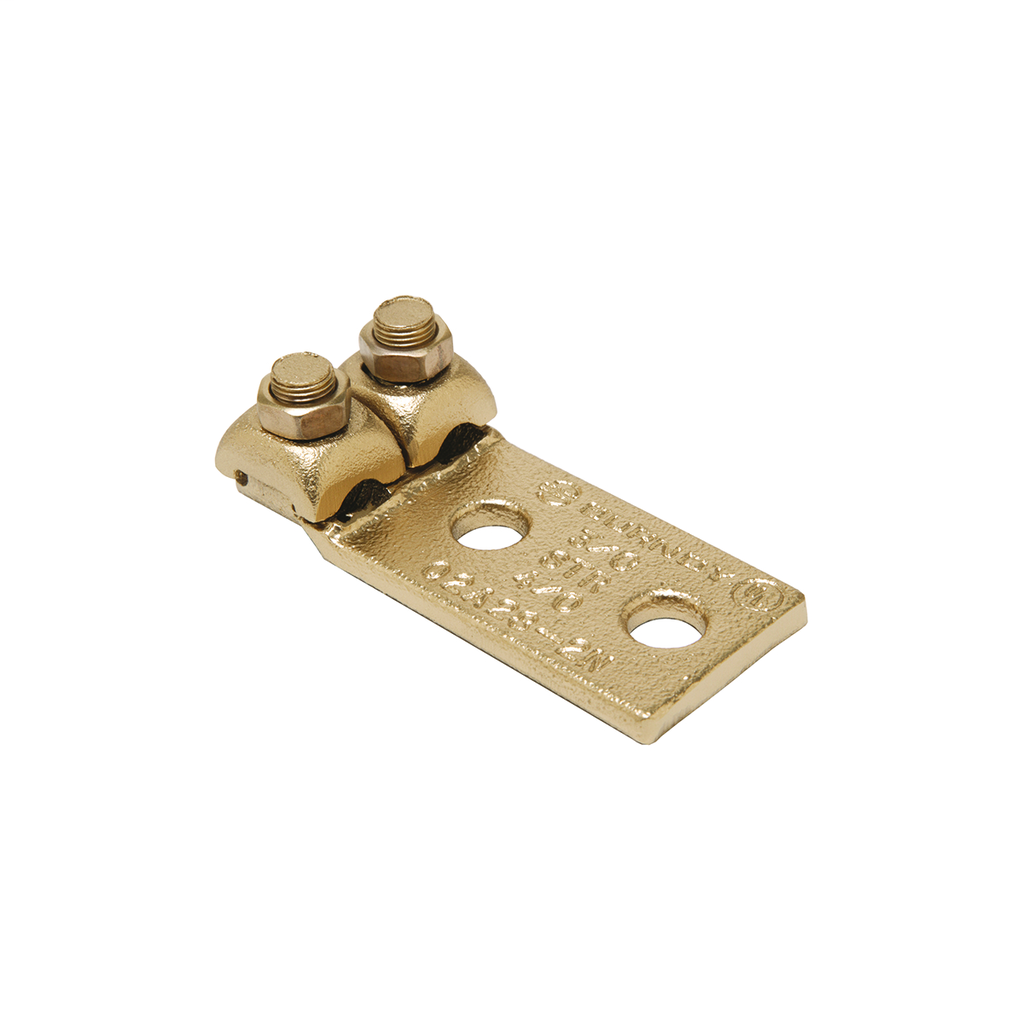

BUR Q2A314N 250-350 CU 2 COND 4 HO
Product image thumbnail 0
Product image thumbnail 1
$404.93/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # Q2A314N
North Coast Part # 598672

Specifications

General

  • Connector Type: Terminal
  • Installation Torque Recommended in-lb: 325 LBS/in
  • Material: Copper
  • Physical Attribute - Number of Holes: 4
  • Physical Attribute - Number of Screws: 2
  • Physical Attribute - Screw Type: Hexagonal Bolt
  • Plated: N
  • Plating Type: Unplated
  • Temperature Rating: 194
  • Trade Name: QIKLUGâ„¢
  • Type: Bolted Lugs & Terminals
  • UPC: 781810321805
  • UPC 12 Digit: 7818103218055

Dimensions

  • Dimension - B Length inch: 1.19 in
  • Dimension - D inch: 3.09 in
  • Dimension - F Width Center to Center inch: 0.75 in
  • Dimension - Height fraction: 1-11/16 in
  • Dimension - Height inch: 1.69 in
  • Dimension - Hole Size fraction: 9/16
  • Dimension - Hole Size inch: 0.56 in
  • Dimension - Hole Size mm: 14 mm
  • Dimension - L Length Overall mm: 114 mm
  • Dimension - Length Overall inch: 4.44 in
  • Dimension - N inch: 0.63 in
  • Dimension - Pad Width inch: 3.00 in
  • Dimension - Stud Size inch: 1/2
  • Dimension - Width inch: 3.00 in

Electrical Ratings

  • Rating - Minimum Voltage: 600

Conductor Related

  • Conductor - Copper Str Size: 250 kcmil;300 kcmil;350 kcmil
  • Conductor - Copper Str Size Range: 250 kcmil-350 kcmil
  • Conductor Type: CU C Str-Size

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Listed Direct Burial: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Industry Standard(s): UL468A-468B
  • Standards - Industry Standards Met: UL468A-468B
  • Standards - RoHS Compliance Status: EX
  • UL Listed: Yes

Overview

UPC 78181032180
GTiN 00781810321805
Finish Bare/Unplated
Material Copper
Number of Conductors 2
Conductor Size 250 - 350 kcmil
Applications For Joining of Copper Cable to Equipment Pads or Bars
Bolt Size 1/2 in
Temperature Rating 194
Family Brand Name Burndy
Conductor Type Stranded Copper
Blade Dimensions 4.44 in L x 1.69 in H x 5/16 in T
Mounting Hole Size 1-3/4 in
Sub Brand Qiklug
Length 4.44 in
Width 3.00 in
Hole Size 14 mm
Height 1.69 in
Connection Type Terminal
Plating Type Unplated
Plated? No
CSA No
