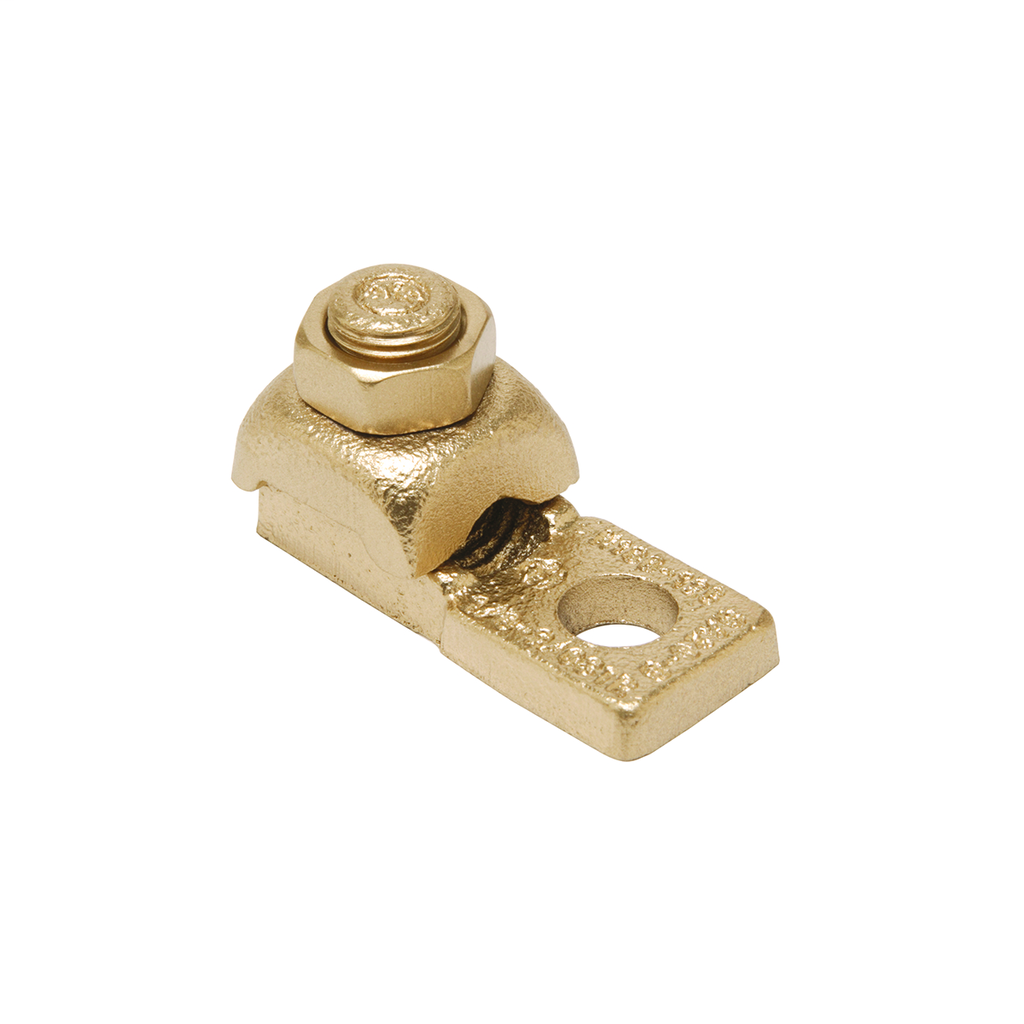

BUR QA31B 250-350 CU LUG 1BLT 1H
Product image thumbnail 0
Product image thumbnail 1
$160.35/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # QA31B
North Coast Part # 215779

Features

Features: Type QA Heavy Duty, Compact, High Copper Alloy Terminal For Joining A Wide Range Of Cable To Equipment Pads Or Bar, Fast One Wrench Installation, Dimension K: 17/32 IN, Number Of Clamping Elements: 1, Dimension D: 1-3/8 IN, Dimension N: 11/16 IN, Dimension T: 5/16 IN, Stud/bolt Hole Size: 1/2 IN, Tongue Width: 1-3/16 IN, Conductor Type: Run: Commercial Stranded Copper, Navy Copper, Length: 2-11/36 IN, Installation Torque: 325 IN-LB, Height: 1-11/16 IN

Specifications

  • Application: For Joining A Wide Range Of Copper Cable To Equipment Pads Or Bars
  • Connector Type: Terminal
  • Installation Torque Recommended in-lb: 325 LBS/in
  • Material: Copper
  • Physical Attribute - Number of Holes: 1
  • Physical Attribute - Number of Screws: 1
  • Physical Attribute - Screw Type: Hexagonal Bolt
  • Plated: N
  • Plating Type: Unplated
  • Sub Brand: QIKLUG
  • Temperature Rating: 194
  • Trade Name: QIKLUGâ„¢
  • Type: Bolted Lugs & Terminals
  • UPC: 781810315323
  • UPC 12 Digit: 7818103153233
  • Dimension - D inch: 1.38 in
  • Dimension - Height fraction: 1-11/16
  • Dimension - Height inch: 1.69 in
  • Dimension - Hole Size fraction: 17/32
  • Dimension - Hole Size inch: 0.53 in
  • Dimension - Hole Size mm: 13 mm
  • Dimension - L Length Overall mm: 59 mm
  • Dimension - Length Overall inch: 2.31 in
  • Dimension - N inch: 0.69 in
  • Dimension - Pad Width inch: 1.19 in
  • Dimension - Stud Size inch: 1/2
  • Rating - Minimum Voltage: 600
  • Conductor - Copper Str Navy Size: 250 (61) Navy;300 (91) Navy;350 (91) Navy
  • Conductor - Copper Str Navy Size Range: 250 (61) Navy-350 (91) Navy
  • Conductor - Copper Str Size: 250 kcmil;300 kcmil;350 kcmil
  • Conductor - Copper Str Size Range: 250 kcmil-350 kcmil

Conductor Type

  • CU C Str-Size
  • CU C Str Navy-Size
  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Industry Standard(s): UL468A-468B
  • Standards - Industry Standards Met: UL468A-468B
  • Standards - RoHS Compliance Status: EX
  • UL Listed: Yes

Overview

UPC 78181031532
GTiN 00781810315323
Finish Unplated
Type Heavy Duty
Material Copper
Number of Conductors 1
Conductor Size 250 - 350 kcmil
Applications For Joining a Wide Range of Copper Cable to Equipment Pads or Bars
Bolt Size 1/2 in
Temperature Rating 194
Family Brand Name Burndy
Conductor Type Copper
Blade Dimensions 2-11/36 in L x 1-11/16 in H
Mounting Hole Size 0.53 in
Sub Brand Qiklug
Length 2.31 in
Hole Size 13 mm
Height 1.69 in
Connection Type Terminal
Plating Type Unplated
Plated? No
CSA No
