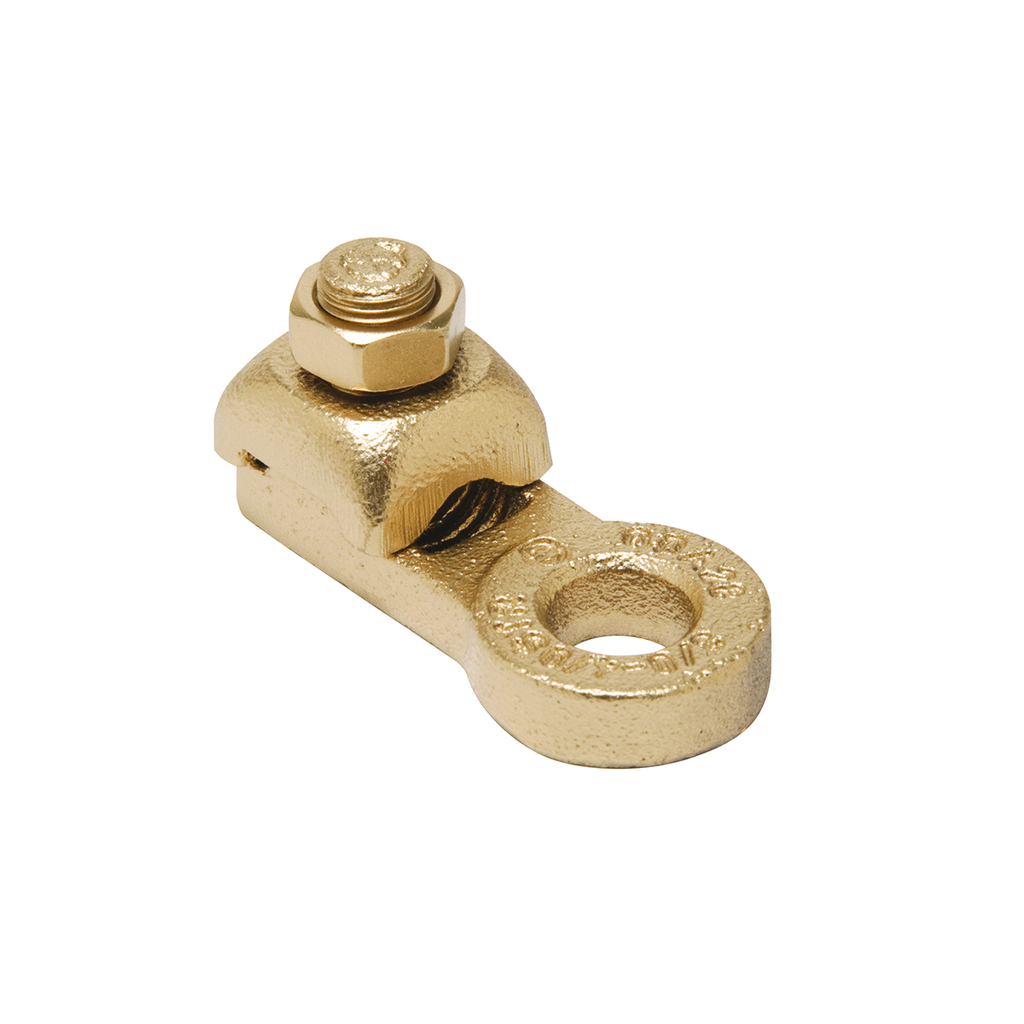

BUR QDA28 3/0 STR - 4/0 STR 1 HOLE
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$150.10/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # QDA28
North Coast Part # 11084

Features

  • Compact, High Copper Alloy Terminal For Joining A Wide Range Of Cable To Equipment Studs, Provides Low Contact Resistance When Gripped Between Two Contact Nuts, One Wrench Installation, Dimension K: 9/16 IN, Dimension T: 5/16 IN, Stud/bolt Hole Size: 1/2 IN, Tongue Width: 1-1/4 IN, Conductor Type: Run: Navy, Commercial Stranded Copper, Installation Torque: 250 IN-LB, Length: 2-5/8 IN, Height: 1-5/16 IN

Specifications

  • Buy American Compliant: Yes
  • Conductor - Copper Str Navy Size: 150 (61) Navy;200 (61) Navy
  • Conductor - Copper Str Navy Size Range: 150 (61) Navy-200 (61) Navy
  • Conductor - Copper Str Size: 3/0 AWG;4/0 AWG
  • Conductor - Copper Str Size Range: 3/0 AWG-4/0 AWG
  • Country of Origin: MX
  • Dimension - Height fraction: 1-5/16
  • Dimension - Height inch: 1.31 in
  • Dimension - Hole Size fraction: 9/16
  • Dimension - Hole Size inch: 0.56 in
  • Dimension - Hole Size mm: 14 mm
  • Dimension - L Length Overall mm: 67 mm
  • Dimension - Length Overall inch: 2.63 in
  • Dimension - Pad Width inch: 1.25 in
  • Dimension - Stud Size inch: 1/2
  • Dimension - Width inch: 1.25 in
  • Dimension - Width mm: 32 mm
  • Each - Height: 1.31 in
  • Each - Length: 2.63 in
  • Each - Width: 1.25 in
  • Industry Standard(s): UL 486A-486B
  • Installation Torque Recommended in-lb: 250 LBS/in
  • Physical Attribute - Number of Holes: 1
  • Physical Attribute - Number of Screws: 1
  • Physical Attribute - Screw Type: Hexagonal Bolt
  • Plated: N
  • Plating Type: Unplated
  • Product Type: Mechanical
  • Standards - Industry Standards Met: UL 486A-486B
  • Standards - RoHS Compliance Status: EX
  • Trade Name: QIKLUGâ„¢
  • Application: For Joining A Wide Range Of Copper Cable To Equipment Studs
  • Special Features: Features: Compact, High Copper Alloy Terminal For Joining A Wide Range Of Cable To Equipment Studs, Provides Low Contact Resistance When Gripped Between Two Contact Nuts, One Wrench Installation, Dimension K: 9/16 IN, Dimension T: 5/16 IN, Stud/bolt Hole Size: 1/2 IN, Tongue Width: 1-1/4 IN, Conductor Type: Run: Navy, Commercial Stranded Copper, Installation Torque: 250 IN-LB, Length: 2-5/8 IN, Height: 1-5/16 IN
  • Standard: UL 486A-486B
  • Sub Brand: QIKLUG
  • Type: Bolted Lugs & Terminals
  • IGS 3D Model Asset Reference URL 1: https://hubbellcdn.com/igs/QDA28_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 2: https://hubbellcdn.com/PDF3DFile/QDA28_MODEL-PDF.pdf
  • UL Listed: Yes
  • Conductor Type: CU C Str-Size;CU C Str Navy-Size
  • Connector Type: Terminal
  • Material: Copper

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

GTiN 00781810325322
Type Bolted Lugs & Terminals
Material Copper
Applications For Joining A Wide Range Of Copper Cable To Equipment Studs
Family Brand Name Burndy
Sub Brand QIKLUG
Product UPC 78181032532
Length 2.63 Inch
Width 1.25 in
Hole Size 14 mm
Conductor Size 3/0 AWG
Height 1.31 Inch
Connection Type Terminal
Plating Type Unplated
Plated? No
CSA No
Country of Origin Mexico
Overall Length 2.63 in
