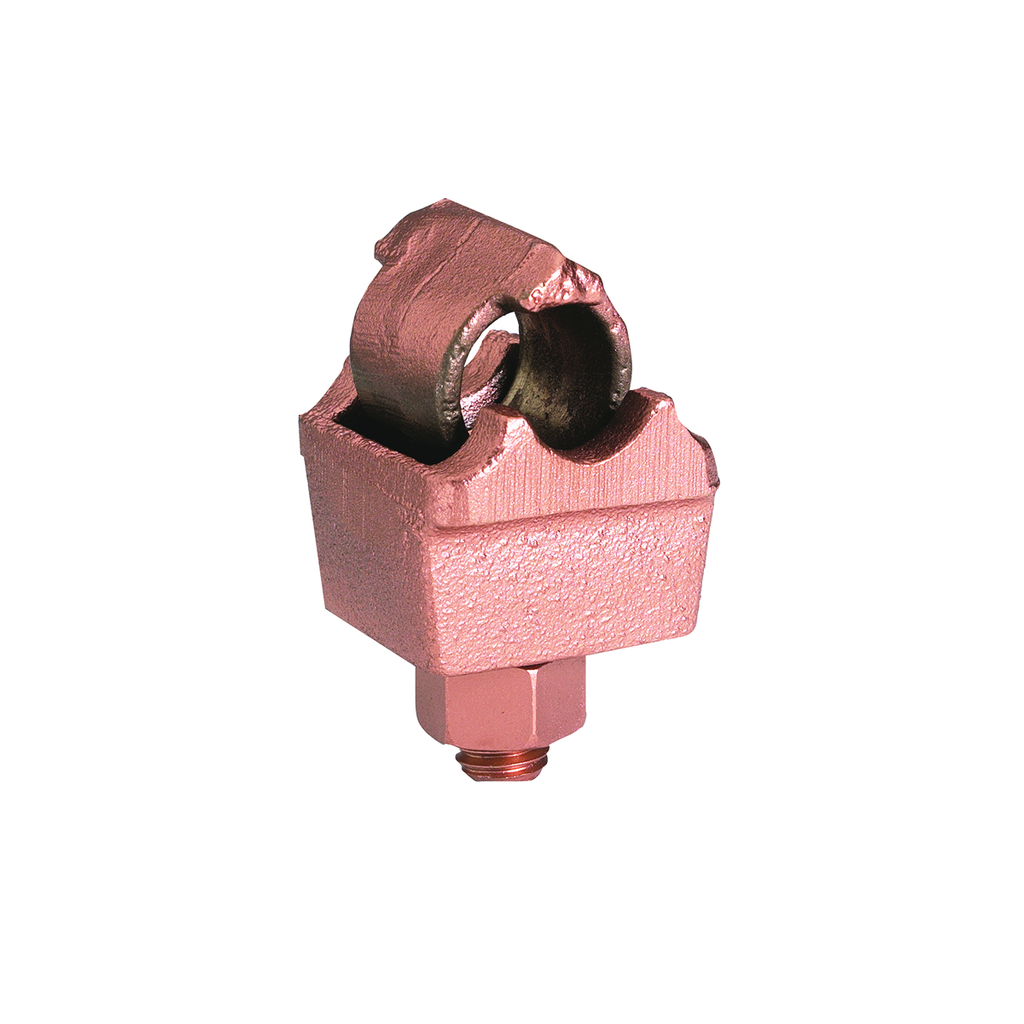

BUR QGFL29B1T6 6-250 CU TO FLAT,3 I
Product image thumbnail 0
Product image thumbnail 1
$17.36/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # QGFL29B1T6
North Coast Part # 153907

Features

  • High Copper Alloy BARTAP For Joining A Range Of Cable To Bar Or Pad, One-Wrench Installation, Can Be Installed Side By Side Or In Line On NEMA Drilled Bar, Wire Type: Copper, Conductor Clamping Hardware: 1/2 IN, Installation Torque: 480 IN-LB

Specifications

  • Conductor - Copper Str Size: #6 Str;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
  • Conductor - Copper Str Size Range: #6 Str-250 kcmil
  • Country of Origin: MX
  • Dimension - B Length fraction: 1-5/8 in
  • Dimension - B Length inch: 1.63 in
  • Dimension - Height fraction: 3-1/8 in
  • Dimension - Height inch: 3.13 in
  • Dimension - Width fraction: 1-3/8 in
  • Dimension - Width inch: 1.38 in
  • Dimension - Width mm: 35 mm
  • Each - Height: 3 in
  • Each - Length: 1.62 in
  • Each - Width: 1.38 in
  • Plated: N
  • Plating Type: Unplated
  • Product Type: Mechanical
  • Rating - KVA: 230 kV
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: EX
  • Trade Name: BARTAP™
  • Sub Brand: BARTAP
  • IGS 3D Model Asset Reference URL 3: https://hubbellcdn.com/igs/QGFL29B1T6_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 2: https://hubbellcdn.com/PDF3DFile/QGFL29B1T6_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 1: https://hubbellcdn.com/step3dfile/QGFL29B1T6_MODEL-STEP.zip

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Listed Direct Burial: Yes
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181000591
Item Long Description Bartap, 6 Str. - 250 kcmil, Cable To Flat.
GTiN 00781810005910
Size 3-1/8 IN Height X 3/4 IN Bar Thickness X 1-5/8 IN Dimension B X 1-3/8 IN Dimension W
Type QGFL
Material Copper Alloy
Applications Substation
Family Brand Name Burndy
Sub Brand BARTAP
Width 1.38 in
Thickness 3/4 in
Conductor Size 250 MCM
Height 3-1/8 in
Connection Type Bus Bar Clamp
Plating Type Unplated
Plated? No
Direct Burial? Yes
