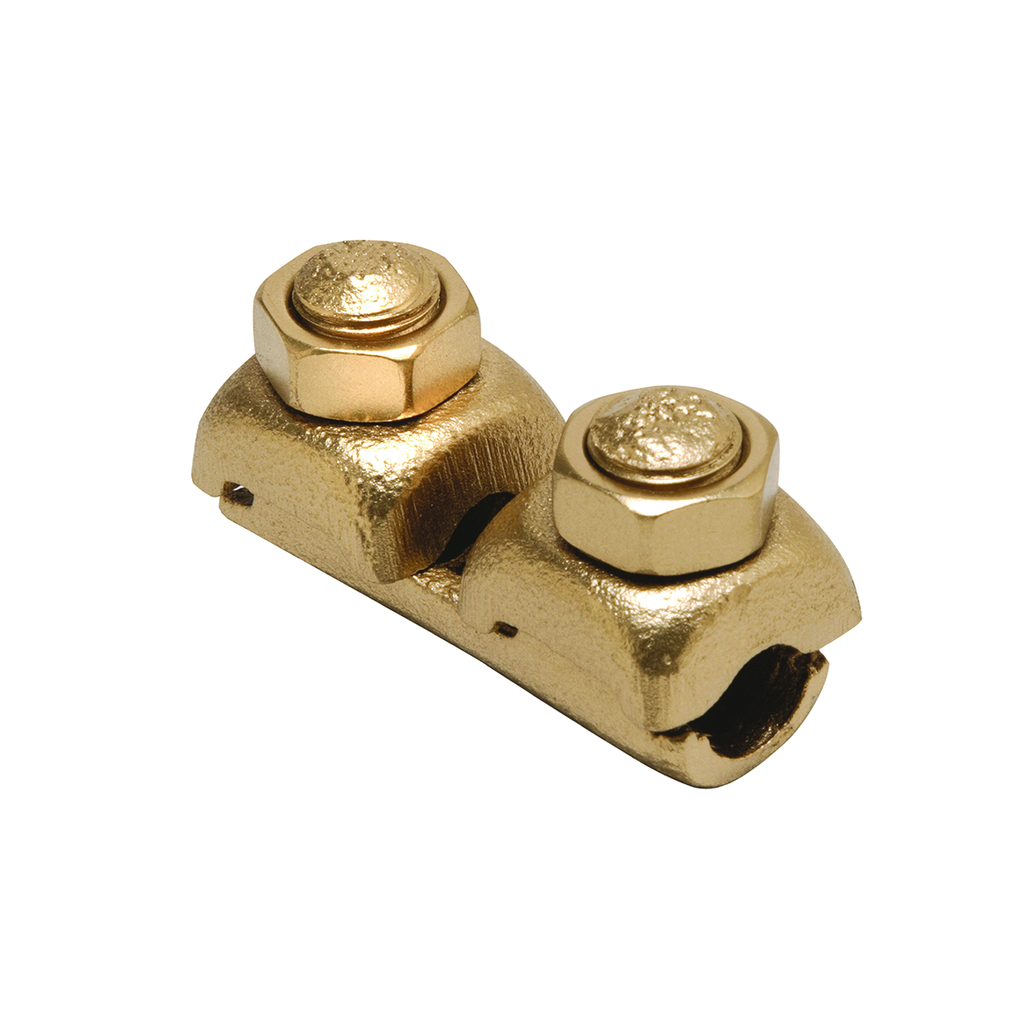

BUR QR1C 4-1 STR. CU. MECH. SPLIC
Product image thumbnail 0
Product image thumbnail 1
$59.35/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # QR1C
North Coast Part # 159789

Specifications

General

  • Application: For Joining A Range Of Copper Cable End To End
  • Connector Type: Splice;Reducer
  • Installation Torque Recommended in-lb: 150 LBS/in
  • Material: Copper Alloy
  • Physical Attribute - Number of Screws: 2
  • Physical Attribute - Screw Type: Hexagonal Bolt
  • Plated: N
  • Plating Type: Unplated
  • Sub Brand: QIKLUG
  • Trade Name: QIKLINKâ„¢
  • Type: QR
  • UPC: 781810334157

Dimensions

  • Dimension - B Length fraction: 7/8 in
  • Dimension - B Length inch: 0.88 in
  • Dimension - Height fraction: 1-1/16 in
  • Dimension - Height inch: 1.06 in
  • Dimension - L Length Overall mm: 49 mm
  • Dimension - Length Overall inch: 1.94 in
  • Dimension - Width fraction: 11/16 in
  • Dimension - Width inch: 0.69 in
  • Dimension - Width mm: 18 mm

Conductor Related

  • Conductor - Copper Solid Size A: 4 AWG;3 AWG;2 AWG;1 AWG
  • Conductor - Copper Solid Size A Range: 4 AWG-1 AWG
  • Conductor - Copper Solid Size B: 4 AWG;3 AWG;2 AWG;1 AWG
  • Conductor - Copper Solid Size B Range: 4 AWG-1 AWG
  • Conductor - Copper Str Size A: 4 AWG;3 AWG;2 AWG;1 AWG
  • Conductor - Copper Str Size A Range: 4 AWG-1 AWG
  • Conductor - Copper Str Size B: 4 AWG;3 AWG;2 AWG;1 AWG
  • Conductor - Copper Str Size B Range: 4 AWG-1 AWG

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Industry Standard(s): UL468A-468B
  • Standards - Industry Standards Met: UL468A-468B
  • Standards - RoHS Compliance Status: EX
  • UL Listed: Yes

Logistics

  • Minimum Pack Quantity: 1

Conductor Type

  • CU C Str-Size A
  • CU C Str-Size B
  • CU C Solid-Size A
  • CU C Solid-Size B

Overview

UPC 78181033415
GTiN 00781810334157
Size 1-1/16 IN Height X 11/16 IN Width X 1-15/16 IN Length
Type QR
Material Copper Alloy
Conductor Size Side A And B: 4 AWG Stranded - 1 AWG Stranded
Applications For Joining A Range Of Copper Cable End To End
Family Brand Name Burndy
Sub Brand QIKLUG
Length 1.94 in
Width 0.69 in
Height 1.06 in
Connection Type Splice;Reducer
Plating Type Unplated
Plated? No
CSA No
