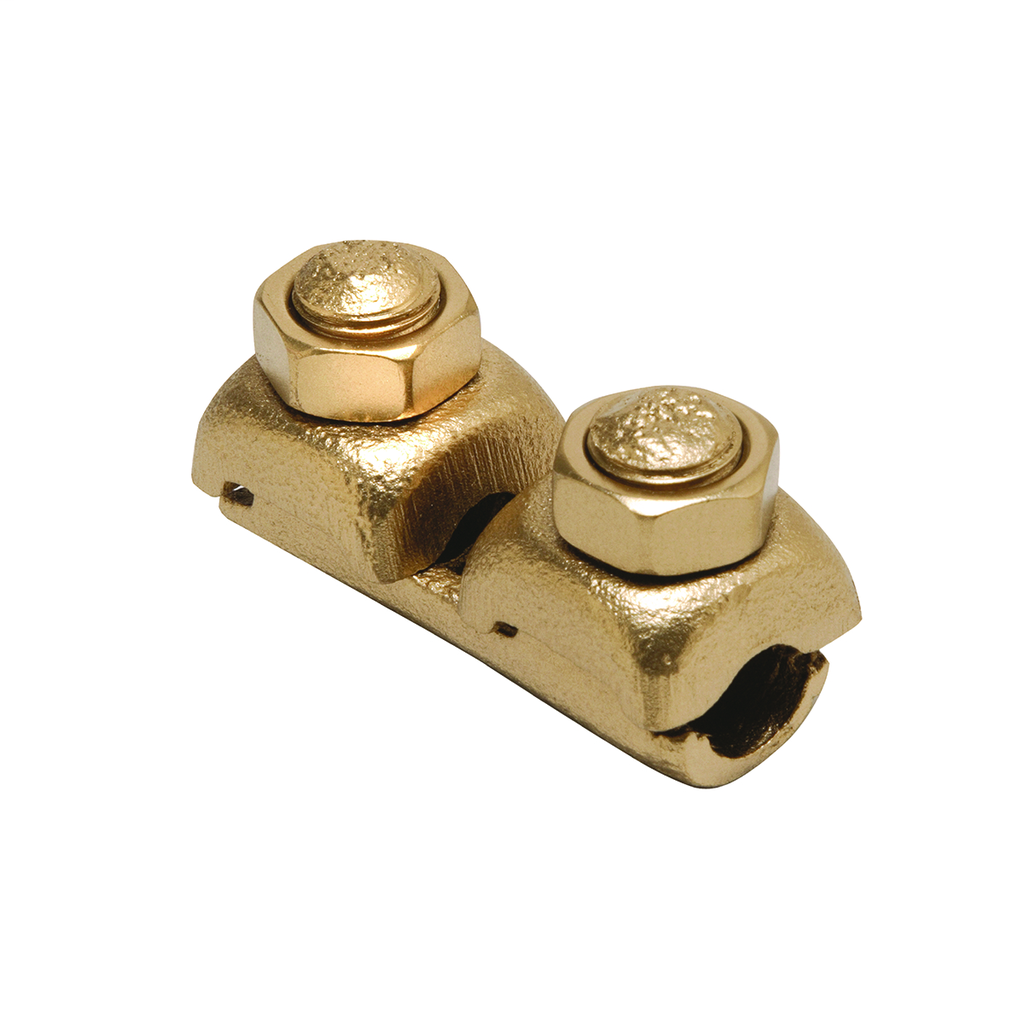

BUR QR26 1/0-2/0 STR. CU. MECH. S

Specifications

General

• Application: For Joining A Range Of Copper Cable End To End
• Connector Type: Splice;Reducer
• Installation Torque Recommended in-lb: 180 LBS/in
• Material: Copper Alloy
• Physical Attribute - Number of Screws: 2
• Physical Attribute - Screw Type: Hexagonal Bolt
• Plated: N
• Plating Type: Unplated
• Sub Brand: QIKLINK
• Trade Name: QIKLINK™
• Type: QR
• UPC: 781810334423

Dimensions

• Dimension - B Length fraction: 15/16 in
• Dimension - B Length inch: 0.94 in
• Dimension - Height fraction: 1-1/4 in
• Dimension - Height inch: 1.25 in
• Dimension - L Length Overall mm: 54 mm
• Dimension - Length Overall inch: 2.13 in
• Dimension - Width fraction: 13/16 in
• Dimension - Width inch: 0.81 in
• Dimension - Width mm: 21 mm

Conductor Related

• Conductor - Copper Solid Size A: 1/0 AWG;2/0 AWG
• Conductor - Copper Solid Size A Range: 1/0 AWG-2/0 AWG
• Conductor - Copper Solid Size B: 1/0 AWG;2/0 AWG
• Conductor - Copper Solid Size B Range: 1/0 AWG-2/0 AWG
• Conductor - Copper Str Size A: 1/0 ;2/0 AWG
• Conductor - Copper Str Size A Range: 1/0 -2/0 AWG
• Conductor - Copper Str Size B: 1/0 ;2/0 AWG
• Conductor - Copper Str Size B Range: 1/0 -2/0 AWG

Certifications and Compliance

• Certification - CSA Approved: No
• Certification - ETL: No
• Certification - UL Recognized: No
• Certification - cULus: No
• Industry Standard(s): UL468A-468B
• Standards - Industry Standards Met: UL468A-468B
• Standards - RoHS Compliance Status: EX
• UL Listed: Yes

Logistics

• Minimum Pack Quantity: 1

Conductor Type

• CU C Str-Size A
• CU C Str-Size B
• CU C Solid-Size A
• CU C Solid-Size B
