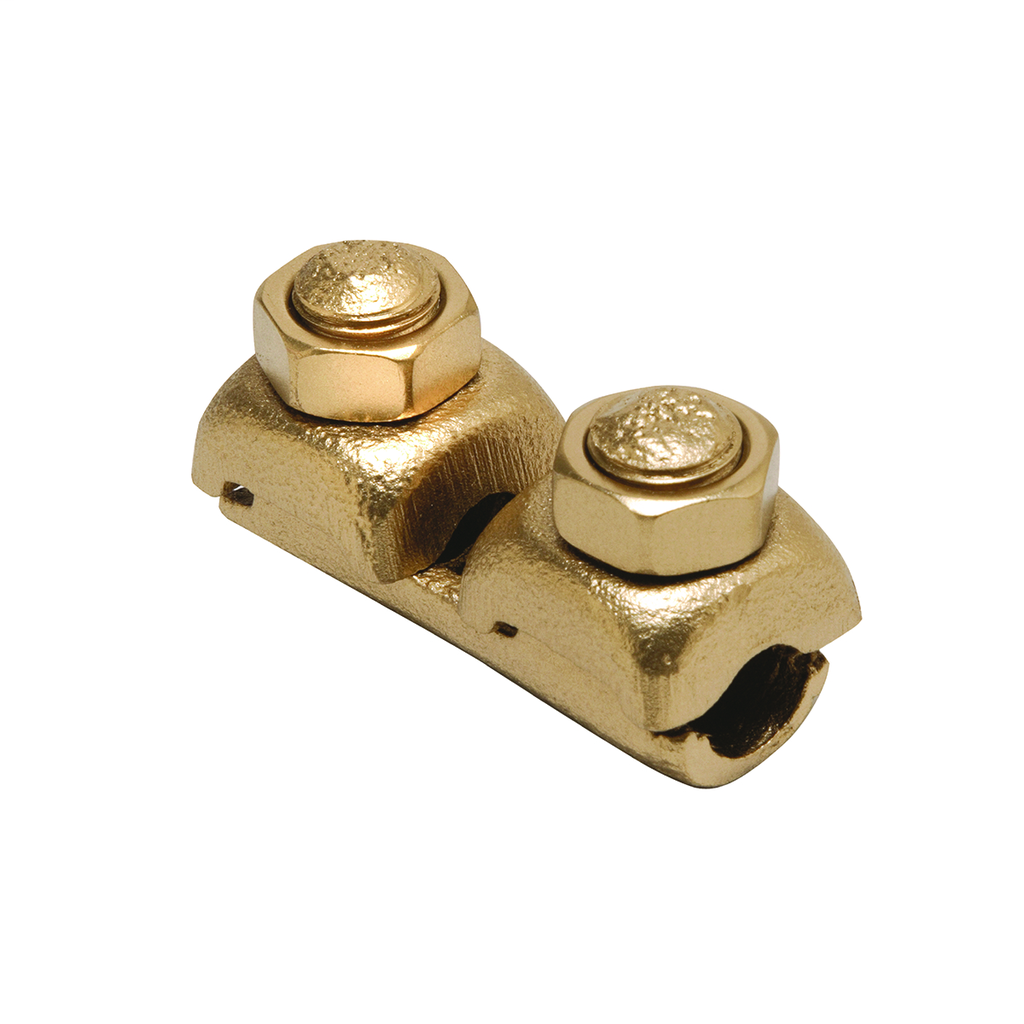

BUR QR31 250-350 KCMIL CU. MECH.
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$203.01/ea
Usually ships within 11 to 17 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # QR31
North Coast Part # 268487

Features

  • High Copper Alloy Splicer/Reducer For Joining A Range Of Cable End To End, Neat, Compact Easy To Tape Installation, One-Wrench Installation, Installation Torque: 325 IN-LB, Conductor Type: Copper

Specifications

  • Buy American Compliant: Yes
  • Conductor - Copper Str Size A: 250 kcmil;300 kcmil;350 kcmil
  • Conductor - Copper Str Size A Range: 250 kcmil-350 kcmil
  • Conductor - Copper Str Size B: 250 kcmil;300 kcmil;350 kcmil
  • Conductor - Copper Str Size B Range: 250 kcmil-350 kcmil
  • Country of Origin: US
  • Dimension - B Length fraction: 1-3/16 in
  • Dimension - B Length inch: 1.19 in
  • Dimension - Height fraction: 1-3/4 in
  • Dimension - Height inch: 1.75 in
  • Dimension - L Length Overall mm: 67 mm
  • Dimension - Length Overall inch: 2.63 in
  • Dimension - Width fraction: 1-1/4 in
  • Dimension - Width inch: 1.25 in
  • Dimension - Width mm: 32 mm
  • Each - Height: 1.69 in
  • Each - Length: 2.63 in
  • Each - Width: 1.25 in
  • Industry Standard(s): UL 486A-486B
  • Installation Torque Recommended in-lb: 325 LBS/in
  • Physical Attribute - Number of Screws: 2
  • Physical Attribute - Screw Type: Hexagonal Bolt
  • Plated: N
  • Plating Type: Unplated
  • Product Type: Mechanical
  • Show Add To ProjectList: Yes
  • Standards - Industry Standards Met: UL 486A-486B
  • Standards - RoHS Compliance Status: EX
  • Trade Name: QIKLINKâ„¢
  • Application: For Joining A Range Of Copper Cable End To End
  • Special Features: Features: High Copper Alloy Splicer/Reducer For Joining A Range Of Cable End To End, Neat, Compact Easy To Tape Installation, One-Wrench Installation, Installation Torque: 325 IN-LB, Conductor Type: Copper
  • Standard: UL 486A-486B
  • Sub Brand: QIKLINK
  • Type: QR

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181033460
Item Long Description QIKLINK Mechanical Splice or Reducer Connector; Accommodates: 250 - 350 kcmil Copper; 2-5/8" Length; 1-1/4" Width.
GTiN 00781810334607
Size 1-11/16 IN Height X 1-1/4 IN Width X 2-5/8 IN Length
Type QR
Material Copper Alloy
Conductor Size Side A And B: 250 - 350 KCMIL
Applications For Joining A Range Of Copper Cable End To End
Family Brand Name Burndy
Sub Brand QIKLINK
Length 2.63 in
Width 1.25 in
Height 1.75 in
Connection Type Splice;Reducer
Plating Type Unplated
Plated? No
CSA No
