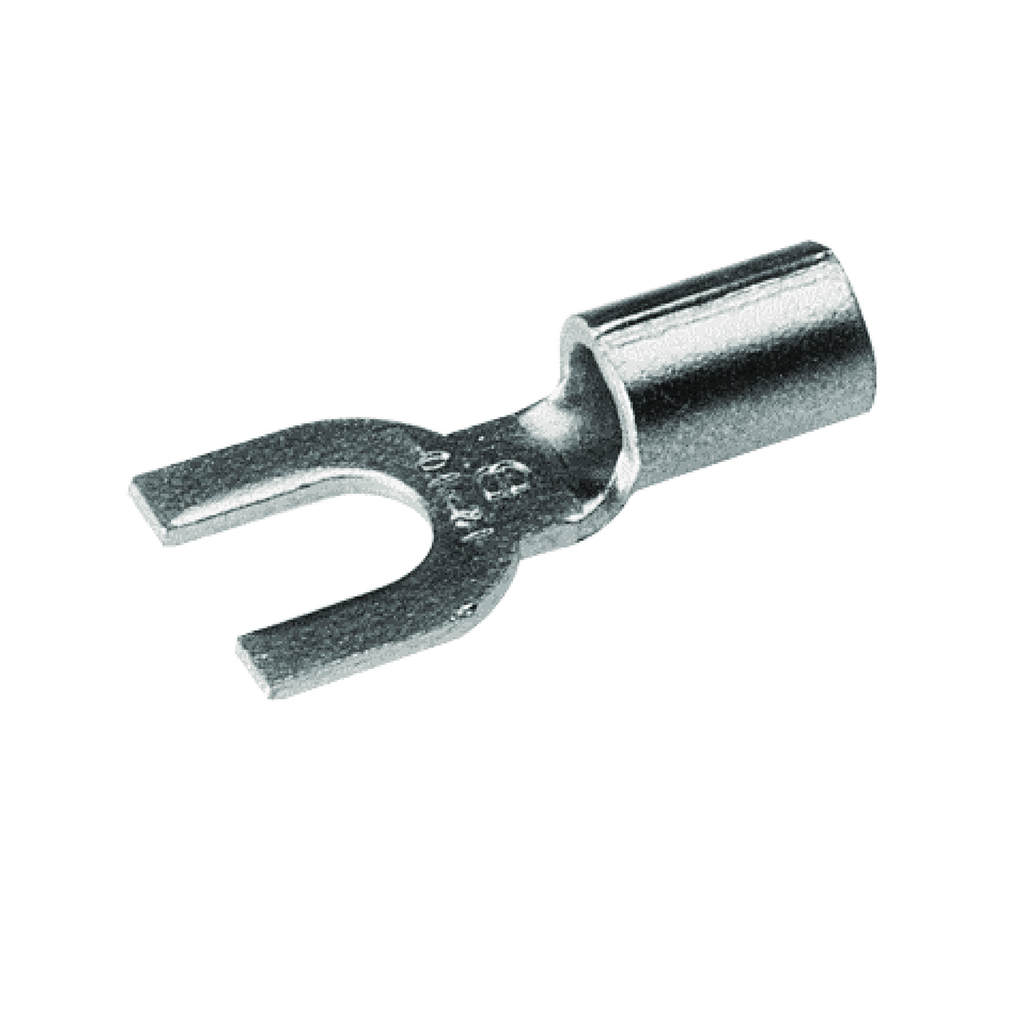

BUR T1410F FORK- 20- 14 AWG-UNIN,
Product image thumbnail 0
Product image thumbnail 1
$49.55/c (100 ea)
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # T1410F
North Coast Part # 159006

Features

Features: Type T-F Is Constructed In The Same Manner As The Type "T" And Employs A Fork Tongue, The Fork Permits Rapid Installation Of The Terminal Under A Screw Head Without Completely Removing The Screw, Two Or More Terminals May Be Stacked Easily On A Common Stud, Bulk Catalog Number: YAD14-10F, Wire Insulation Grip: No, Wire Strip Length: 9/32 IN, Finish: Electro-Tin Plated, Installation Tool: Non-Ratchet: Y10D, Y10-22 Tool, Ratchet: Y8MRB-1, MR20, MR8G98 Tool

Specifications

  • Application: For Control Wiring And Other Standard Duty Applications
  • Connector Type: Terminal - Fork
  • Feature - Barrel Style: Chamfered
  • Feature - Barrel Type: Long
  • Material: Copper
  • Physical Attribute - Tongue Type: Fork
  • Plated: Y
  • Plating Type: Tin
  • Sub Brand: HYLUG
  • Trade Name: HYLUG™
  • Type: T-F
  • UPC: 781810722428
  • UPC 12 Digit: 7818107224288
  • Dimension - B Length fraction: 13/50 in
  • Dimension - B Length inch: 0.26 in
  • Dimension - Diameter Max Size inch: 0.07 in
  • Dimension - L Length Overall mm: 19
  • Dimension - Length Overall inch: 0.73 in
  • Dimension - Pad Width inch: 0.37 in
  • Dimension - Strip Length inch: 9/32
  • Dimension - Stud Size inch: #8 - #10
  • Dimension - Z inch: 0.28 in
  • Conductor Range: #20 AWG to #14 AWG

Conductor Type

  • CU C Solid-Size
  • CU C Str-Size
  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Industry Standard(s): UL467
  • Standards - Industry Standards Met: UL467
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Overview

UPC 78181072242
GTiN 00781810722428
Type T-F
Stud Size 0.164-0.19 in
Applications For Control Wiring And Other Standard Duty Applications
Cable Size 20 - 14 AWG
Family Brand Name Burndy
Sub Brand HYLUG
Length 0.73 in
Material Copper
Connection Type Terminal - Fork
Plating Type Tin
Plated? Yes
CSA No
