Features

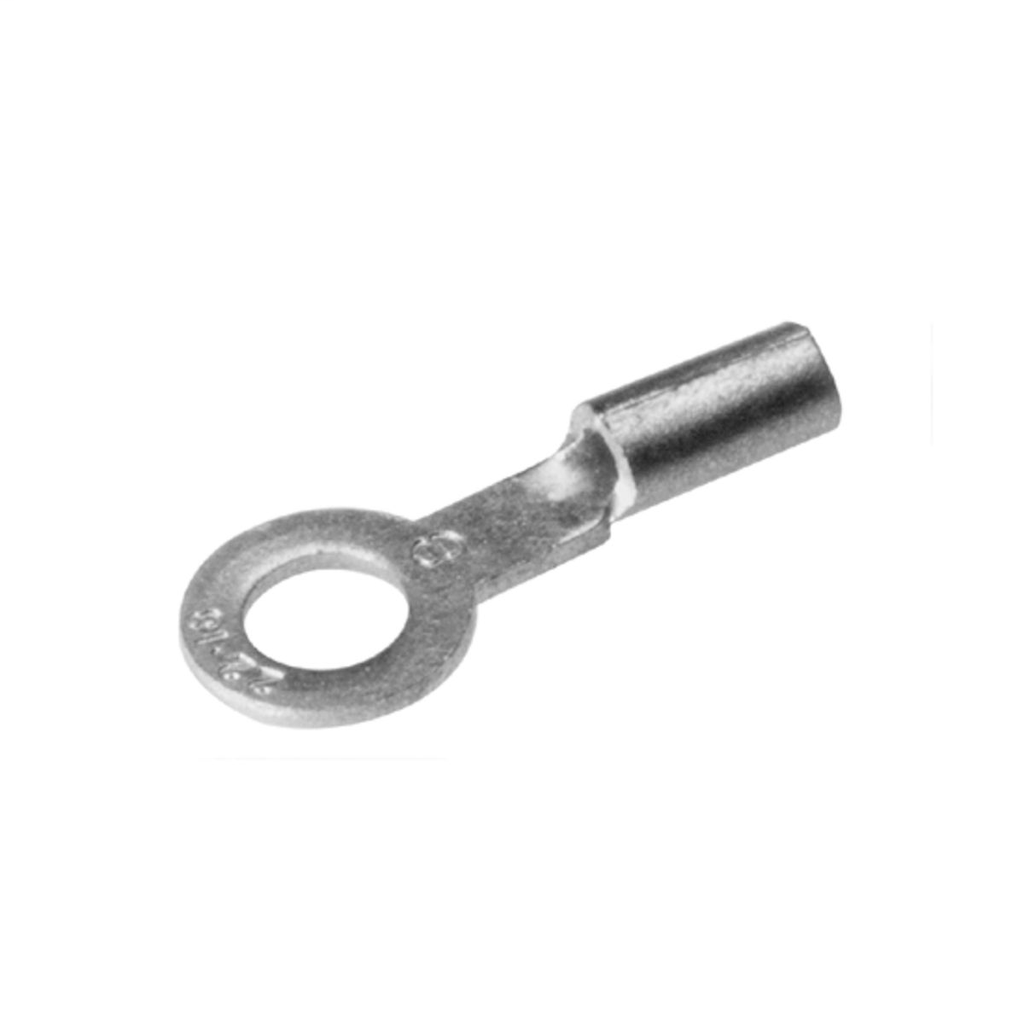

Features: The Type T Uninsulated Terminals Are Constructed Of Pure Electrolytic Copper, Designed With A Long Brazed Seam Barrel, Standard Neck, Deep V Groove Inner Serrations And Electro-Tin Plated, The Terminals Are Ideal For Control Wiring And Other Standard Duty Applications, The Ring Tongue Provides A Secure Termination Under The Screw Head That Cannot Be Removed Without The Complete Removal Of The Screw, Two Or More Terminals Can Easily Be Stacked On A Common Stud, Constructed Of Pure Electrolytic Copper: Provides Maximum Conductivity, Low Resistance And Ductility For Excellent Crimp Forming Properties, Long Brazed Seam Barrel And Deep V Groove Inner Serrations: Provides Optimum Conductivity Reliability And Holding Power After Crimping, Electro-Tin Plated: Provides Durable Long-Lasting Corrosion Resistance, Wire Range Is Clearly Marked On Terminal: Provides Easy Identification, Inspection Hole: Provides An Easy Visual Check Of Wire Insertion, Long Neck Terminal: Permits Easy Bending And Stacking Of Several Terminals On A Common Stud, Tape Mounted Catalog Number: YAD18-6M, Bulk Catalog Number: YAD18-6, Wire Insulation Grip: No, Wire Strip Length: 9/32 IN, Finish: Electro-Tin Plated, Installation Tool: Non-Ratchet: Y10D, Y10-22 Tool, Ratchet: Y8MRB-1, MR20, MR8G98 Tool
Specifications
- Application: For Control Wiring And Other Standard Duty Applications
- Connector Type: Compression Terminal
- Feature - Barrel Type: Long
- Material: Copper
- Physical Attribute - Number of Holes: 1
- Physical Attribute - Tongue Type: Ring
- Plated: Y
- Plating Type: Tin
- Sub Brand: HYLUG
- Trade Name: HYLUG™
- Type: Ring Tongue
- UPC: 781810723043
- UPC 12 Digit: 7818107230433
- Dimension - B Length fraction: 13/50 in
- Dimension - B Length inch: 0.26 in
- Dimension - Diameter Max Size inch: 0.06 in
- Dimension - Hole Size fraction: 1/7
- Dimension - Hole Size inch: 0.15 in
- Dimension - L Length Overall mm: 16
- Dimension - Length Overall inch: 0.64 in
- Dimension - Pad Width inch: 0.25 in
- Dimension - Strip Length inch: 9/32 in
- Dimension - Stud Size inch: #4 - #6
- Dimension - Z inch: 0.26 in
- Conductor Range: #22 AWG to #18 AWG
Conductor Type
- CU C Solid-Size
- CU C Str-Size
- Certification - CSA Approved: No
- Certification - ETL: No
- Certification - UL Recognized: No
- Certification - cULus: No
- Industry Standard(s): UL467
- Standards - Industry Standards Met: UL467
- Standards - RoHS Compliance Status: CM
- UL Listed: Yes
