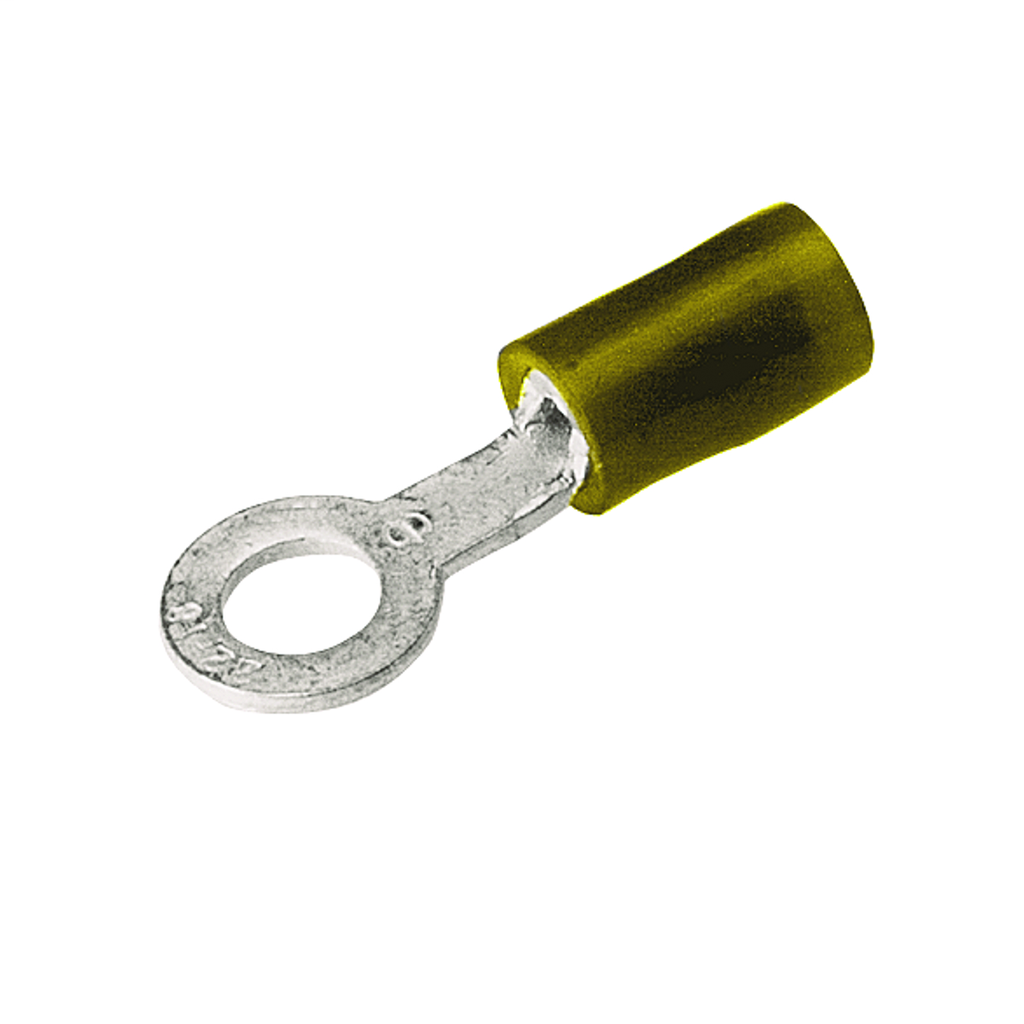

BUR TN1010 RING- 12- 10 AWG-NYLON,
Product image thumbnail 0
Product image thumbnail 1
$1.73/ea
Usually ships within 11 to 17 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # TN1010
North Coast Part # 151677

Specifications

General

  • Application: For Heavy Duty Industrial, Utility And Military Power And Control-Circuit Applications
  • Color Code: Yellow
  • Connector Type: Terminal
  • Feature - Barrel Style: Shrouded
  • Insulation: Y
  • Insulation Type: Nylon
  • Material: Copper
  • Military Specification: MS25036
  • Physical Attribute - Number of Holes: 1
  • Physical Attribute - Tongue Type: Ring
  • Plated: Y
  • Plating Type: Tin - Electro Plated
  • Sub Brand: INSULUG
  • Trade Name: INSULUG™
  • Type: Ring Tongue
  • UPC: 781810734162
  • UPC 12 Digit: 7818107341622

Dimensions

  • Cable Insulation Diameter Maximum: 0.21 in
  • Dimension - L Length Overall mm: 28 mm
  • Dimension - Length Overall inch: 1.12 in
  • Dimension - Pad Width inch: 0.37 in
  • Dimension - Strip Length inch: 11/32 in
  • Dimension - Stud Size inch: #8 - #10
  • Dimension - Z inch: 0.26 in

Electrical Ratings

  • Voltage - Maximum: 600 V

Conductor Related

  • Conductor Range: #12 AWG to #10 AWG

Certifications and Compliance

  • Certification - CSA Approved: Yes
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Industry Standard(s): UL486
  • Standards - Industry Standards Met: UL486
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Logistics

  • Carton Quantity: 600 EA
  • Minimum Pack Quantity: 50

Conductor Type

  • CU C Solid-Size
  • CU C Str-Size

Overview

UPC 78181073416
GTiN 00781810734162
Type Ring Tongue
Material Copper
Stud Size 0.164-0.19 in
Applications For Heavy Duty Industrial, Utility And Military Power And Control-Circuit Applications
Cable Size 12 - 10 AWG
Family Brand Name Burndy
Sub Brand INSULUG
Length 1.12 in
Insulation Type Nylon
Connection Type Terminal
Plating Type Tin - Electro Plated
Plated? Yes
CSA Yes
Max Voltage 600 V
Color Coding Yellow
