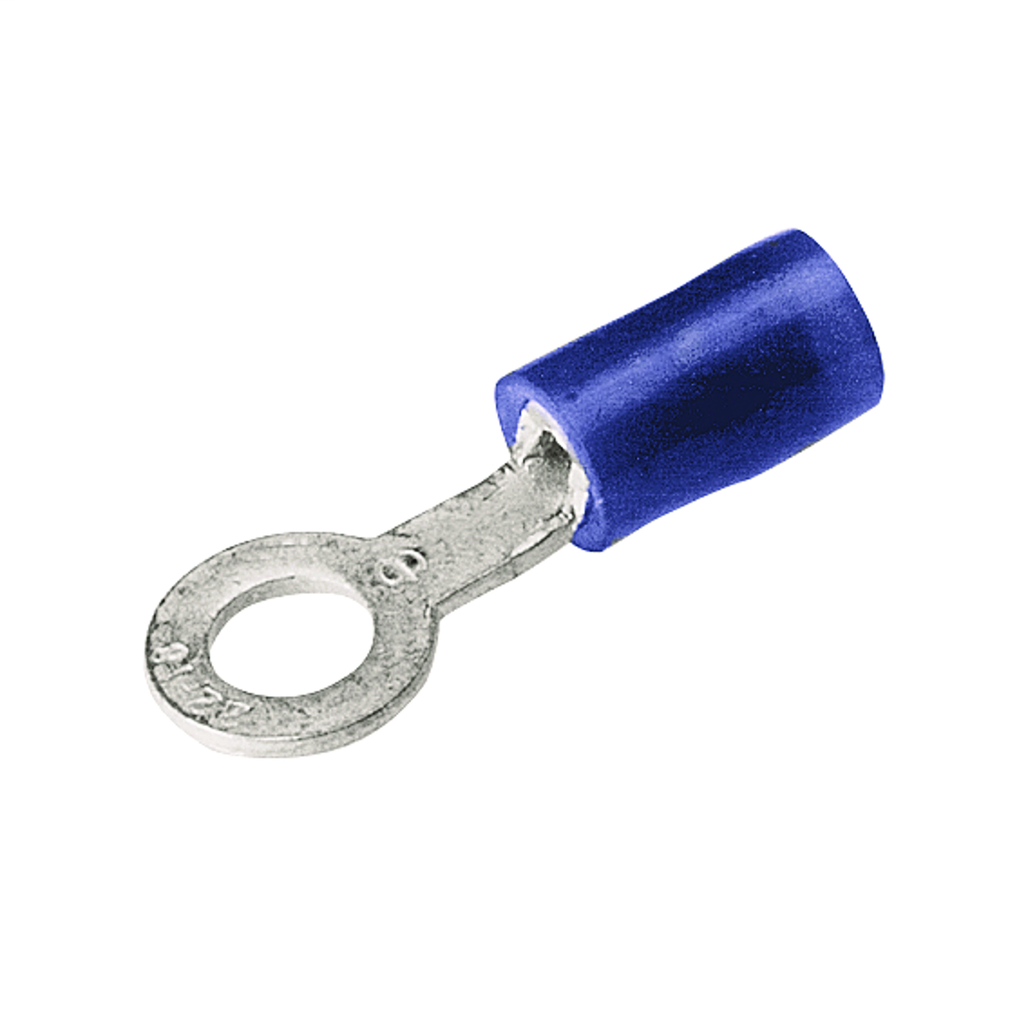

BUR TN1414 RING- 16- 14 AWG-NYLON,
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$124.74/c (100 ea)
Usually ships within 11 to 17 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # TN1414
North Coast Part # 155061

Features

  • INSULUG Type Tn Nylon-Insulated Terminals Are Designed For Heavy Duty Industrial, Utility And Military Power And Control-Circuit Applications For Wire Sizes 26 AWG Through 10 AWG, They Offer High Dielectric Strength And Stability In Oily Conditions And Meet Military Class 1 And Class 2 Requirements Per SAE AS25036 And The Requirements Of Military Specifications SAE-AS7928, 300 V Maximum, 105 DEG C Maximum, An Integral One-Piece Copper Barrel/Insulation Grip And Wire Strain Relief Design: Provides Improved Physical Strength Characteristics Over A Multi-Piece Design, Manufactured Of Pure Electrolytic Copper: Provides Maximum Conductivity, Low Resistance And Ductility For Excellent Crimp Forming Properties, Brazed Seam: Provides A Stronger Barrel Design To Minimize Any Possible Splitting And Eliminates Folding, Deep Inner Barrel Serrations: Provides Excellent Electrical Conductivity And Pullout Strength Values, Smooth Funnel Entry: Easy Wire Insertion, The Insulation Is Locked In Place: Will Not Twist Off, Thereby Maintains Proper Dielectric Values, Electro-Tin Plated: Provides Durable Long-Lasting Resistance To Corrosion, Color-Coded And Clearly Marked: Provides Quick, Easy Wire Size IdentifiCation, Ring Tongue: Provides A Secure Termination Under The Screw Head That Can Not Be Removed Without Complete Removal Of The Screw, Two Or More Terminals May Be Stacked On A Common Stud Easily: Provides Flexibility And Versatility, Sae-as25036: -154, Installation Tool: Non-Ratchet: Y10D, Y10-22 Tool, Ratchet: MR8-83 Tool, Temperature Rating: 105 DEG C Maximum, Insulation Diameter (maximum): 0.153 IN, Bulk Catalog Number: YAES14N54, Color Code: Blue, Wire Strip Length: 7/32 IN, Wire Insulation Grip: No, Finish: Electro-Tin Plated

Specifications

  • Buy American Compliant: Yes
  • Conductor - Copper Solid Size: 16 AWG;15 AWG;14 AWG
  • Conductor - Copper Solid Size Range: 16 AWG-14 AWG
  • Conductor - Copper Str Size: 16 AWG;14 AWG
  • Conductor - Copper Str Size Range: 16 AWG-14 AWG
  • Country of Origin: US
  • Dimension - L Length Overall mm: 27 mm
  • Dimension - Length Overall inch: 1.08 in
  • Dimension - Pad Width inch: 0.45 in
  • Dimension - Strip Length inch: 7/32
  • Dimension - Stud Size inch: #12;1/4
  • Dimension - Z inch: 0.43 in
  • Each - Height: .20 in
  • Each - Length: 1.08 in
  • Each - Width: 0.45 in
  • Industry Standard(s): UL486
  • Insulation Type: Nylon
  • Physical Attribute - Number of Holes: 1
  • Physical Attribute - Tongue Type: Ring
  • Plated: Y
  • Plating Type: Tin - Electro Plated
  • Product Type: Compression
  • Standards - Industry Standards Met: UL486
  • Standards - RoHS Compliance Status: CM
  • Trade Name: INSULUG™
  • Application: For Heavy Duty Industrial, Utility And Military Power And Control-Circuit Applications
  • Insulation: Y
  • Special Features: Features: INSULUG Type Tn Nylon-Insulated Terminals Are Designed For Heavy Duty Industrial, Utility And Military Power And Control-Circuit Applications For Wire Sizes 26 AWG Through 10 AWG, They Offer High Dielectric Strength And Stability In Oily Conditions And Meet Military Class 1 And Class 2 Requirements Per SAE AS25036 And The Requirements Of Military Specifications SAE-AS7928, 300 V Maximum, 105 DEG C Maximum, An Integral One-Piece Copper Barrel/Insulation Grip And Wire Strain Relief Design: Provides Improved Physical Strength Characteristics Over A Multi-Piece Design, Manufactured Of Pure Electrolytic Copper: Provides Maximum Conductivity, Low Resistance And Ductility For Excellent Crimp Forming Properties, Brazed Seam: Provides A Stronger Barrel Design To Minimize Any Possible Splitting And Eliminates Folding, Deep Inner Barrel Serrations: Provides Excellent Electrical Conductivity And Pullout Strength Values, Smooth Funnel Entry: Easy Wire Insertion, The Insulation Is Locked In Place: Will Not Twist Off, Thereby Maintains Proper Dielectric Values, Electro-Tin Plated: Provides Durable Long-Lasting Resistance To Corrosion, Color-Coded And Clearly Marked: Provides Quick, Easy Wire Size IdentifiCation, Ring Tongue: Provides A Secure Termination Under The Screw Head That Can Not Be Removed Without Complete Removal Of The Screw, Two Or More Terminals May Be Stacked On A Common Stud Easily: Provides Flexibility And Versatility, Sae-as25036: -154, Installation Tool: Non-Ratchet: Y10D, Y10-22 Tool, Ratchet: MR8-83 Tool, Temperature Rating: 105 DEG C Maximum, Insulation Diameter (maximum): 0.153 IN, Bulk Catalog Number: YAES14N54, Color Code: Blue, Wire Strip Length: 7/32 IN, Wire Insulation Grip: No, Finish: Electro-Tin Plated
  • Standard: UL486
  • Sub Brand: INSULUG
  • Type: Ring Tongue
  • IGS 3D Model Asset Reference URL 1: https://hubbellcdn.com/igs/TN1414_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 2: https://hubbellcdn.com/PDF3DFile/TN1414_MODEL-PDF.pdf

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

GTiN 00781810734605
Type Ring Tongue
Material Copper
Stud Size 0.216-0.25 in
Applications For Heavy Duty Industrial, Utility And Military Power And Control-Circuit Applications
Cable Size 16 - 14 AWG
Family Brand Name Burndy
Sub Brand INSULUG
Product UPC 78181073460
Length 1.08 Inch
Insulation Type Nylon
Conductor Size 14 AWG
Connection Type Terminal
Plating Type Tin - Electro Plated
Plated? Yes
CSA Yes
Max Voltage 600 V
Color Coding Blue
Width 0.45 in
Height .20 Inch
Country of Origin USA
Overall Length 1.08 in
