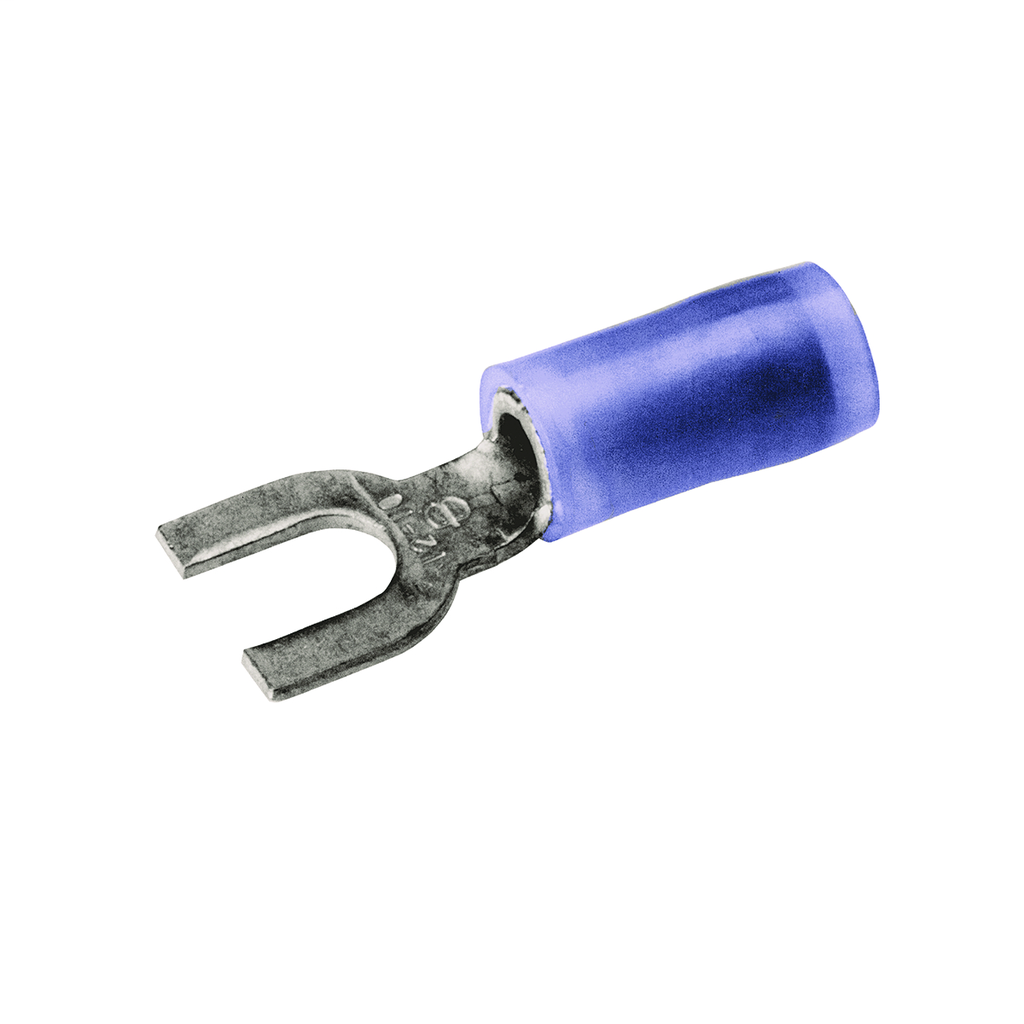

BUR TN146F FORK- 16- 14AWG-NYLON,
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$90.19/c (100 ea)
Usually ships within 11 to 17 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # TN146F
North Coast Part # 155629

Features

  • The Type TN-F, Nylon Insulated Fork Tongue Terminal Has The Same High Quality As The TN, It Is Designed To Meet The Heavy-Duty Requirements Of Industrial And Utility Applications, Used On Both Power And Control Circuits For Wire Sizes 26 AWG Through 10 AWG, The TN-F Provides High Dielectric Strength And Stability In Oily Conditions, The TN-F Is Identical To The Tn With The Addition Of A Fork Tongue Which Allows Installation Without Complete Removal Of Its Supporting Screw, 300 V Maximum, 105 DEG C Maximum, Fork Tongue: Provides Faster And Easier Installation By Permitting Insertion Under The Screw Head Without Completely Removing It, Temperature Rating: 105 DEG C Maximum, Insulation Diameter (maximum): 0.153 IN, Installation Tool: Non-Ratchet: Y10D, Y10-22 Tool, Ratchet: MR8-83, MR18 Tool, Bulk Catalog Number: YAES14N6F, Color Code: Blue, Wire Strip Length: 7/32 IN, Finish: Electro-Tin Plated, Wire Insulation Grip: No

Specifications

  • Buy American Compliant: Yes
  • Conductor - Copper Str Size: 16 AWG;14 AWG
  • Conductor - Copper Str Size Range: 16 AWG-14 AWG
  • Country of Origin: US
  • Dimension - L Length Overall mm: 20 mm
  • Dimension - Length Overall inch: 0.79 in
  • Dimension - Pad Width inch: 0.28 in
  • Dimension - Strip Length inch: 7/32
  • Dimension - Stud Size inch: #4;#5;#6
  • Dimension - Z inch: 0.24 in
  • Each - Height: .20 in
  • Each - Length: 0.79 in
  • Each - Width: 0.28 in
  • Feature - Barrel Style: Shrouded
  • Industry Standard(s): UL486
  • Insulation Type: Nylon
  • Physical Attribute - Tongue Type: Fork
  • Plated: Y
  • Plating Type: Tin
  • Product Type: Compression
  • Standards - Industry Standards Met: UL486
  • Standards - RoHS Compliance Status: CM
  • Trade Name: INSULUG™
  • Application: Power Connector
  • Insulation: Y
  • Special Features: Features: The Type TN-F, Nylon Insulated Fork Tongue Terminal Has The Same High Quality As The TN, It Is Designed To Meet The Heavy-Duty Requirements Of Industrial And Utility Applications, Used On Both Power And Control Circuits For Wire Sizes 26 AWG Through 10 AWG, The TN-F Provides High Dielectric Strength And Stability In Oily Conditions, The TN-F Is Identical To The Tn With The Addition Of A Fork Tongue Which Allows Installation Without Complete Removal Of Its Supporting Screw, 300 V Maximum, 105 DEG C Maximum, Fork Tongue: Provides Faster And Easier Installation By Permitting Insertion Under The Screw Head Without Completely Removing It, Temperature Rating: 105 DEG C Maximum, Insulation Diameter (maximum): 0.153 IN, Installation Tool: Non-Ratchet: Y10D, Y10-22 Tool, Ratchet: MR8-83, MR18 Tool, Bulk Catalog Number: YAES14N6F, Color Code: Blue, Wire Strip Length: 7/32 IN, Finish: Electro-Tin Plated, Wire Insulation Grip: No
  • Standard: UL486
  • Sub Brand: INSULUG
  • Type: TN-F

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

GTiN 00781810733127
Type TN-F
Stud Size 0.112-0.138 in
Applications Power Connector
Cable Size 16 - 14 AWG
Family Brand Name Burndy
Sub Brand INSULUG
Product UPC 78181073312
Length 0.79 Inch
Insulation Type Nylon
Material Copper
Conductor Size 14 AWG
Connection Type Terminal - Fork
Plating Type Tin
Conductor Type CU C Str-Size
Plated? Yes
CSA Yes
Max Voltage 600 V
Color Coding Blue
Width 0.28 in
Height .20 Inch
Country of Origin USA
Overall Length 0.79 in
