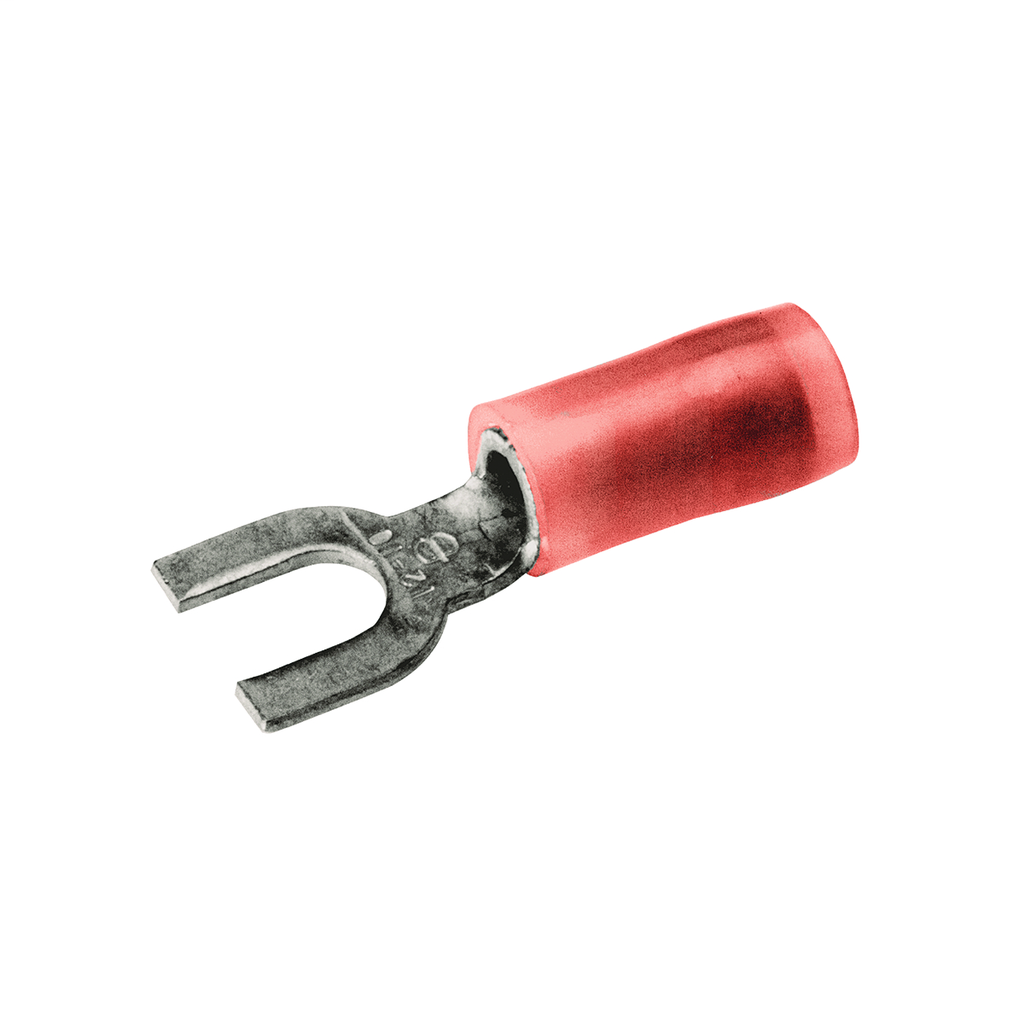

BUR TN202F FORK- 26- 20AWG-NYLON,
Product image thumbnail 0
Product image thumbnail 1
$0.81/ea
Usually ships within 11 to 17 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # TN202F
North Coast Part # 160146

Specifications

General

  • Application: Power Connector
  • Color Code: Amber
  • Connector Type: Terminal - Fork
  • Feature - Barrel Style: Shrouded
  • Insulation: Y
  • Insulation Type: Nylon
  • Material: Copper
  • Physical Attribute - Tongue Type: Fork
  • Plated: Y
  • Plating Type: Tin
  • Sub Brand: INSULUG
  • Trade Name: INSULUG™
  • Type: TN-F
  • UPC: 781810734919

Dimensions

  • Cable Insulation Diameter Maximum: 0.098 in
  • Dimension - L Length Overall mm: 19 mm
  • Dimension - Length Overall inch: 0.76 in
  • Dimension - Pad Width inch: 0.18 in
  • Dimension - Strip Length inch: 3/16
  • Dimension - Stud Size inch: #1;#2
  • Dimension - Z inch: 0.24 in

Electrical Ratings

  • Voltage - Maximum: 300 V

Conductor Related

  • Conductor - Copper Str Size: 20 AWG
  • Conductor - Copper Str Size Range: 20 AWG
  • Conductor Range: #20 AWG to #26 AWG
  • Conductor Type: CU C Str-Size

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: CM
  • UL Listed: No

Logistics

  • Carton Quantity: 1200 EA
  • Minimum Pack Quantity: 100

Overview

UPC 78181073491
GTiN 00781810734919
Type TN-F
Stud Size 0.073-0.086 in
Applications Power Connector
Cable Size 26 - 20 AWG
Family Brand Name Burndy
Sub Brand INSULUG
Length 0.76 in
Insulation Type Nylon
Material Copper
Conductor Size 20 AWG
Connection Type Terminal - Fork
Plating Type Tin
Conductor Type CU C Str-Size
Plated? Yes
CSA No
Max Voltage 300 V
Color Coding Amber
