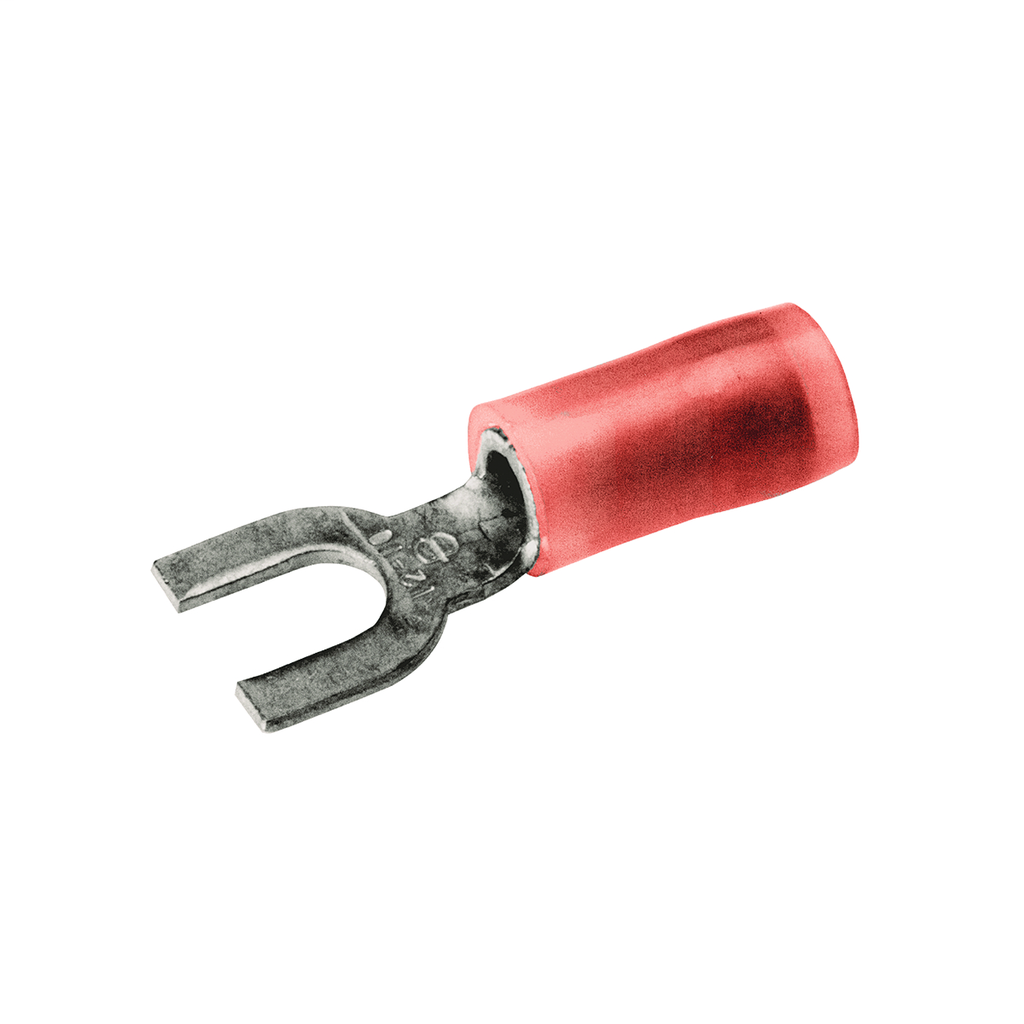

BUR TN206F FORK- 26- 20AWG-NYLON
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$0.91/ea
Usually ships within 11 to 17 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # TN206F
North Coast Part # 160441

Features

  • The Type TN-F, Nylon Insulated Fork Tongue Terminal Has The Same High Quality As The TN, It Is Designed To Meet The Heavy-Duty Requirements Of Industrial And Utility Applications, Used On Both Power And Control Circuits For Wire Sizes 26 AWG Through 10 AWG, The TN-F Provides High Dielectric Strength And Stability In Oily Conditions, The TN-F Is Identical To The Tn With The Addition Of A Fork Tongue Which Allows Installation Without Complete Removal Of Its Supporting Screw, 300 V Maximum, 105 DEG C Maximum, Fork Tongue: Provides Faster And Easier Installation By Permitting Insertion Under The Screw Head Without Completely Removing It, Temperature Rating: 105 DEG C Maximum, Insulation Diameter (maximum): 098 IN, Bulk Catalog Number: YAE22N66F, Installation Tool: M8ND Tool With N14HET-25V1 Die, Color Code: Amber, Wire Strip Length: 3/16 IN, Finish: Electro-Tin Plated, Wire Insulation Grip: No

Specifications

  • Buy American Compliant: Yes
  • Conductor - Copper Str Size: 20 AWG
  • Conductor - Copper Str Size Range: 20 AWG
  • Country of Origin: US
  • Dimension - L Length Overall mm: 20 mm
  • Dimension - Length Overall inch: 0.80 in
  • Dimension - Pad Width inch: 0.28 in
  • Dimension - Strip Length inch: 3/16
  • Dimension - Stud Size inch: #4;#5;#6
  • Dimension - Z inch: 0.28 in
  • Each - Height: .18 in
  • Each - Length: 0.80 in
  • Each - Width: 0.28 in
  • Feature - Barrel Style: Shrouded
  • Insulation Type: Nylon
  • Physical Attribute - Tongue Type: Fork
  • Plated: Y
  • Plating Type: Tin
  • Product Type: Compression
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: CM
  • Trade Name: INSULUG™
  • Application: Power Connector
  • Insulation: Y
  • Special Features: Features: The Type TN-F, Nylon Insulated Fork Tongue Terminal Has The Same High Quality As The TN, It Is Designed To Meet The Heavy-Duty Requirements Of Industrial And Utility Applications, Used On Both Power And Control Circuits For Wire Sizes 26 AWG Through 10 AWG, The TN-F Provides High Dielectric Strength And Stability In Oily Conditions, The TN-F Is Identical To The Tn With The Addition Of A Fork Tongue Which Allows Installation Without Complete Removal Of Its Supporting Screw, 300 V Maximum, 105 DEG C Maximum, Fork Tongue: Provides Faster And Easier Installation By Permitting Insertion Under The Screw Head Without Completely Removing It, Temperature Rating: 105 DEG C Maximum, Insulation Diameter (maximum): 098 IN, Bulk Catalog Number: YAE22N66F, Installation Tool: M8ND Tool With N14HET-25V1 Die, Color Code: Amber, Wire Strip Length: 3/16 IN, Finish: Electro-Tin Plated, Wire Insulation Grip: No
  • Sub Brand: INSULUG
  • Type: TN-F

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181073495
Item Long Description Fork Tongue Terminal, #26-#20 AWG, 4-6, Nylon Insulated, Electro Tin Plated.
GTiN 00781810734957
Type TN-F
Stud Size 0.112-0.138 in
Applications Power Connector
Cable Size 26 - 20 AWG
Family Brand Name Burndy
Sub Brand INSULUG
Length 0.80 in
Insulation Type Nylon
Material Copper
Conductor Size 20 AWG
Connection Type Terminal - Fork
Plating Type Tin
Conductor Type CU C Str-Size
Plated? Yes
CSA No
Max Voltage 300 V
Color Coding Amber
